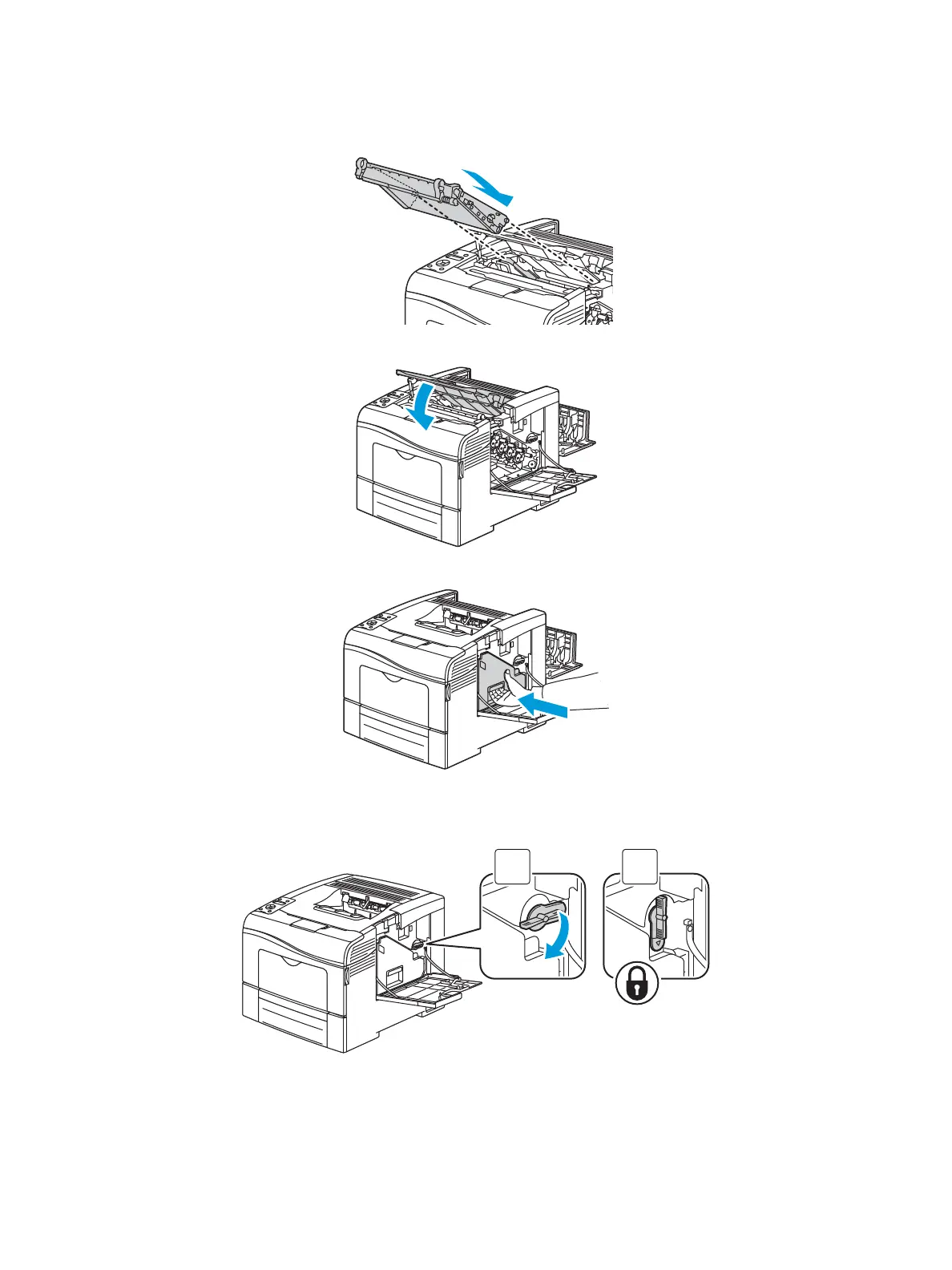

11. Reinsert the belt unit into the printer.
12. Close the top cover.
13. Reinsert the waste cartridge.
Note: If the waste cartridge does not fit into place properly, ensure that the belt is inserted fully.
14. To lock the waste cartridge, turn the waste cartridge lock lever 90-degrees clockwise.
1 2
