Xerox WorkCentre 6605

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-59
Functional Configuration

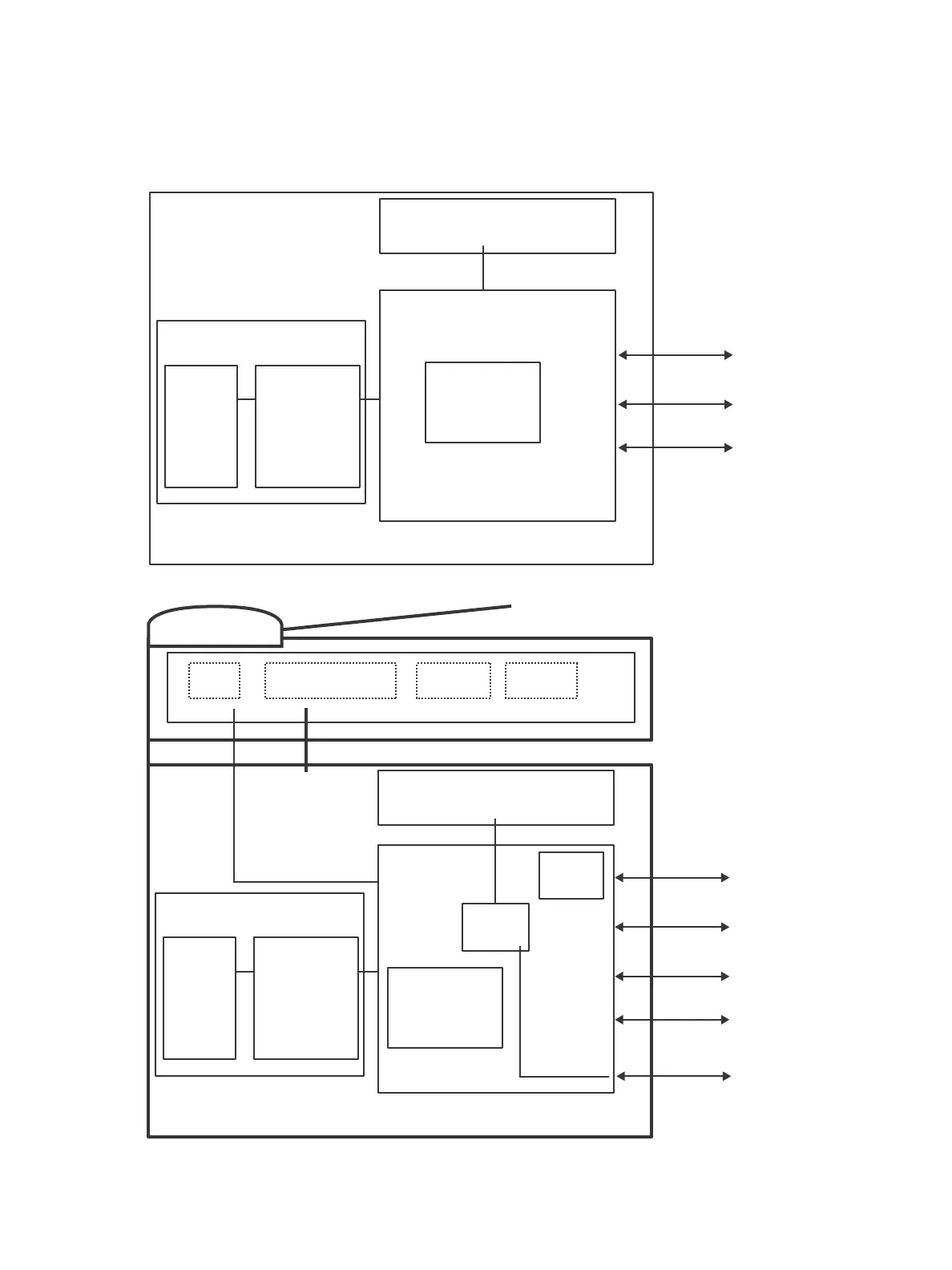

Functional configurations of the Phaser 6600 and WorkCentre 6605 printers are shown below.
Network
USB2.0
Wireless Network (Option)
Option
0HPRU\
+''
SFP Controller
Control Panel
>[3L[HO%LWPDS3DQHO@
Engine
IOT
Laser
Unit
0&8%RDUG
s6600-243
SFP
USB-
HUB
NCU
CCD LED Sensor Motor
IIT (Scanner)
DADF
Network (Rear)
USB2.0 (Rear)
Wireless Network (Option)
USB host 2.0 (Front)
(For USB Memory)
Option
0HPRU\
+''
MFP Controller
Control Panel
[4.3 inch Touch Panel]
Engine
IOT
PSTN/PBX
s6600-238
Laser
Unit
MCU Board
MFP
