Azbil C7G User Manual

4-38
Chapter 4. Functions

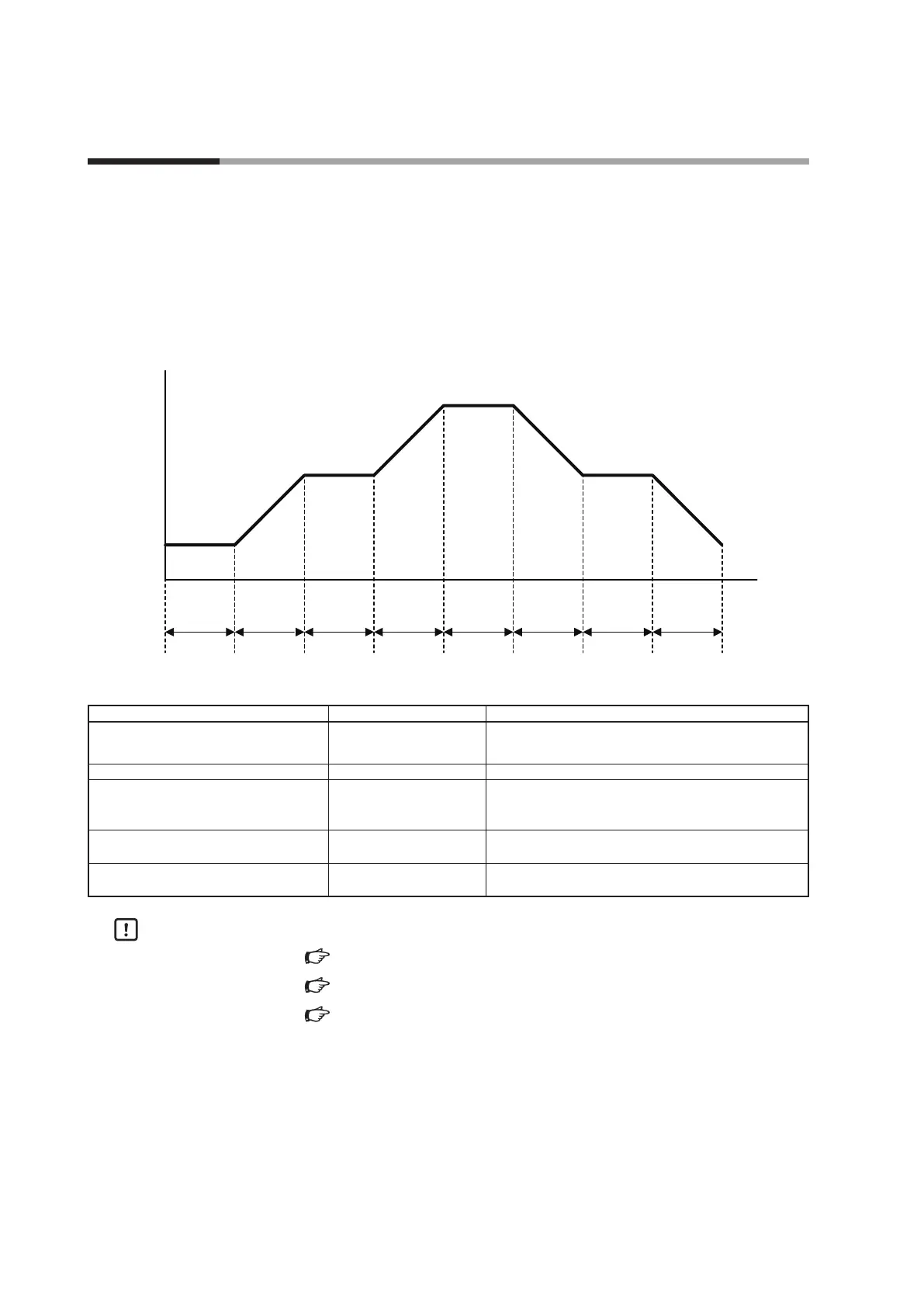

Pattern operations in which the SP changes over time, as shown in the figure, are available.
A pattern consists of multiple segments, and each segment is determined by the specified SP and time. For each
segment, a PID group number, G.SOAK (guaranteed soak), and a segment event can also be set.
The same pattern can be shared among all loops (up to four loops). The pattern numbers selected for each loop can
be the same or different. Although each loop can be operated independently, it is also possible to synchronize their
operation using DI functions or logical operations.
SP
Time
Segment1 Segment2 Segment3 Segment4 Segment5 Segment6 Segment7 Segment8
Pattern operation has the following settings.
Range Bank name Item name
Common to all patterns and loops None
(Set with SLP-C7)
Number of patterns
Common to all patterns and loops Basic action Time unit for patterns
Each loop PatternConfig Pattern start number, pattern start number low limit,
pattern start number high limit, pattern SP increase
change limit, pattern SP decrease change limit
Each pattern Pattern Number of segments, G.SOAK time, PV start, Cycle,
Pattern link, End of operation
Each segment Segment SP, Time, PID Group, G.SOAK type, G.SOAK width,
Segment event
Handling Precautions
• 1 - 6 Operation Modes (p.1-23)
• 4 - 8 DI (Digital Input) (p.4-49)
• Pattern start number (p.4-46)
• If the version of the MAIN block firmware is earlier than 6.x.x (where x stands
for any number), the pattern operation function is not available.
• States such as the RUN-HOLD mode, RUN-END mode, cycle, and pattern link
are not maintained if a power failure occurs. When the power is restored, the
device starts operation in the RUN mode from segment 1 of the pattern start
number. If PV start is set to enabled, PV start is executed at this point. The
READY mode is maintained even when a power failure occurs.
• For control loops on either the master or the slave side of the internal cascade,
only the constant value operation mode is available, so the mode cannot be
switched to pattern operation.
4 - 7 Pattern Operation
