9-15
Chapter 9. User-defined Addresses
A data address for communication for pattern and segment settings can be defined for this device. Although the data
address is provided only for one pattern, communication access (reading and writing) is available for all patterns,
since the pattern number can be specified.

Data address overview
• 2,000 continuous data addresses are provided for pattern and segment settings.
The first 1,000 are in the RAM area, and the other 1,000 are in the normal area.
• Normal memory area and RAM area (p.9-4)
• The pattern start address can be set. The addresses of the data following the
pattern start address are determined automatically by the offset from the start
address.
• The setting range for the pattern start address is from 0 to 48000. However, if 0 is
set, communication access to the pattern data cannot be made.
• To set the pattern start address, use the SLP-C7 Smart Loader Package.

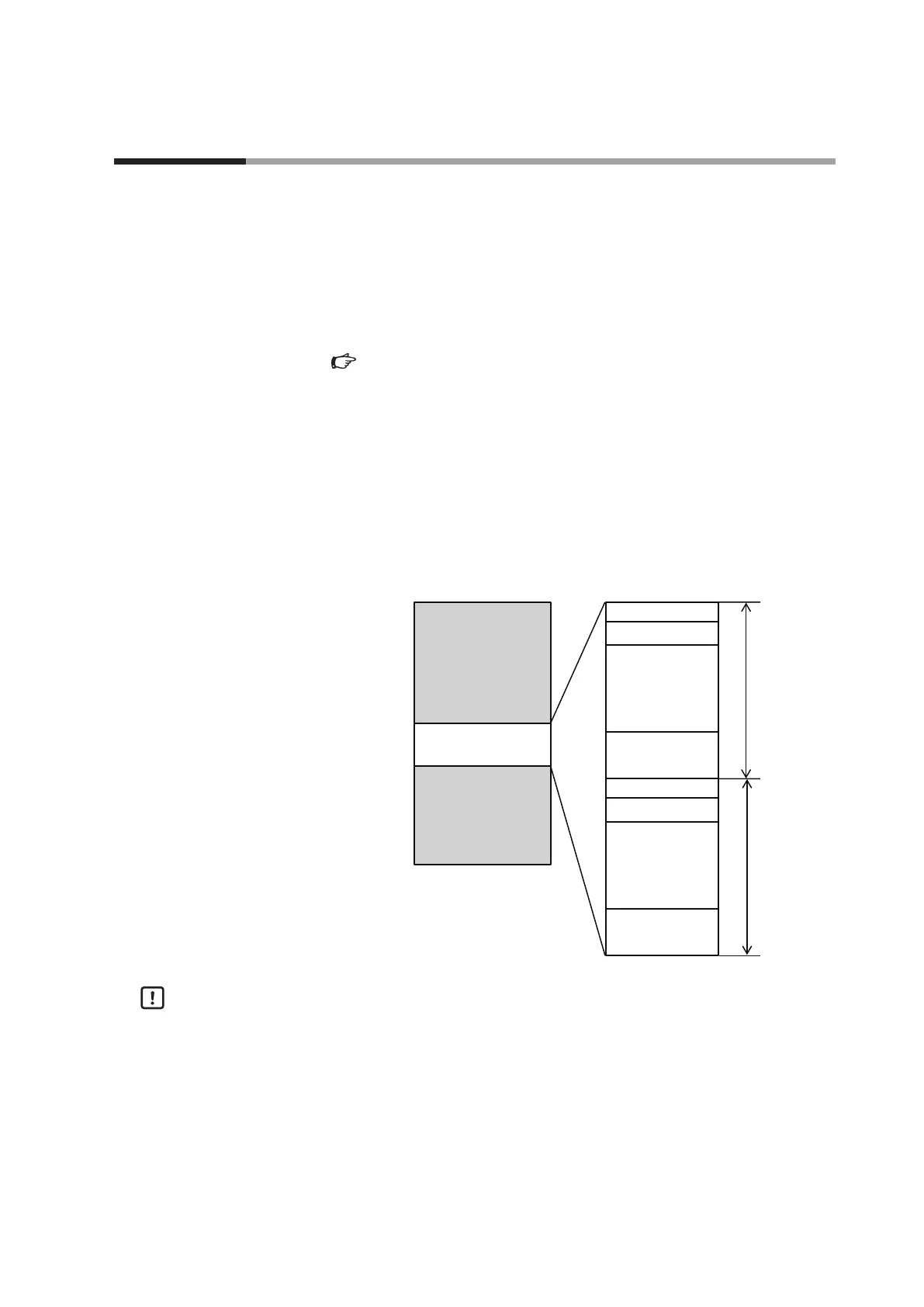

• The data addresses are arranged as shown below.
0
49999
Communication data address
Pattern number
Segment settings
→
Pattern settings
Pattern number
Segment settings
Pattern settings
Pattern start address
Communication data
address of the pattern
Address 1000
(RAM area)
Address 1000
(normal area)
Segment settings
(for batch access)
Segment settings
(for batch access)
Handling Precautions
• There are two types of communication data for the segment settings.
"Segment settings" contain all types of segment settings, and the addresses
are separated by segment.
"Segment settings (for batch access)" consists of the SP and segment time
settings, and the addresses are continuous.
• The pattern configuration settings are not included in the above pattern
communication data. User-defined addresses are set for these settings, as in
the case of other parameters.
9 - 5 Pattern Communication Data
