Azbil C7G User Manual

5-27
Chapter 5. Screens


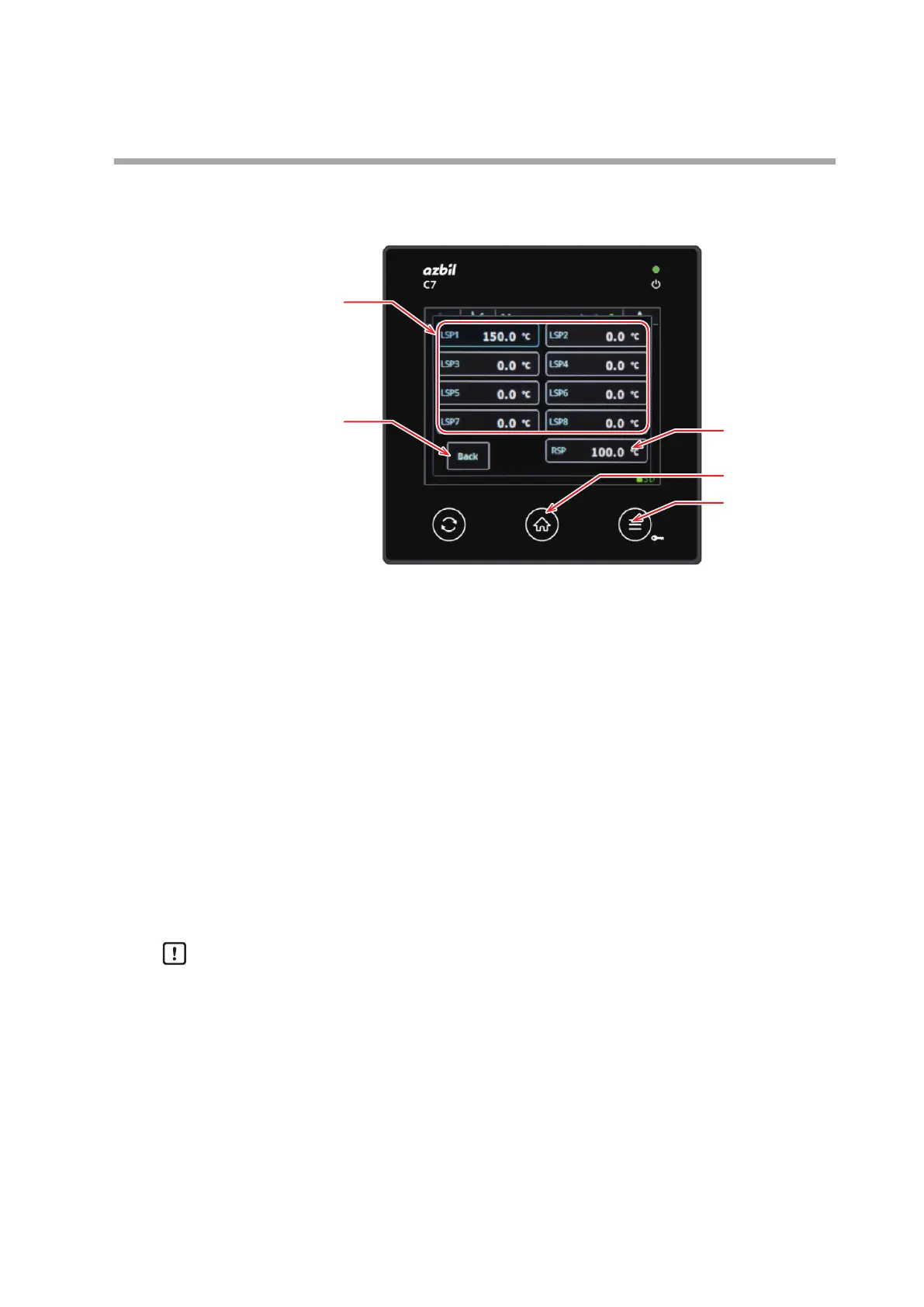

LSP/RSP select screen
The currently selected LSP or RSP is displayed in the blue frame.
(1)
(3)
(2)
(5)
(4)
(1) LSP group selection
Touch a desired LSP group to select it. The display does not return to the
monitor screen even when this is selected.
(2) RSP selection
Touch this portion to select the RSP. The display does not return to the monitor
screen even when this is selected.
(3) [Back] button
Touching this button returns the display to the monitor screen.
(4) Home button
Pressing this button displays the Home screen.
(5) Menu button
Pressing this button displays the parameter bank menu screen.
Handling Precautions
• The number of LSP system groups displayed may vary between 1 and 8
groups according to the setting for the number of LSP groups (in the SP
CONFIG bank).
• When there is no RSP according to the model No. and loop type setting, no
RSP is displayed.
