10-4
Chapter 10. PLC Link Communication
When the [Trigger device initialization] setting is [Yes], the trigger device is turned
off immediately after the trigger is detected. When the trigger device is turned
off by the trigger device initialization function, the status is the same as when the
controller finds that the trigger device is off. Therefore, in the next trigger scan
cycle, the trigger is detected if it is on.

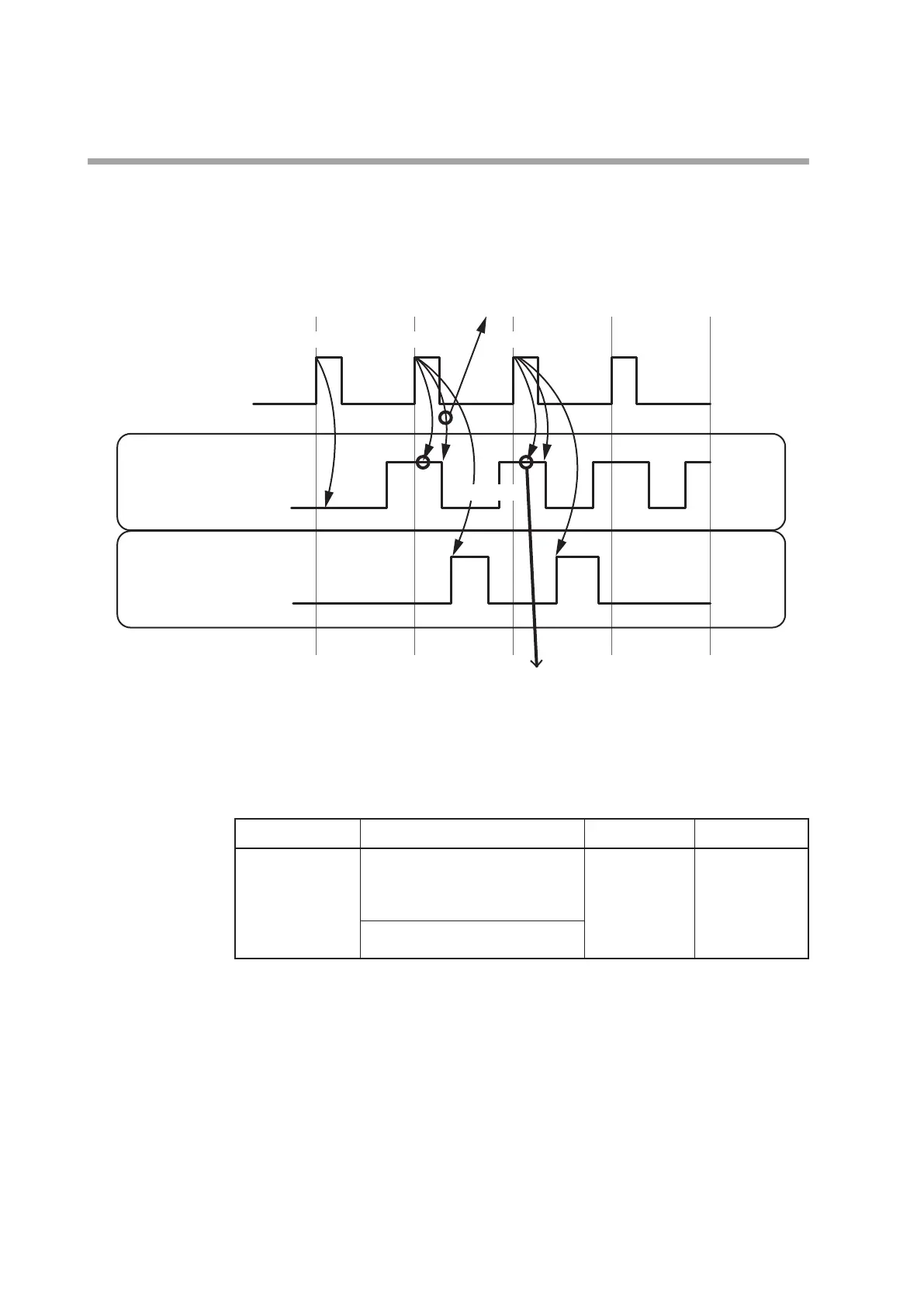

Triggered transfer scan cycle
Trigger device initialization
Trigger device
Triggered data
transfer sheet 1
Trigger detected if turned OFF
by trigger device initialization function
ON
OFF
Processing
Stopped
OFF conrmation ON conrmation ON conrmation
OFF conrmed

Connectible PLCs
The connectible PLCs are shown in the table below.
Company name Series name Protocol Transport layer
Mitsubishi Electric
Corporation
MELSEC iQ-R
MELSEC Q
MELSEC L
SLMP (3E) Binary TCP
MELSEC iQ-F
(Use of some devices is restricted.)
To Next Page
