5-52
Chapter 5. Screens


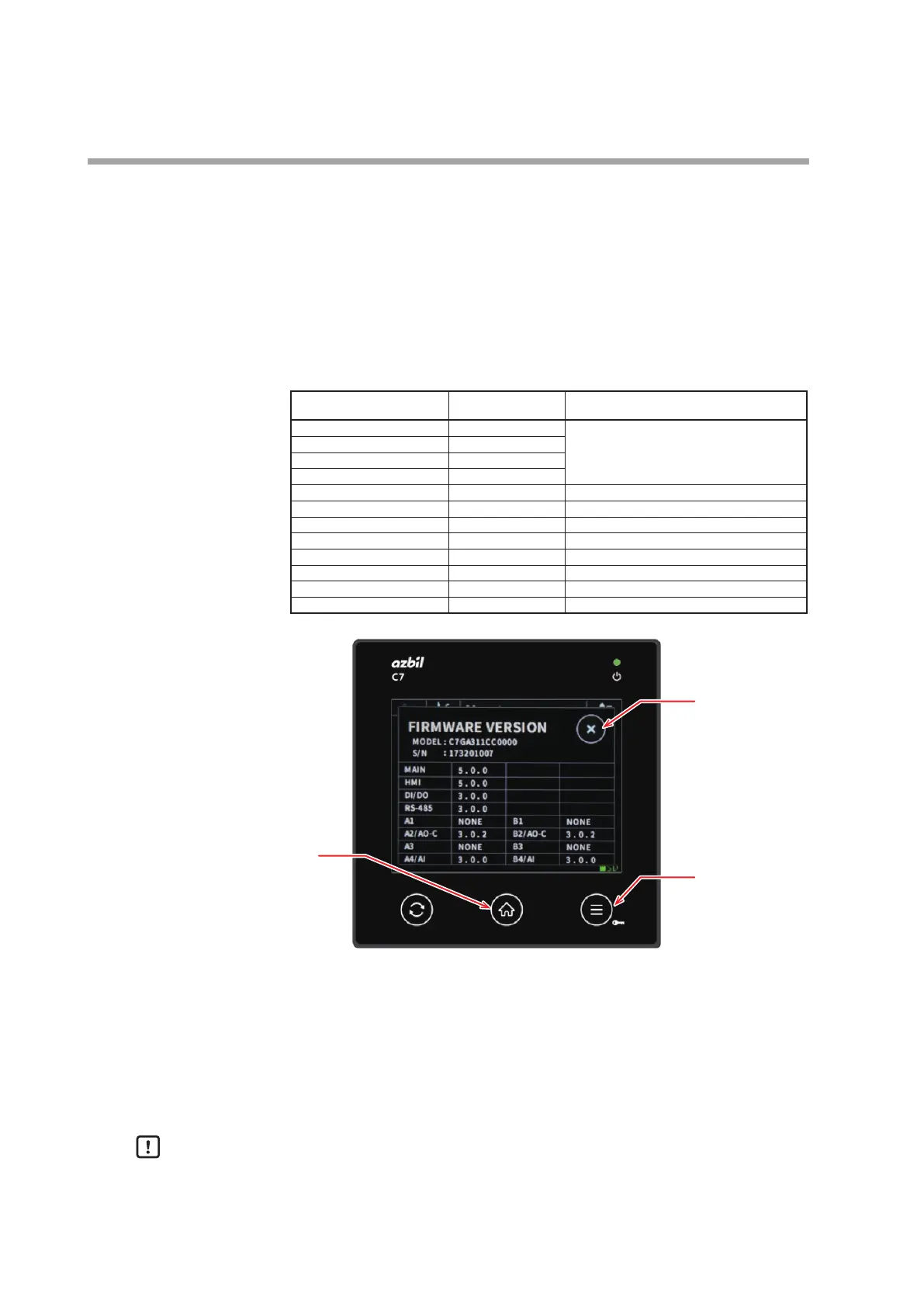

Firmware Versions
The firmware version bank screen differs from usual.
MODEL (model number) and S/N (serial number) are displayed above the version
table. The table shows the firmware versions for the MAIN, HMI (display unit),
DI/DO, and RS-485 blocks. It also displays the block type and firmware version for
each block inserted in slots A1 to A4 and B1 to B4. The version of the additional
display unit is displayed at the slot position where the cable is connected.
Block types, their indicators, and corresponding slots
Block Type Indicator Corresponding Slot
Main MAIN Fixed at the top left position
Standard display unit HMI
DI/DO DI/DO
RS-485 RS-485
Current output AO-C A1, A2, B1, B2
Voltage pulse output V-P A1, A2, B1, B2
Motor drive output MOTOR B2
Analog input AI A3, A4, B3, B4
Additional display unit HMI B1
Clock function CLOCK B1, B3
DI DI A3, B3
DO DO A1, B1
(2)
(1)
(3)
(1) Close button
Touching this button returns the display to the parameter bank menu screen.
(2) Home button
Pressing this button displays the Home screen.
(3) Menu button
Pressing this button displays the parameter bank menu screen.
Handling Precautions
• If the firmware version of the HMI block (display unit) is earlier than 5.x.x
(where x stands for any number), MODEL (model number) and S/N (serial
number) are not displayed.
