11-2
Chapter 11. Maintenance and Troubleshooting


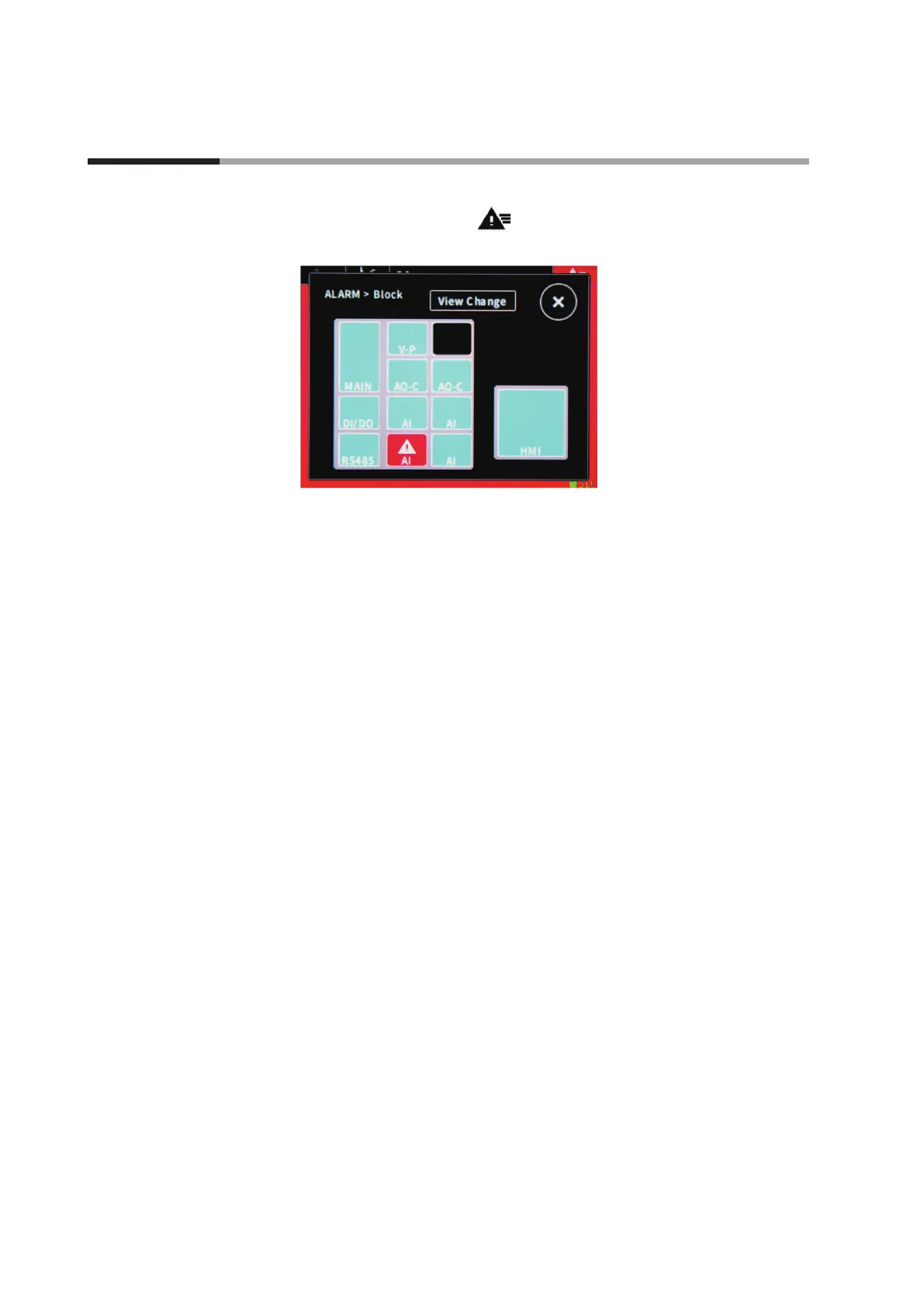

Block alarm screen
Pressing the block alarm icon in the upper right corner of the monitor screen
and the graph screen displays the block alarm screen.
The block alarm screen schematically shows the blocks of the main unit and the
display unit. On this screen, the alarm status is distinguished by color.
• Blue block: Normal
• Red block: Alarm (error)
• Black: Not implemented
Pressing the [View Change] button displays the function alarm screen.
Pressing the [X] button returns the display to the original screen.
11 - 2 Alarm
