5-18
Chapter 5. Screens


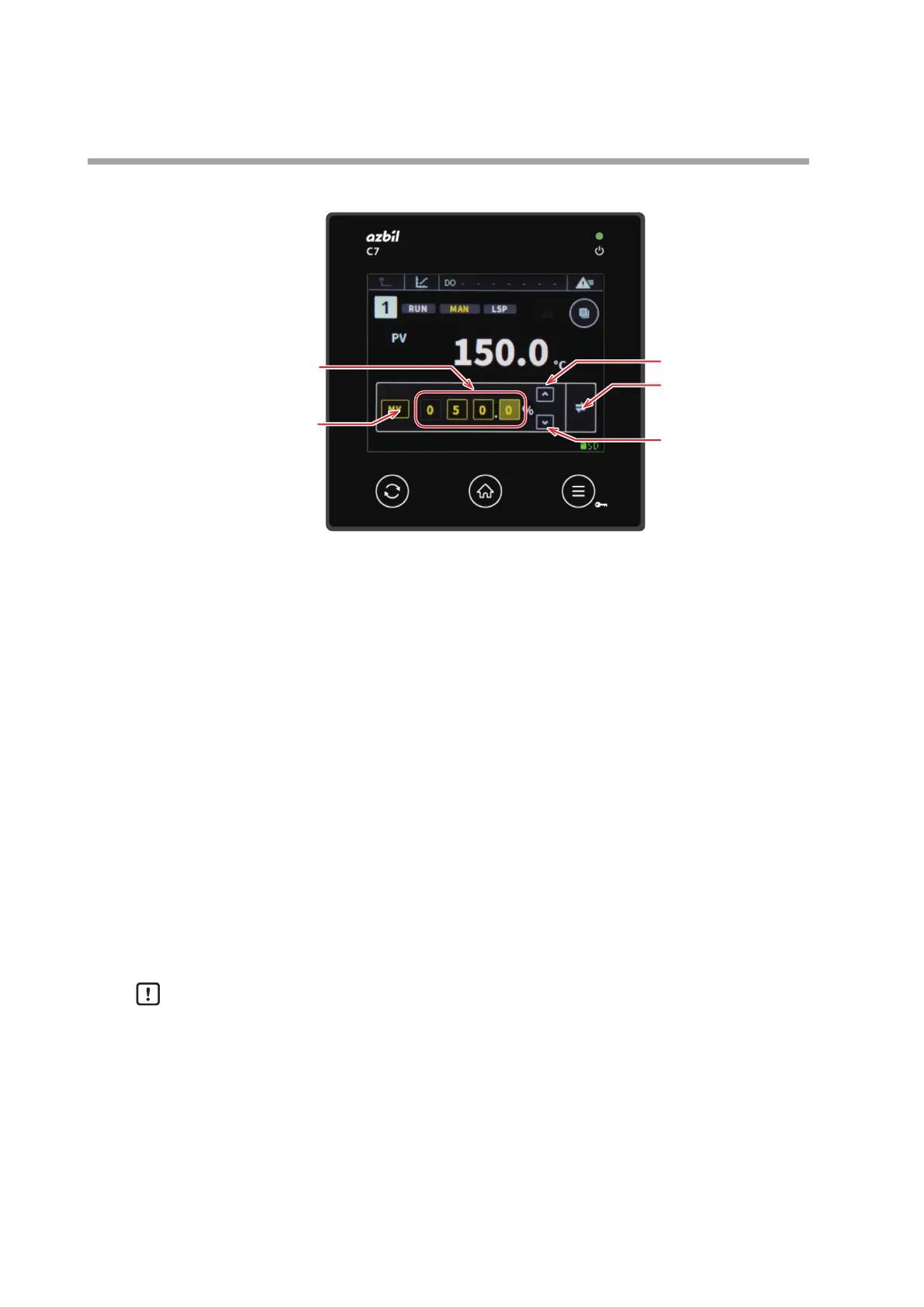

1-loop monitor screen in MANUAL mode
(1)
(5)
(3)
(4)
(2)
(1) MV increase button
Increases the numeric value at the MV numeric change digit (yellow
background).
(2) MV decrease button
Decreases the numeric value at the MV numeric change digit (yellow
background).
(3) MV digit select button
Selects the MV numeric change digit. The background of the selected digit is
displayed in yellow. However, note that the hundreds digit cannot be selected.
(4) [MV] button
Pressing this button displays the mode change screen for changing MANUAL to
AUTO.
(5) View change button
Touching this icon changes the display.
Other displays and buttons follow the pattern of the 1-loop monitor screen.
Handling Precautions
• This screen does not display the SP, CT input value, and VT input value.
Additionally, there is no button for going directly to the SP menu screen.
• If the firmware version of the HMI block (display unit) is earlier than 4.x.x
(where x stands for any number), a [MANUAL] button appears instead of the
[MV] button, and there is no view change button.
To Next Page
