Chapter 10. PLC Link Communication

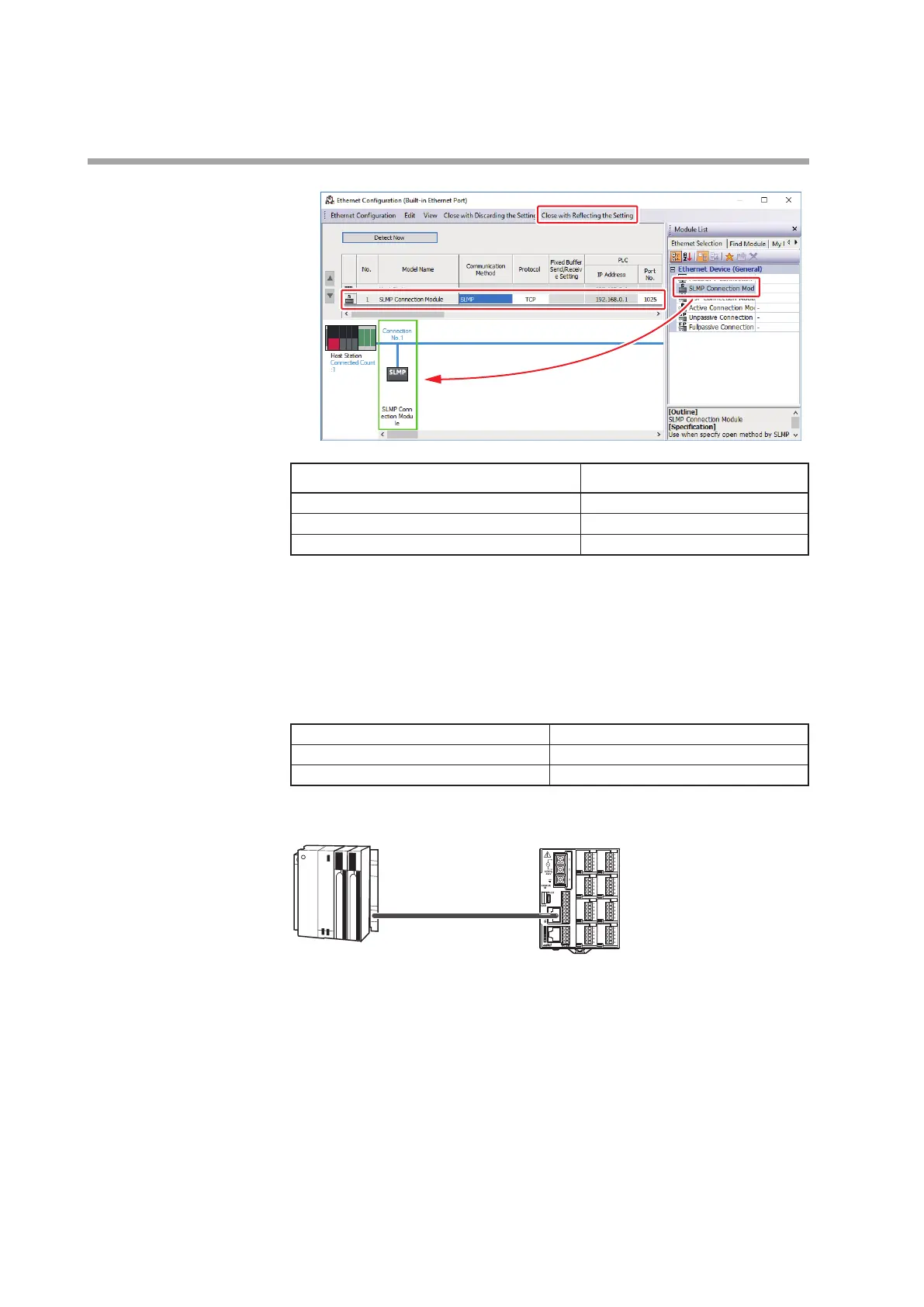

Drag and drop the SLMP Connection Module.
Setting item Setting
Model Name SLMP Connection Module
Protocol TCP
PLC Port No. 1025
>> The Module Parameter Ethernet Port setting window appears.
(6) Click the [Apply] button to close the window.

Q series CPU direct connection
Usage examples of the following devices are provided.
PLC Q04UDEHCPU
Communication interface CPU module Ethernet port
Communication protocol TCP/IP, SLMP (3E), binary code

Device structure
LAN
PLC
192.168.0.1
C7G
IP address: 192.168.0.127

SLP-C7 settings
(1) Configure the PLC Link settings according to the device settings of the
Mitsubishi PLC.
