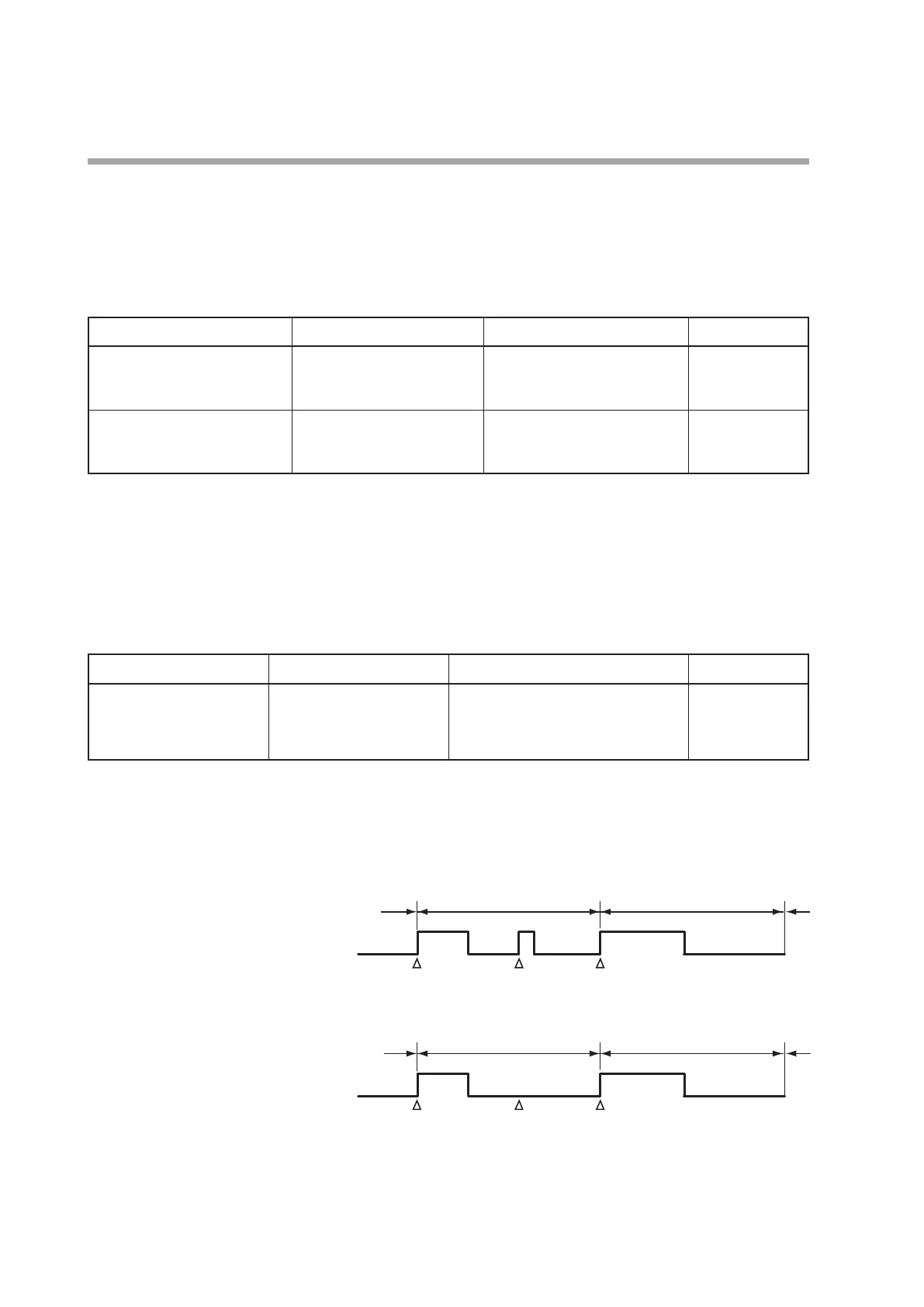

Azbil C7G User Manual

4-70
Chapter 4. Functions

TP cycle
The TP (time proportioning) cycle can be set to the DI/DO number and V-P output
used for TP (time proportioning) output.
Four settings are available for DI/DO groups 4 to 7, and four settings are available
for blocks A2, B2, A1, and B1.
Item (bank) Display Description Initial value
Block DI/DO
Time proportional cycle
(TP bank)
MENU > TP
DI/DO
TP cycle
0.1000 to 120.00 s 10.000
Blocks A2, B2, A1, and B2
TP output cycle
(TP bank)
MENU > TP
A2, B2, A1, B2
TP cycle
0.1000 to 120.00 s 2.0000

TP operation type
The TP (time proportioning) operation type can be set to the DI/DO number and
V-P output used for TP (time proportioning) output.
Four settings are available for DI/DO groups 4 to 7, and four settings are available
for blocks A2, B2, A1, and B1.
Item (bank) Display Description Initial value
TP operation type
(TP bank)
MENU > TP
TP operation type
0: Priority on controllability
1: Priority on device life (only one
ON/OFF operation within the time
proportional cycle)
0
If 0 (priority on controllability) is set, DO may be turned ON twice or more in the
time proportional cycle.
If 1 (priority on device life) is set, DO may remain OFF or may be turned ON only
1 time in the time proportional cycle.
Setting is 0.
25% → 65% → 45%
OFF
ON
PID operation result
Time proportional cycle
Time proportional cycle
25%
→
65%
→
45%
OFF
ON
PID operation result
Setting is 1.
Time proportional cycle
Time proportional cycle
