1-21
Chapter 1. Overview

Screen transitions of the user HOME screen
From the loops set to be used in the loop type setting, enable the loop to be
displayed on the user HOME screen with the following settings.
Item (bank) Display Description Initial value
Loop1 HOME screen setting
(Basic action bank)
MENU>BasicAction
Loop1 HOME screen setting
0: Disabled
1: Enabled
0
Loop2 HOME screen setting
(Basic action bank)
MENU>BasicAction
Loop2 HOME screen setting
0: Disabled
1: Enabled
0
Loop3 HOME screen setting
(Basic action bank)
MENU>BasicAction
Loop3 HOME screen setting
0: Disabled
1: Enabled
0
Loop4 HOME screen setting
(Basic action bank)
MENU>BasicAction
Loop4 HOME screen setting
0: Disabled
1: Enabled
0
The user HOME screen is displayed only when the power is turned ON or the
home button is pressed.

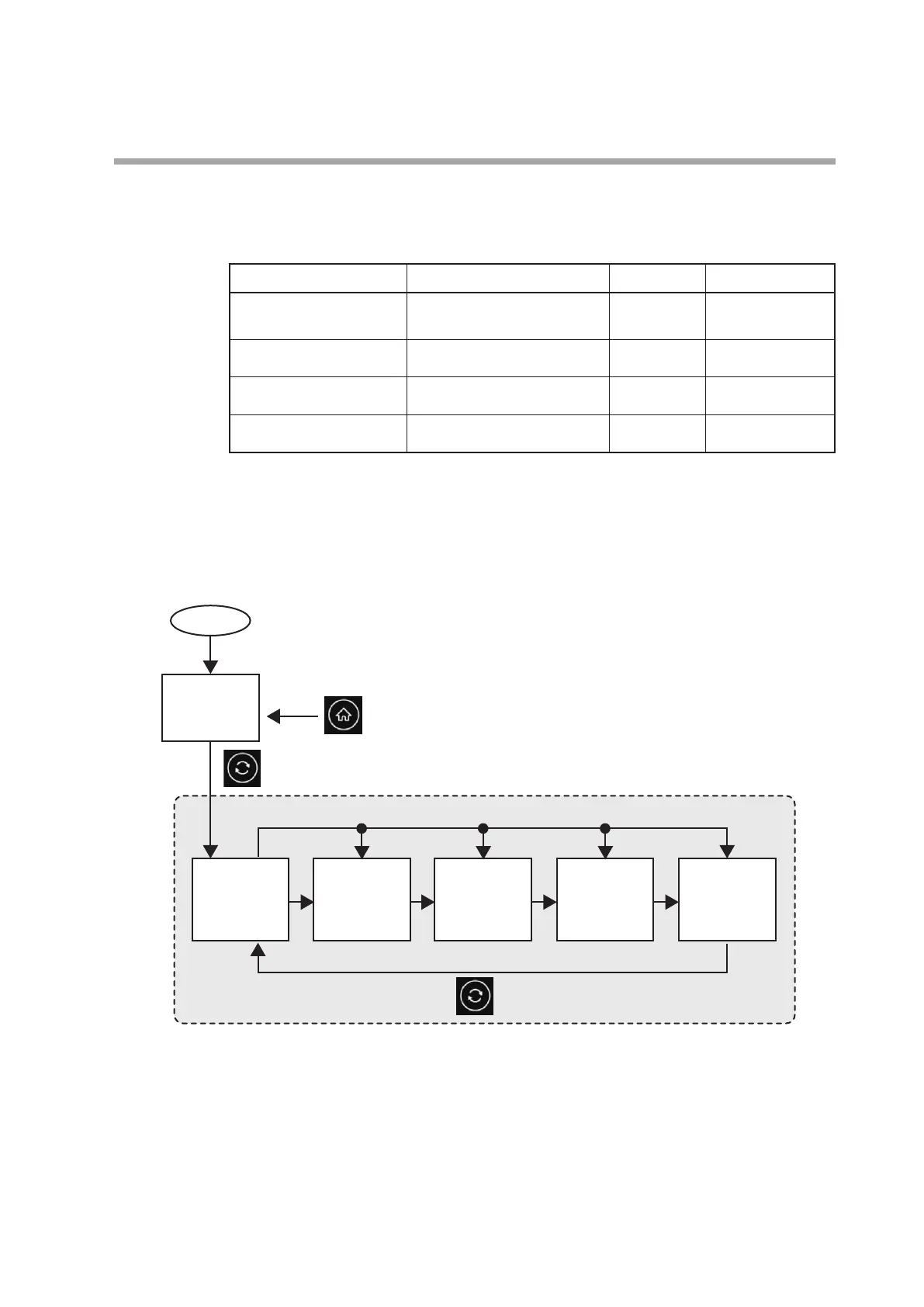

For example, if the loop type is set to 4 loops and Loop 1 and Loop 2 are selected for
display on the user HOME screen, the transitions on the Numeric Monitor screen
are as shown in the figure below.
Home screen
(LOOP1 to 4)
User home
screen
(LOOP1 to 2)
Power-on
Home button
Change button
Change button
1-loop monitor
screen
(LOOP1)
1-loop monitor
screen
(LOOP2)
1-loop monitor
screen
(LOOP3)
1-loop monitor
screen
(LOOP4)
Touch the display of each loop.
Separate user HOME screens can be set for the standard display unit and additional
display unit.
Therefore, settings such as the following are also possible.
• Show Loop 1 and Loop 2 on the user HOME screen of the standard display unit.
• Show Loop 3 and Loop 4 on the user HOME screen of the additional display unit.
