5-41
Chapter 5. Screens


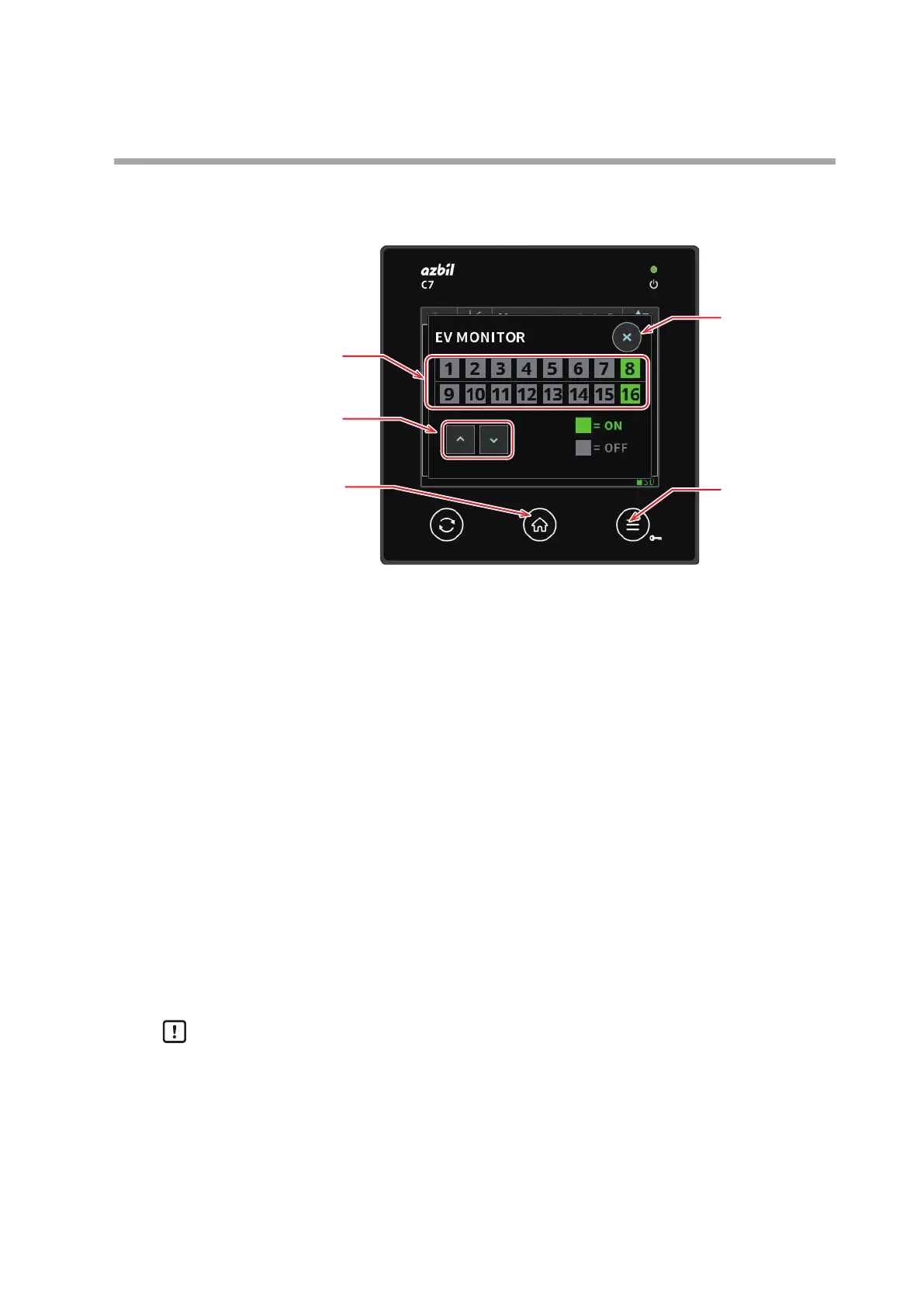

EV monitor screen
The statuses of events 1 to 16 can be monitored.
(4)
(2)
(3)
(1)
(5)
(1) Event status
A number with a green background indicates a terminal whose event is ON.
A number with a gray background indicates a terminal whose event is OFF.
If the actual event ON/OFF time is shorter than the display update time, the
status may not be reflected on the display.
(2) Screen forward and back buttons
When [Λ] is touched, the screen goes back to the previous screen, and when [V]
is touched, the screen switches to the next enabled screen among the DI/DO
monitor, DI monitor, DO monitor, and SEG-EV monitor screens.
(3) Close button
Touching this button returns the display to the previous screen.
(4) Home button
Pressing this button displays the Home screen.
(5) Menu button
Pressing this button displays the parameter bank menu screen.
Handling Precautions
• If the version of the MAIN block firmware is earlier than 6.x.x (where x stands
for any number), the EV monitor screen is not displayed.
