Chapter 5. Screens


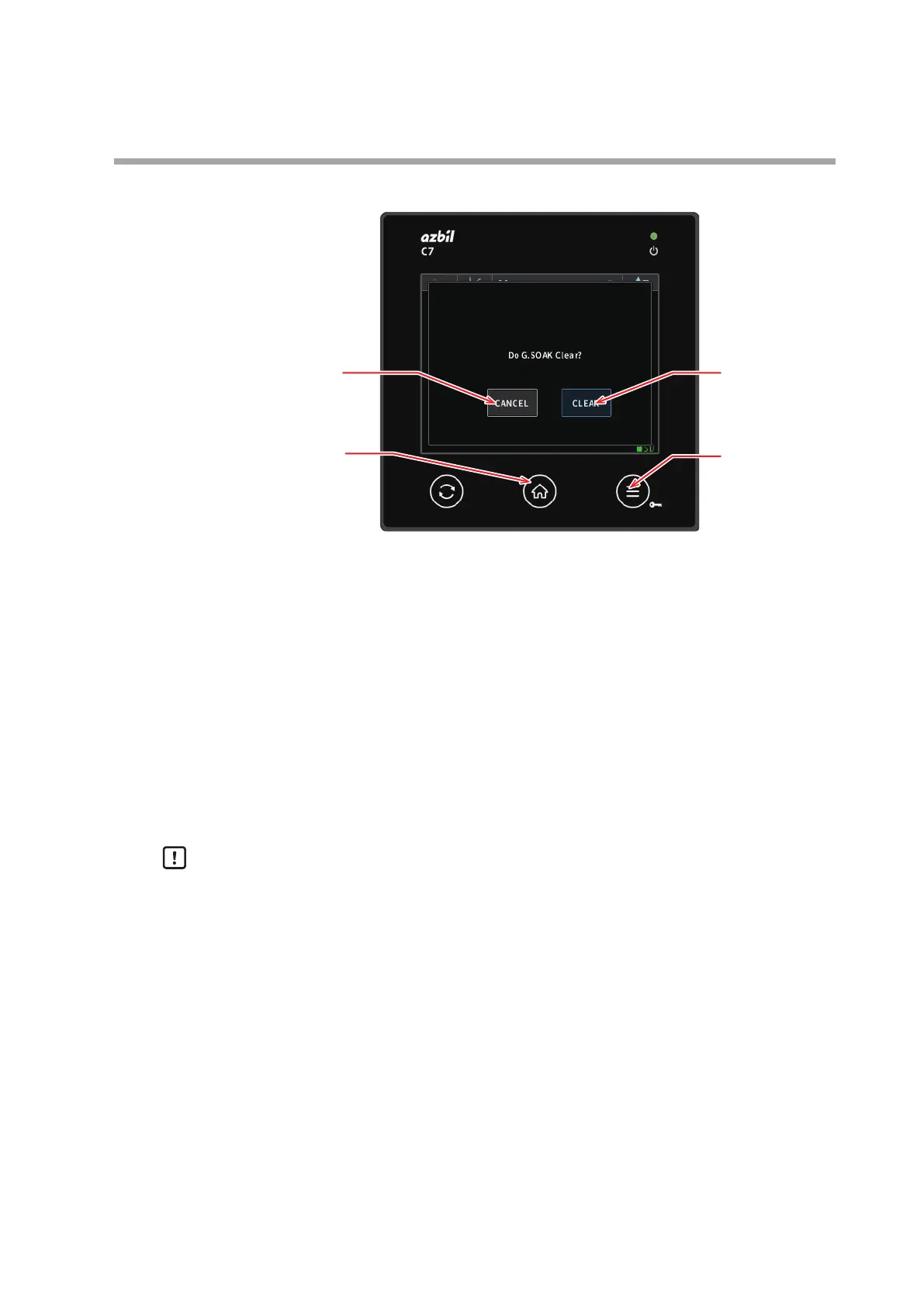

G.SOAK clear screen
(3)
(1)
(2)
(4)
(1) [CANCEL] button
Touching this button returns the display to the monitor screen without clearing
G.SOAK wait.
(2) [CLEAR] button
Touching this button clears G.SOAK wait and returns the display to the monitor
screen.
(3) Home button
Pressing this button displays the Home screen.
(4) Menu button
Pressing this button displays the parameter bank menu screen.
Handling Precautions
• If pattern operation is disabled, the G.SOAK clear screen is not displayed.
• If the version of the MAIN block firmware is earlier than 6.x.x (where x stands
for any number), the pattern operation function is not available.
