Azbil C7G User Manual

4-27
Chapter 4. Functions
Handling Precautions
• If the firmware version of the MAIN block is 1.x.x (where x stands for any
number), the SP lag does not operate even though it can be set.

ON/OFF control
The settings related to ON/OFF control can be configured for each control loop.
Item (bank) Display Description Initial value
Differential for ON/OFF
control
(CONTROL bank)
MENU > Control
Differential for ON/OFF
control
0.0000 to 32000 5.0000

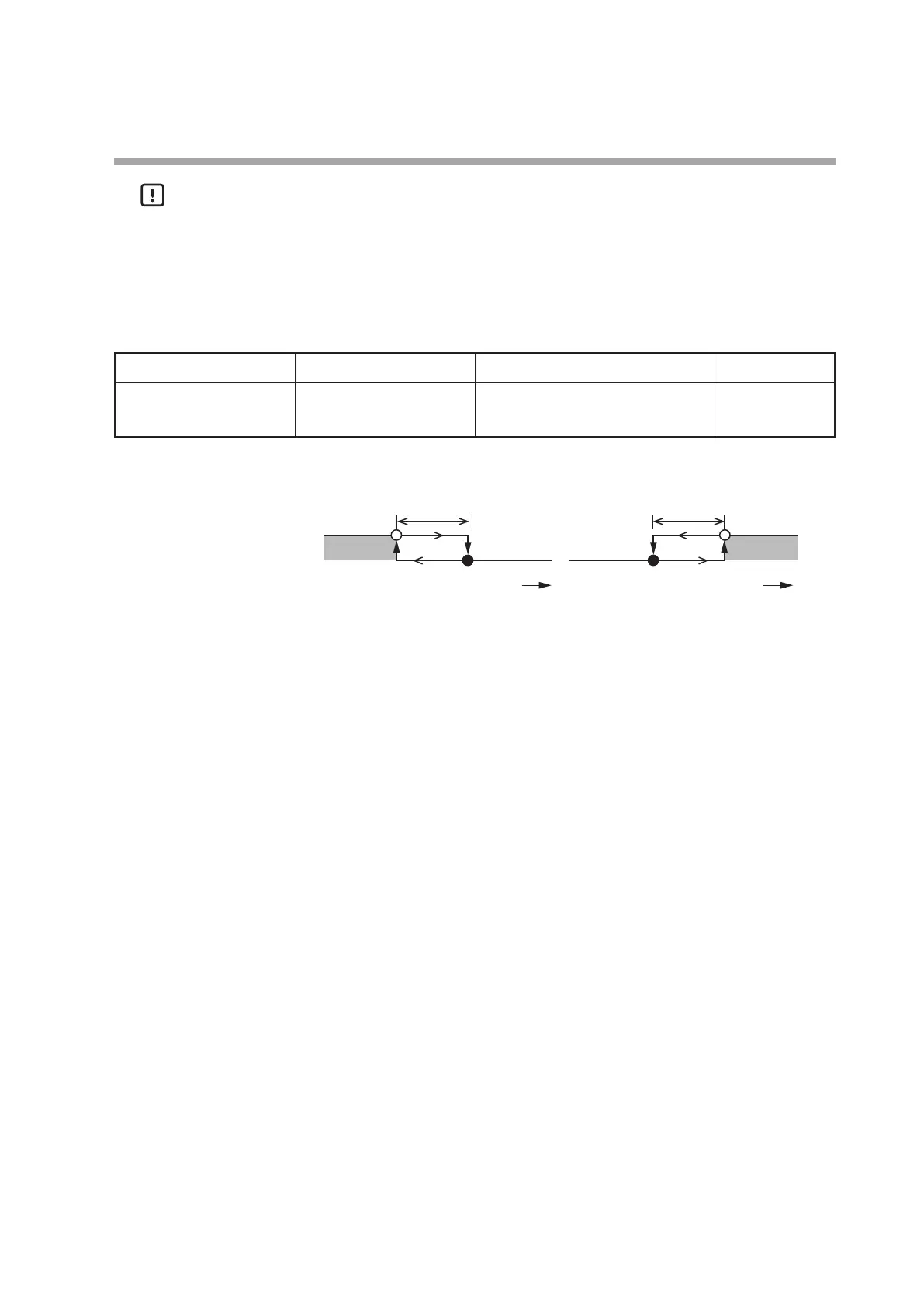

The action of the ON/OFF control is as shown below.
ON
Heating operation (reverse action) Cooling operation (direct action)
ON
SP SP
PV
PV
Dierential
Dierential
In the diagram,
 means that ON/OFF changes at that value
 means that ON/OFF changes after that value is passed
