4-119
Chapter 4. Functions
The brightness of the LCD backlight and the position of the touch panel can be adjusted.

Brightness adjustment
When the monitor screen is displayed, press (the menu button), and select the
Basic Action bank to display the following items.
Item (bank) Display Description Initial value
Brightness
(Basic action bank)
MENU > BasicAction
Display intensity
1 to 5
The larger the number, the greater the
brightness.
4


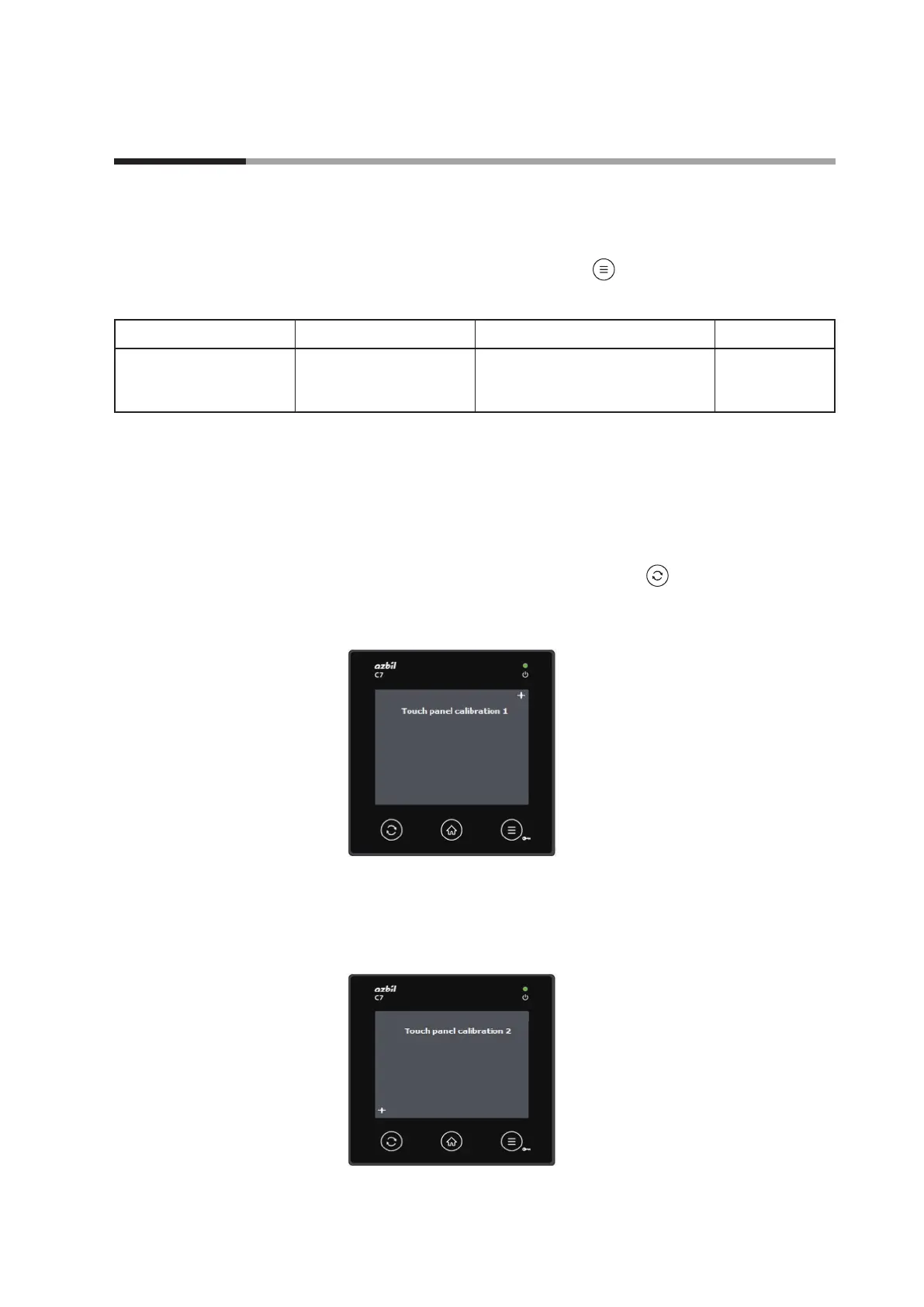

Position adjustment
The touch panel position is adjusted during manufacturing. However, the position
may shift over time. If so, adjust the position.
When the monitor screen is displayed, hold down the Change button for 4 seconds
or longer to open the touch panel adjustment screen.
There are four screens in
total.
(1) Touch panel calibration 1 screen
Touch the center of the "+" mark shown in the upper right.
>> The Touch panel calibration 2 screen appears.
(2) Touch panel calibration 2 screen
Touch the center of the "+" mark shown in the lower left.
>> The Touch panel test 1 screen appears.
4 - 21 Display Unit Adjustment
