Azbil C7G User Manual

10-7
Chapter 10. PLC Link Communication


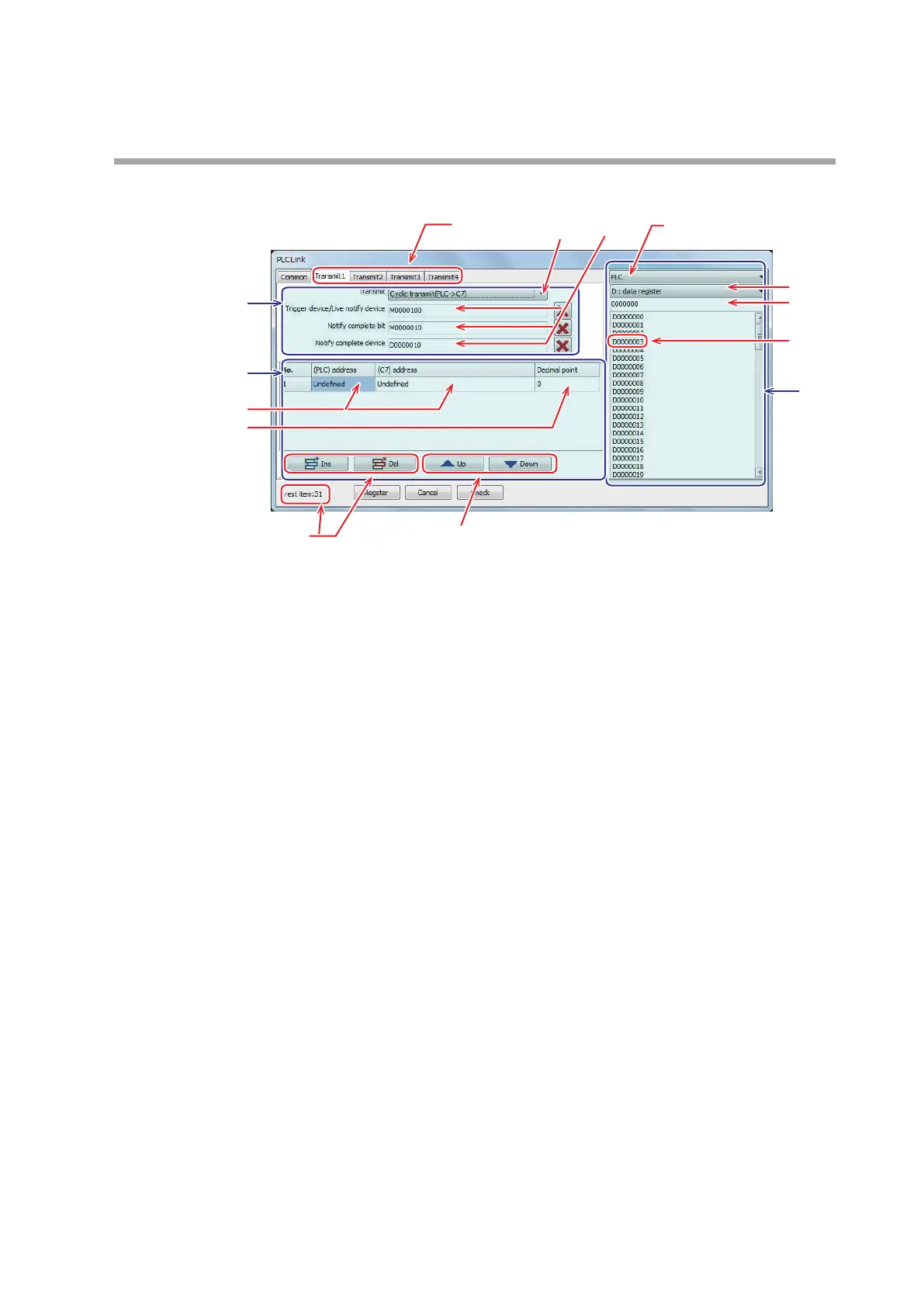

Transfer settings
(4)
(1)
[A]
[C]
(5)
(2)
(3) (8)
(9)
(10)
(6)
(7)
(11)
[B]
(1) Select a tab from the [Transfer 1] to [Transfer 4] tabs.

Section [A] Transfer operation settings
(2) After selecting a tab, first select [Operation type].
(3) Drag and drop an address in section [C] to [Trigger device / live notification
device], [Completion notification bit], and [Completion notification data].

Section [B] Transfer data settings
(4) The number of lines can be increased or decreased with [Ins] and [Del].
One line corresponds to one item. Up to 32 items can be specified in total
for transfer 1 to transfer 4 combined. [Remaining items] is displayed at the
bottom of the screen.
(5) Other lines can be selected by using [Up] and [Down].
(6) Set [PLC Address] and [C7 Address] by dragging and dropping an address in
section [C].
(7) Set the number of decimal places for converting data with decimal points to
integer data for communication. For example, if 1 digit after the decimal place
is set, data with a decimal point is converted to integer data 10 times larger.

Section [C] Address list
(8) Select [Device (PLC or C7)].
(9) Select [Data type].
(10) Enter the first address in the list. Right-click with the mouse to increase or
decrease.
(11) An address can be selected from the list and dragged and dropped to sections
[A] and [B].
