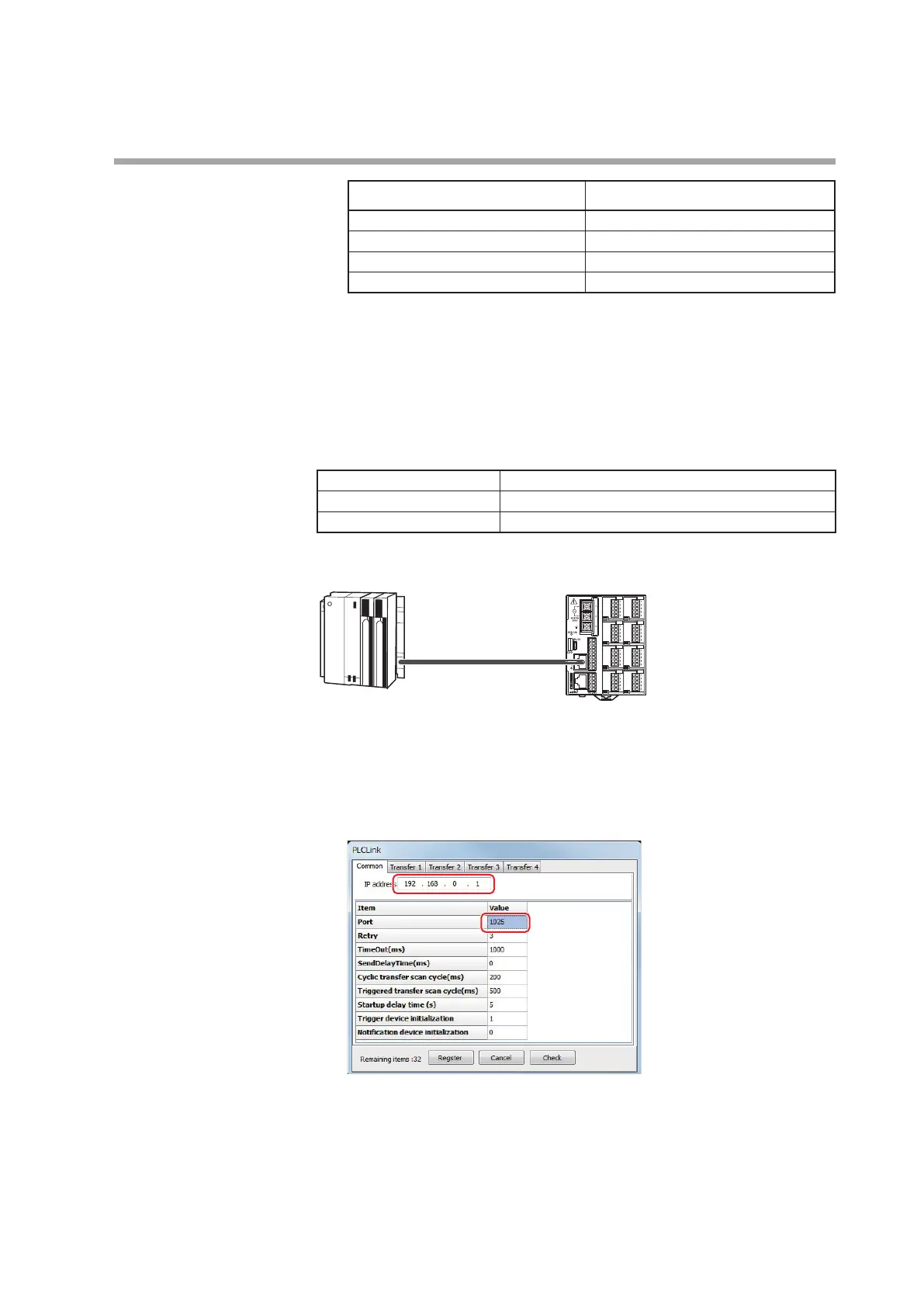

10-19
Chapter 10. PLC Link Communication
Setting item Setting
Port No. Input Format DEC
Protocol TCP
Open System MC Protocol
Host Station Port No. 1025
>> The Q Parameter Setting window appears.
(6) Click the [End] button to close the window.

Q series Ethernet interface module
Usage examples of the following devices are provided.
PLC Q04UDEHCPU
Communication interface Ethernet interface module QJ71E71-100
Communication protocol TCP/IP, SLMP (3E), binary code

Device structure
LAN
PLC
192.168.0.1
C7G
IP address: 192.168.0.127

SLP-C7 settings
(1) Configure the PLC Link settings according to the device settings of the
Mitsubishi PLC.
IP address: 192.168.0.1
Port number: 1025
