5-24
Chapter 5. Screens


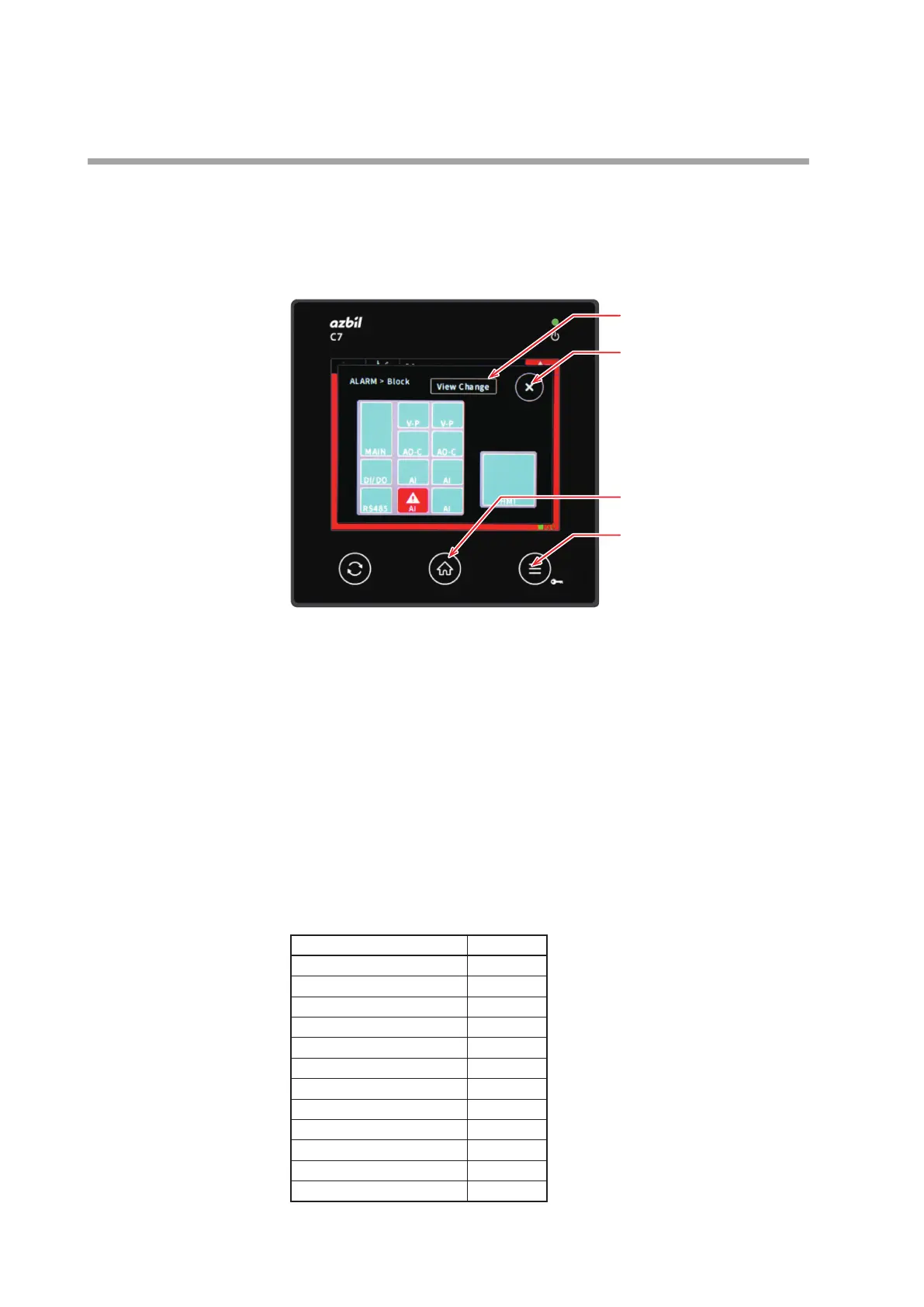

Block alarm screen
An alarm occurs in the block displayed in red.
This schematically displays the block positions when viewing the main unit from
the terminal side.
(1)
(2)
(4)
(3)
(1) View change button
Touching this button displays the function alarm screen.
(2) Close button
Touching this button closes the screen and returns the display to the previous
screen.
(3) Home button
Pressing this button displays the Home screen.
(4) Menu button
Pressing this button displays the parameter bank menu screen.
Block types and their indicators
Block Type Indicator
Main MAIN
DI/DO DI/DO
RS-485 RS485
Current output AO-C
Voltage pulse output V-P
Motor drive output MOTOR
Analog input AI
Standard display unit HMI
Additional display unit HMI
Clock function CLOCK
DI DI
DO DO
