3-18
Chapter 3. Wiring

Connecting the cable between the main unit and display unit
Handling Precautions
• Do not pull on the wires of the display unit excessively. Doing so may damage
the connector.
• Before connecting the display unit, turn off the power to the main unit.


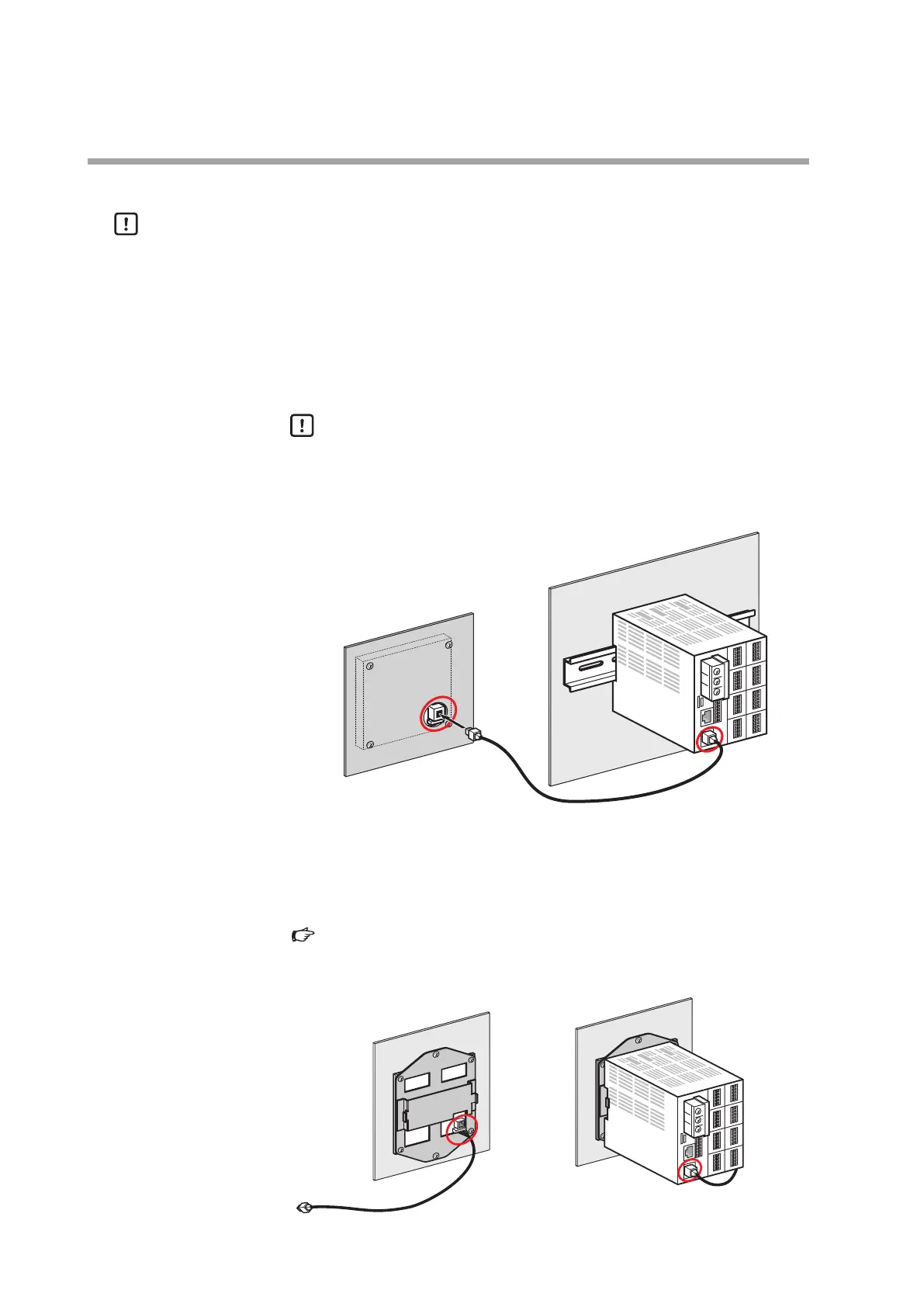

Standard mounting
Use a Cat5E or higher straight LAN cable to make the connection. (Cat5E, T568A,
or T568B wiring. Both ends use an RJ45 plug (8P8C modular).)
Handling Precautions
• A 4-core LAN cable cannot be used.
• If the length of the LAN cable for the display unit is from 30 m to 100 m,
an external power source must be connected for the display unit.
LAN cable

Integrated mounting
Insert the ferrules (part of the cable for integrated mounting supplied with the
product) with the specified colors into the terminal block of the display unit.
Step 1 in Integrated mounting (p.2-5)
Insert the integrating cable into the connector on the display unit.
(1) Connect the cable to the terminal of the display unit. (2) Mount the main unit on the mounting bracket,
and connect the cable to the main unit.
To Next Page
