3-19
Chapter 3. Wiring


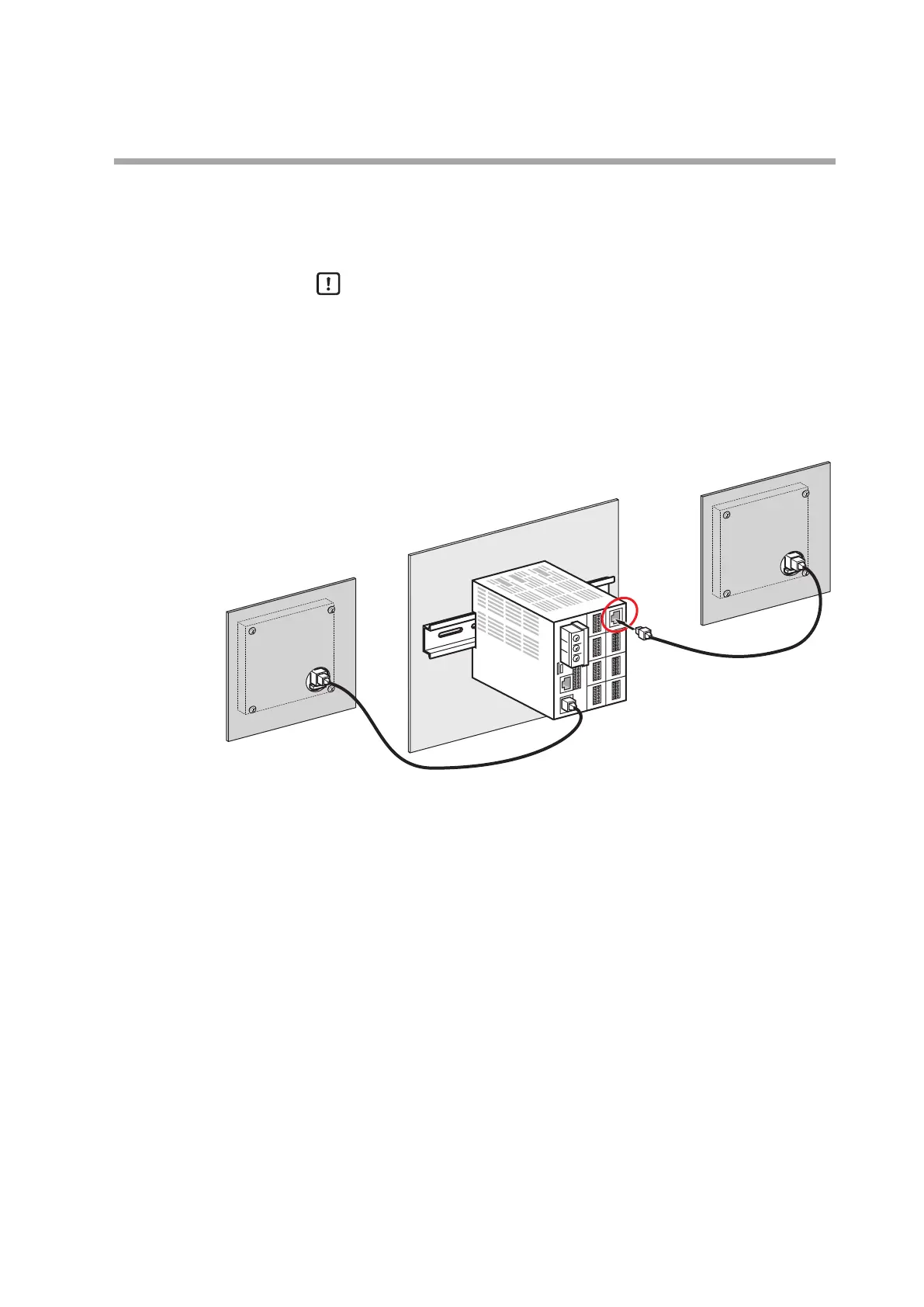

Mounting of additional display unit
Use a Cat5E or higher straight LAN cable to make the connection. (Cat5E, T568A,
or T568B wiring. Both ends use an RJ45 plug (8P8C modular).)
Handling Precautions
• A 4-core LAN cable cannot be used.
• The additional display unit can be mounted in the 92 × 92 mm hole using
the integrating bracket. Connect to the main unit using a LAN cable.
• If the length of the LAN cable for the display unit is from 30 m to 100 m,
an external power source must be connected for the display unit.
LAN cable
LAN cable
Additional display unit
Standard display unit
To Next Page
