Chapter 5. Screens


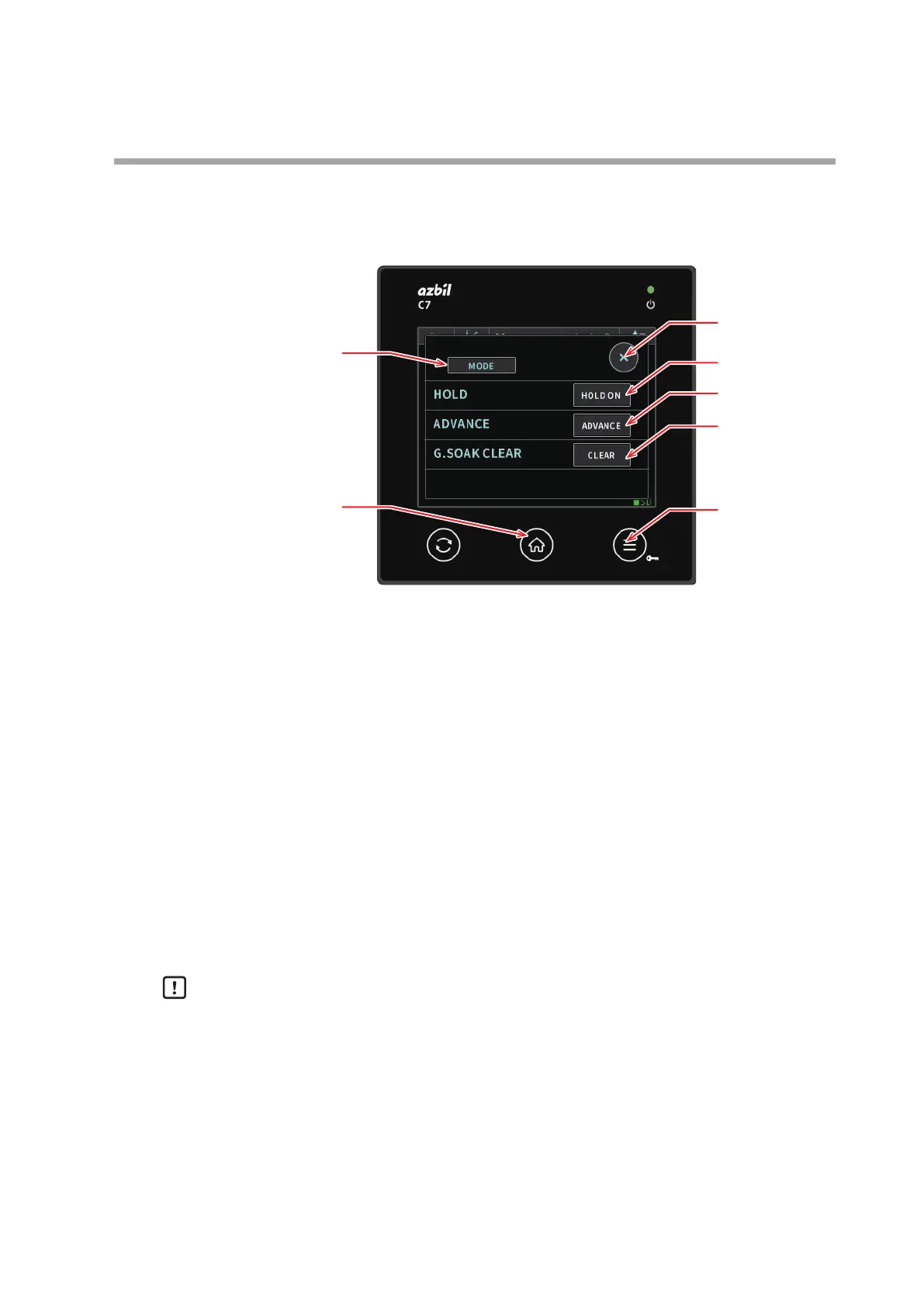

Mode menu screen (pattern)
If pattern operation is enabled, operations related to pattern operation can be
executed on this screen.
(5)
(6)
(4)
(1)
(2)
(3)
(7)
(1) [HOLD ON]/[HOLD OFF]button
Touching this button displays the HOLD mode change screen.
(2) [ADVANCE] button
Touching this button displays the ADVANCE operation screen.
(3) [CLEAR] button
Touching this button displays the G.SOAK clear screen.
(4) [MODE] button
Touching this button displays the mode menu screen.
(5) Close button
Touching this button returns the display to the previous screen.
(6) Home button
Pressing this button displays the Home screen.
(7) Menu button
Pressing this button displays the parameter bank menu screen.
Handling Precautions
• In the READY and END modes, the [HOLD ON]/[HOLD OFF]button display
becomes dark and touch operation is disabled.
• In the READY and END modes, the [ADVANCE] button display becomes dark
and touch operation is disabled.
• If the device is not in a G.SOAK wait, the [CLEAR] button display becomes dark
and touch operation is disabled.
• If pattern operation is disabled, the mode menu screen (pattern) is not
displayed.
• If the version of the MAIN block firmware is earlier than 6.x.x (where x stands
for any number), the pattern operation function is not available.
