Chapter 5. Screens
5 - 1 Monitor Screen and Graph Screen

Home screen
The Home screen varies in appearance depending on the number of loops
controlled.
The number of loops is determined by "loop type," which is set using the SLP-C7
Smart Loader Package.

For 4 loops

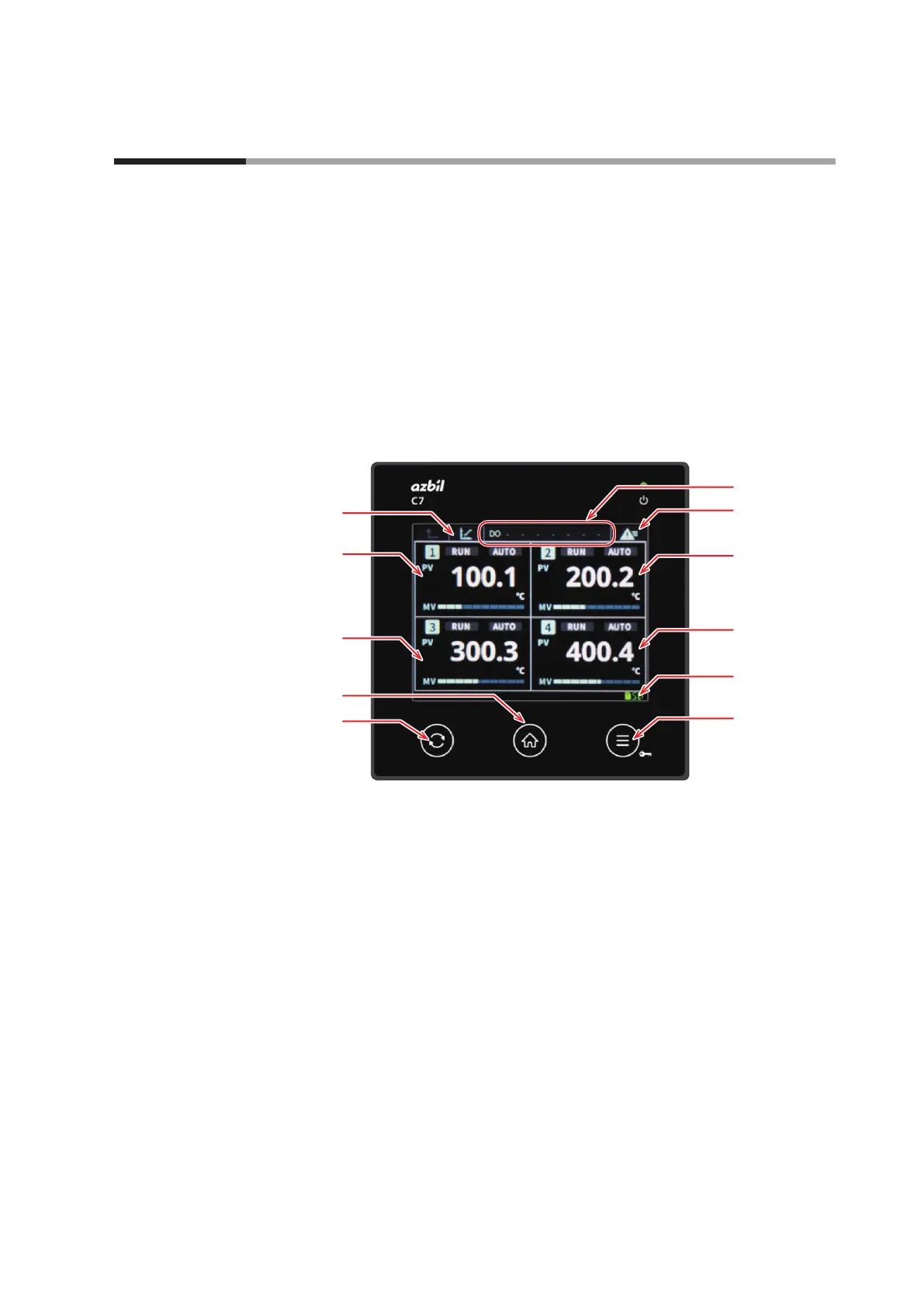

The Home screen is a multi-loop monitor screen, separated into four loop displays
in the four quarters of the screen.
Touching the display area of any loop shows the 1-loop monitor screen for that
loop.
(6)
(5)
(1)
(3)
(9)
(8)
(7)
(2)
(4)
(11)
(10)
(1) to (4) Separate monitor displays for loops 1 to 4
The PV (numeric value), MV (bar graph), RUN/READY mode, and AUTO/
MANUAL mode is shown for loops 1 to 4.
If auto tuning (AT) is started, the AT progress graph is displayed instead of the
MV. The LSP/RSP mode is not displayed.
When the area of any loop is touched, the display changes to the 1-loop monitor
screen for that loop.
(5) Graph icon
Touching this icon displays the graph screen.
(6) DO display
Displays the statuses of the DO1 to 7 terminals.
A green number shows ON status, a gray number shows OFF status, and "-"
indicates the DI function.
Touching this portion of the screen displays the DI/DO monitor screen.
