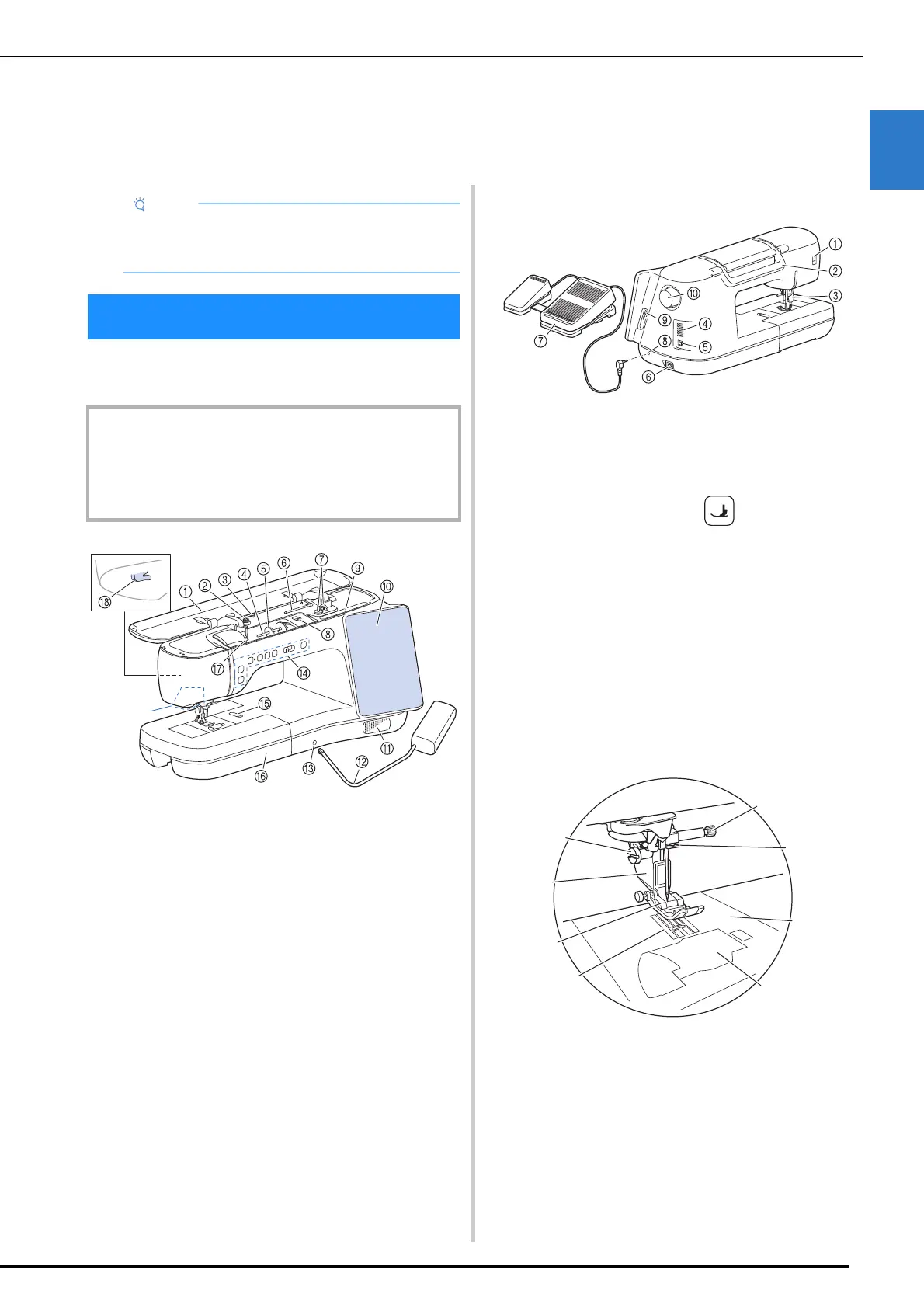

Brother EV1 - Chapter 1 Getting Ready; Front View; Names of Machine Parts; Right-Side;Rear View

Names of Machine Parts
Getting Ready
13
1
 Front View
* Camera and projector (built-in)
a Top cover
b Pretension disk (page 37)
c Thread guide for bobbin winding (page 37)
d Spool pin (page 42)
e Spool cap (page 42)
f Supplemental spool pin (page 37, page 106)
g Bobbin winder (page 37)
h Bobbin winding slider (page 37)
i Dual purpose stylus tray (page 15)
j LCD (liquid crystal display) (page 17)
k Speaker
l Knee lifter (page 72)
m Knee lifter slot (page 72)
n Operation buttons and sewing speed controller
(page 14)
o Needle plate lever (page 255)
p Flat bed attachment with accessory compartment
(page 15)
q Thread guide plate (page 42)
r Thread cutter (page 42)
 Right-side/Rear View
a Connector for the presser foot (page 49)
b Handle
Carry the machine by its handle when transporting the machine.
c Presser foot lever
Raise and lower the presser foot lever to raise and lower the
presser foot. You cannot use the presser foot lever after the
presser foot has been raised using (Presser foot lifter
button).
d Air vent
The air vent allows the air surrounding the motor to circulate. Do
not cover the air vent while the machine is being used.
e Main power switch (page 16)
f Power cord receptacle (page 16)
g Advanced multi-function foot controller (page 53)
h Foot controller jack (page 53)
i USB ports (page 17, page 64)
j Handwheel
Rotate the handwheel toward you (counterclockwise) to raise
and lower the needle.
 Needle and Presser Foot Section
a Presser foot holder screw (page 48)
b Presser foot holder (page 48)
c Presser foot
The presser foot consistently applies pressure to the fabric as
sewing takes place. Attach the appropriate presser foot for the
selected stitch.
d Feed dogs
The feed dogs feed the fabric in the sewing direction.
e Bobbin cover (page 40, page 83)
f Needle plate (page 82, page 255)
g Needle bar thread guide (page 42)
h Needle clamp screw (page 36)
Chapter 1
Getting Ready
Note
• Be sure to install the latest software.
Refer to “Updating Your Machine’s Software”
on page 258.
Names of Machine Parts
IMPORTANT
• Do not place any object weighing 1 kg (2.2 lb) or more
on the top cover, otherwise the cover may be damaged.
• Do not touch the camera or projector. Otherwise, it will
not display properly.
*
a
b
c
d
g
h
e
f
