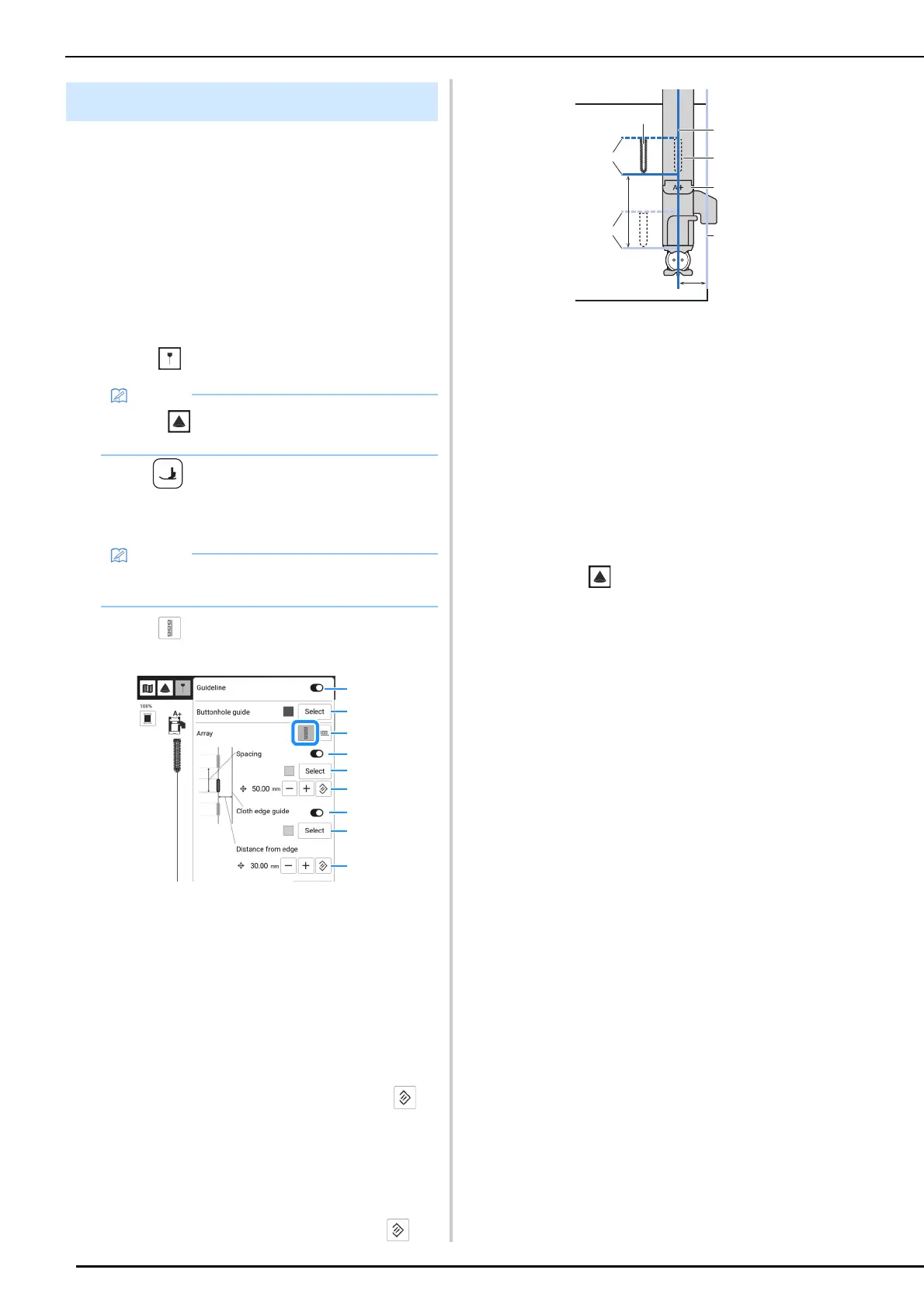

Brother EV1 - Buttonhole Guidelines

Projecting the Guidelines onto the Fabric
68
 When Arranging Buttonholes
Vertically
1
Select a buttonhole stitch. Attach
buttonhole foot “A+” and pull out the
button holder plate on the presser foot,
and insert the button.
* For details, refer to “One-Step Buttonholes” on
page 87.
2 Touch .
3 Press (Presser foot lifter button) to
lower buttonhole foot “A+”.
 The buttonhole length is reflected in the guidelines.
4 Touch and then specify the guideline
settings.
a Turn on or off the guideline function. When this
function is turned on, the main guidelines (*1, *2) in
addition to the sub guidelines (*4, *5) that are
turned on will be projected.
b Select the color of the main guidelines (*1, *2).
c Switches the direction in which buttonholes are
placed.
d Turn on or off the sub guidelines (*4) that show the
spacing of the buttonholes.
e Change the color of the sub guidelines (*4).
f Change the spacing of the buttonholes of the sub
guidelines (*3). To reset the spacing, touch .
g Turn on or off the sub guideline (*5) that shows the
distance from the centerline of the buttonholes to
the edge of the fabric.
h Change the color of the sub guideline (*5).
i Change the distance from the centerline of the
buttonholes to the edge of the fabric of the sub
guideline (*6). To reset the spacing, touch .
*1
Centerline of the buttonholes (main guideline)
*2
Buttonhole length (main guideline)
*3
Spacing of the buttonholes specified with
[Spacing] (6)
*4
Position of next buttonhole to be sewn (sub
guidelines)
*5
Edge of fabric (sub guideline)
*6
Distance from the centerline of the buttonholes
to the edge of the fabric specified with
[Distance from edge] (9)
*7
Buttonhole foot “A+”
*8
Position of buttonhole to be sewn
*9
Touch to project the selected buttonhole
stitch beside the presser foot. (page 71)
5 Touch [Close].
Buttonhole Guidelines
Memo
• Touch to project the selected stitch
pattern along with the guidelines. (page 71)
Memo
• When buttonhole foot “A+” is lowered, the
buttonhole length is reflected in the projection.
a
b
c
d
e
f
h
g
i
*1
*8
*7
*5
*2
*3
*4
*6
*9
