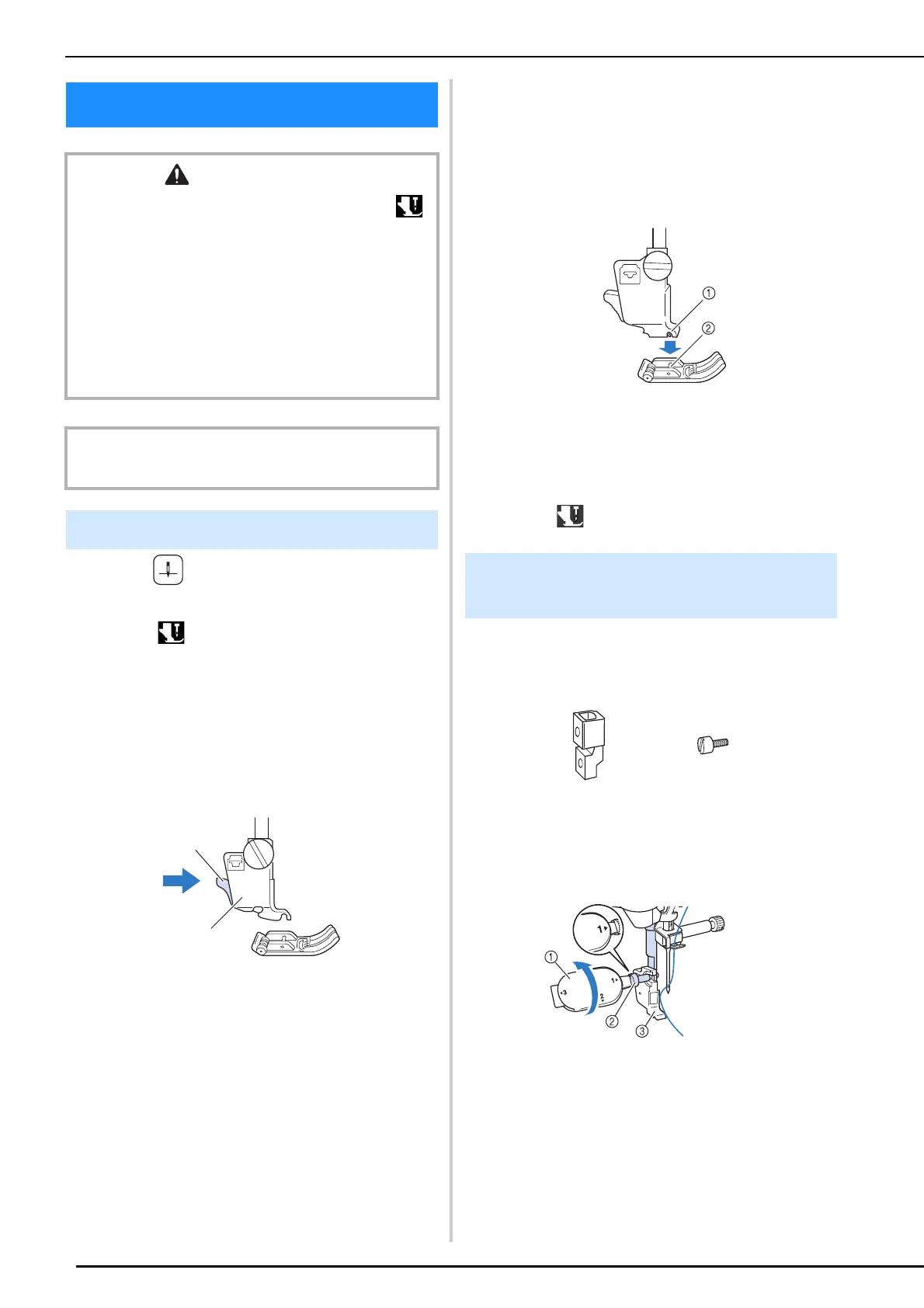

Brother EV1 - Attaching the Presser Foot with the Included Adapter; Changing the Presser Foot; Replacing the Presser Foot

Changing the Presser Foot
48
1 Press (Needle position button) to
raise the needle.
2 Touch to lock all keys and buttons.
* If the message [OK to automatically lower the
presser foot?] appears on the LCD screen, touch
[OK] to continue.
3 Raise the presser foot lever manually.
4 Press the black button on the presser
foot holder and remove the presser foot.
a Black button
b Presser foot holder
5 Place the new presser foot under the
holder, aligning the foot pin with the
notch in the holder. Lower the presser
foot lever manually so that the presser
foot pin snaps into the notch in the
holder.
a Notch
b Pin
6 Raise the presser foot lever to check that
the presser foot is securely attached.
7 Touch to unlock all keys and buttons.
Some presser feet require using the included
adapter and screw (small), for example, the free
motion echo quilting foot “E” and so on.
1 Remove the presser foot. (page 48)
2 Loosen the presser foot holder screw to
remove the presser foot holder.
a Multi-purpose screwdriver
b Presser foot holder screw
c Presser foot holder
3 Remove the presser foot holder screw
completely from the presser foot shaft.
Changing the Presser Foot
CAUTION
• When replacing the presser foot, be sure to touch
on the screen to lock all keys and buttons, otherwise
injuries may occur if the “Start/Stop” button or any other
button is pressed and the machine starts.
• Always use the correct presser foot for the selected
stitch pattern. If the wrong presser foot is used, the
needle may strike the presser foot and break, and may
cause injury.
• Make sure that the presser foot is installed in the correct
direction, otherwise the needle may strike the presser
foot, breaking the needle and causing injuries.
IMPORTANT
• Use presser feet made for this machine.
Replacing the Presser Foot
b
a
Attaching the Presser Foot with
the Included Adapter
