SV-ADAHRS-200/201 Installation and Configuration
SkyView System Installation Guide - Revision AA 5-3
Optional Components for Easier Installation of your SV-ADAHRS-200/201
Dynon Avionics offers a number of optional accessories for easier installation of your SV-
ADAHRS-200/201. These accessories can be obtained from Dynon Avionics Sales, or your Dynon
Avionics dealer.

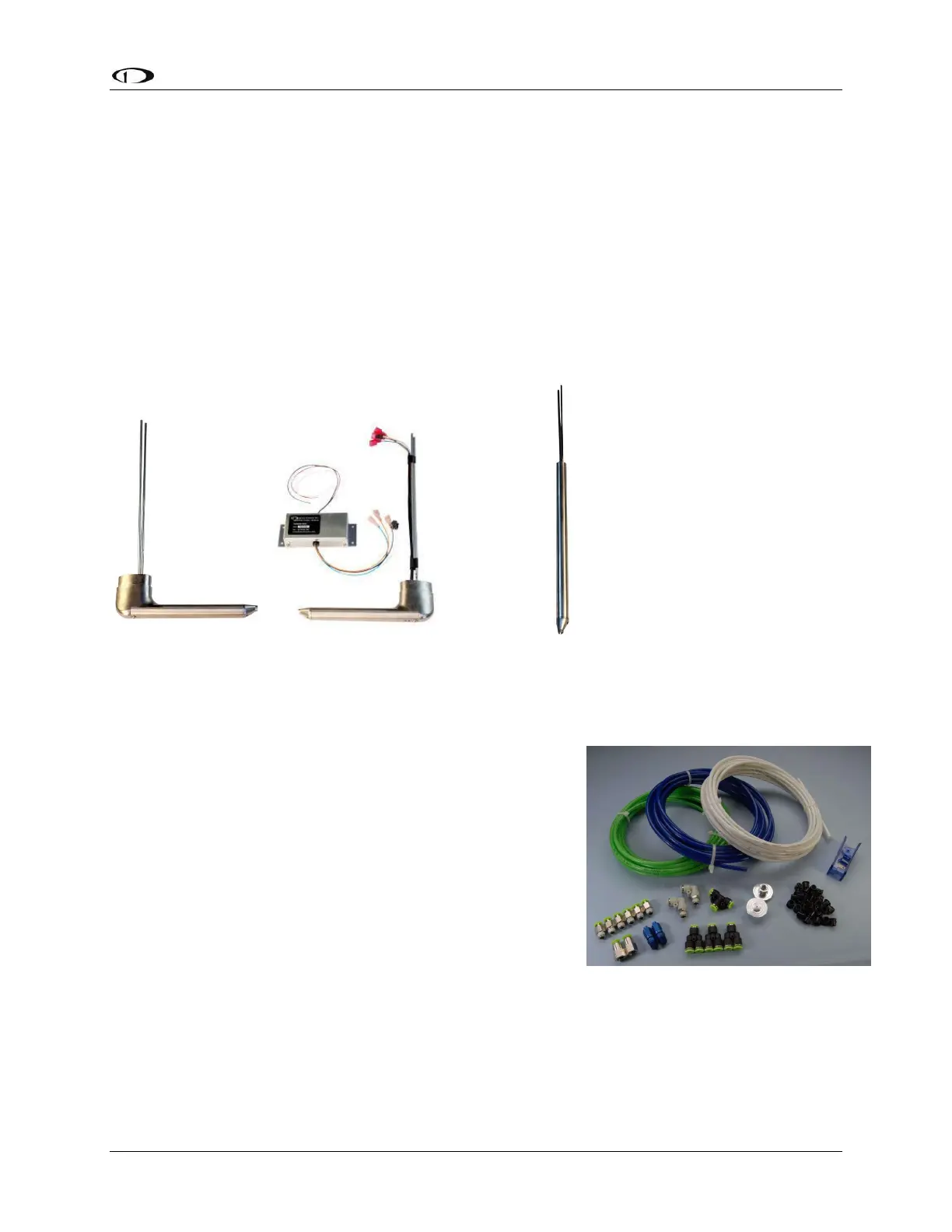

Dynon Avionics offers three different AOA/Pitot probes. These AOA/Pitot probes are specially
designed for the Dynon Avionics SV-ADAHRS-200/201 to enable the sensing and display of
Angle of Attack (AOA) on your SkyView display:
AOA/Pitot Probe, Under Wing, Unheated (P/N 100141-000). See Figure 42 below.
AOA/Pitot Probe, Under Wing, Heated (P/N 100667-000). See Figure 43 below.
AOA/Pitot Probe, Boom, Unheated (P/N 100532-000). See Figure 41 below.
Dynon Avionics offers the Pitot/Static/AOA Pneumatic
Installation Kit (P/N 102628-000) – see Figure 44. This kit
includes all required pneumatic components – 25 feet (7.62
meters) of tubing, fittings, a static port for installation on
the fuselage, even a tubing cutter. There are sufficient parts
to be able to split the pneumatic lines to connect both an
SV-ADAHRS-200 and an SV-ADAHRS-201.
