Basic SkyView Display Operation
3-2 SkyView System Installation Guide - Revision AA
Display Bezel Layout
The following diagram illustrates the front of an SV-D1000 display and its important parts.

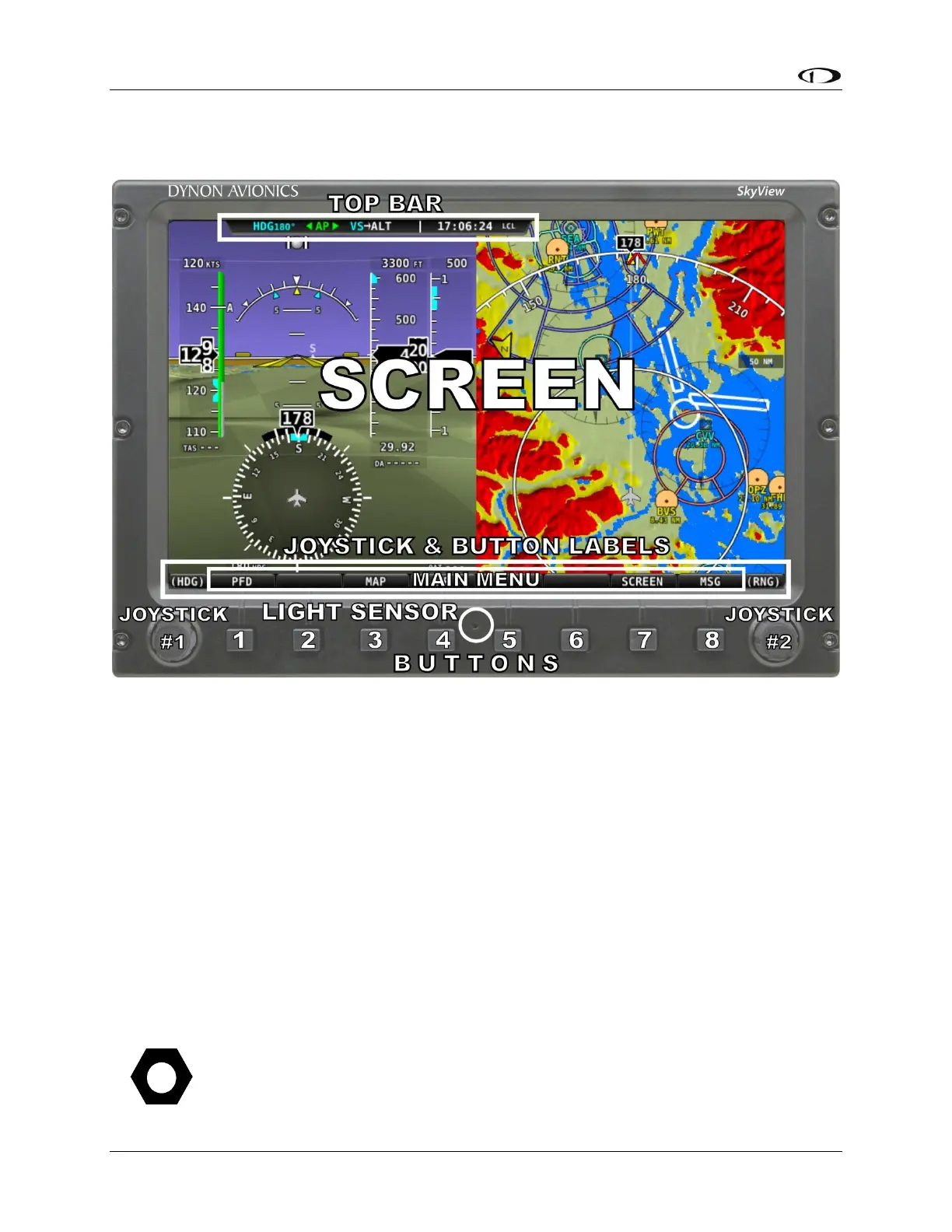

Figure 10 – SkyView Display Front Bezel Layout
Note the top bar, screen, joystick and button labels, light sensor, two joysticks and eight
buttons.
The top bar displays important textual information. The top bar shows time, autopilot status,
and transponder status (SV-XPNDR-261/262 or Garmin GTX-327 only). Reference the LOCAL
DISPLAY SETUP Menu Section of this guide for details on how to configure the top bar.
The screen shows PFD, Engine, and Moving Map data, configuration information, and system
alerts. Its layout is user-configurable. Reference the SkyView Pilot’s User Guide for instructions
on how to configure the layout of your screen.
Joystick and button labels are also on the screen. Joystick and button functionality is contextual
based on what is onscreen and these labels show the user the current function. For example, the
(RNG) label above joystick 2 in Figure 10 shows that turning that joystick will either increase or
decrease the range shown on the Moving Map.
