SkyView System Installation Guide - Revision AA 19-1
19. SV-KNOB-PANEL Installation
This section contains pre-installation considerations and installation instructions and details to
install the SV-KNOB-PANEL/H (Horizontal orientation) and SV-KNOB-PANEL/V (Vertical
orientation). Physically, electronically, and operationally, the two versions are identical, and
hereafter referred to SV-KNOB-PANEL.
SV-KNOB-PANEL is an optional control panel for a SkyView system that provides dedicated
function knobs for:
ALT
BARO
HDG/TRK
that are otherwise operated from the multifunction knobs on a SkyView display(s). Each SV-
KNOB-PANEL knob can be pressed to sync each bug/setting, the same as using the knobs on the
SkyView display. When an SV-KNOB-PANEL is installed in a SkyView system, the knobs on a
SkyView display can still be set to ALT, BARO, and HDG/TRK if desired. Up to two SV-KNOB-
PANELs can be installed in a SkyView system.

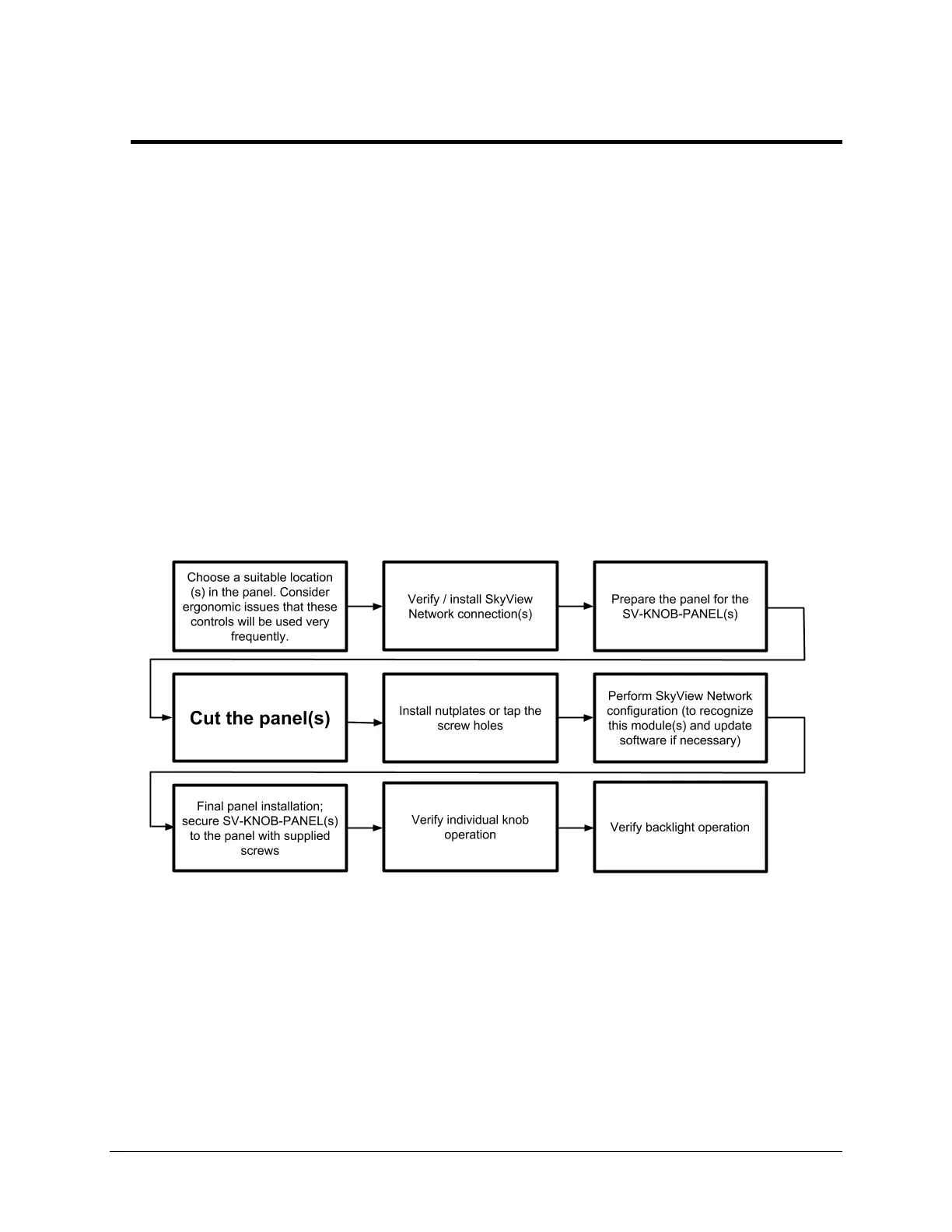

Figure 197 is an overview of suggested steps for SV-KNOB PANEL installation.
Figure 197 – Overview of SV-KNOB-PANEL Installation
