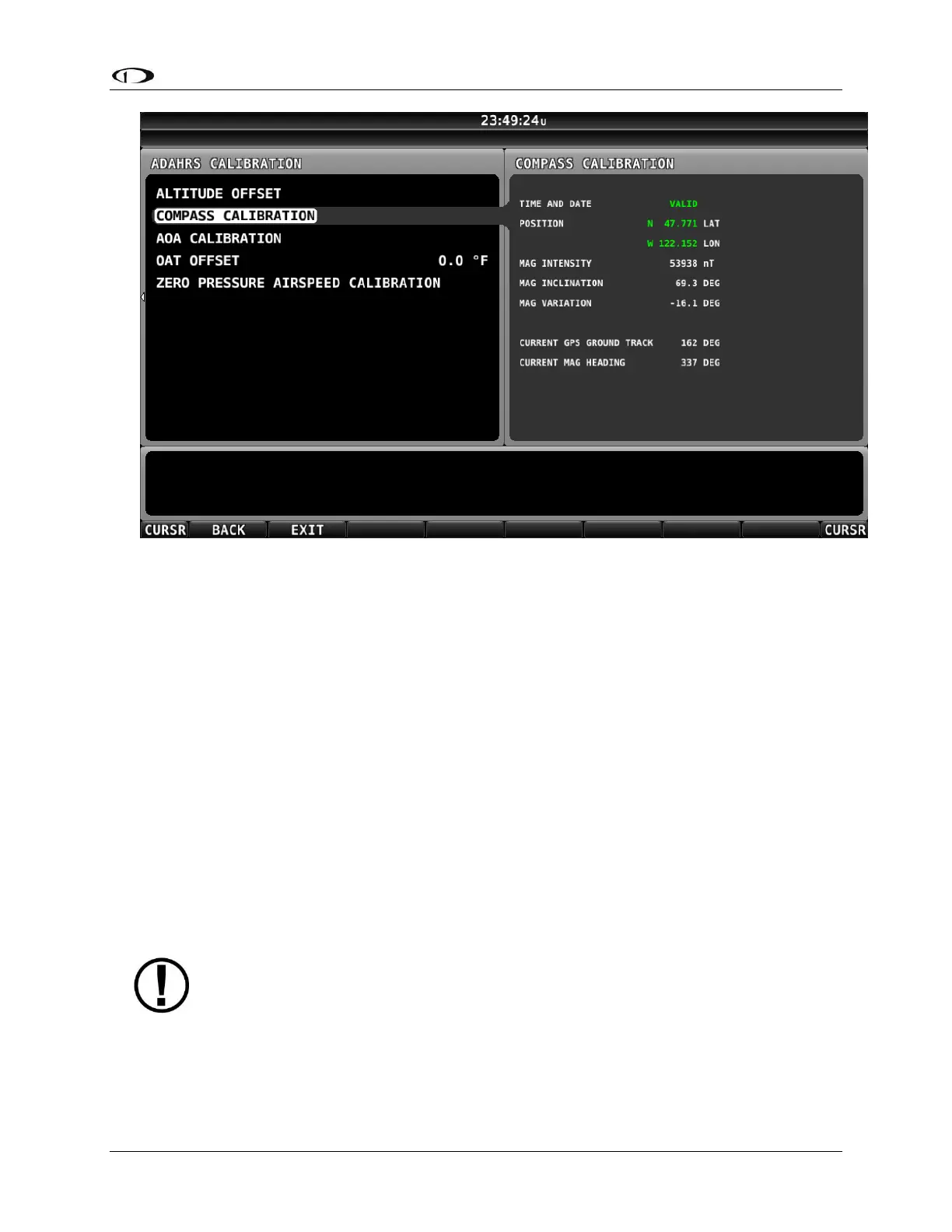

Figure 204 – On-ground COMPASS CALIBRATION Menu
5. Orient the aircraft to North, South, East, or West.
6. When the aircraft is stable at the chosen orientation, push the button indicating the
direction the aircraft is oriented in. Example – when the aircraft is pointed North, push
the NORTH button.
7. Wait for data collection to reach 100%.
8. Rotate to the next cardinal direction and repeat steps 4, 5, and 6 for any remaining
headings.
9. If the Compass Calibration fails, a message will appear:
CALIBRATION FAILED – S/N xxxx
10. CALIBRATION COMPLETE appears when calibration is complete. Press FINISH to return
to menu navigation mode.
In-flight Compass Calibration Procedure:
The in-flight compass calibration should be conducted on a clear, VFR day. Before
commencing the compass calibration, ensure that you have adequate altitude,
clear weather, no traffic, no obstructions in the flight path, great visibility, no
airspace conflicts, etc. It is recommended that clearing turns be performed before
executing each procedure.
It is recommended that you bring someone along for the in-flight compass
calibration procedure. At times the pilot’s attention will be divided between
documentation, configuring SkyView, and maintaining situational awareness.
