Accessory Installation and Configuration
SkyView System Installation Guide - Revision AA 15-21
Pitot/Static/AOA Pneumatic Installation Kit

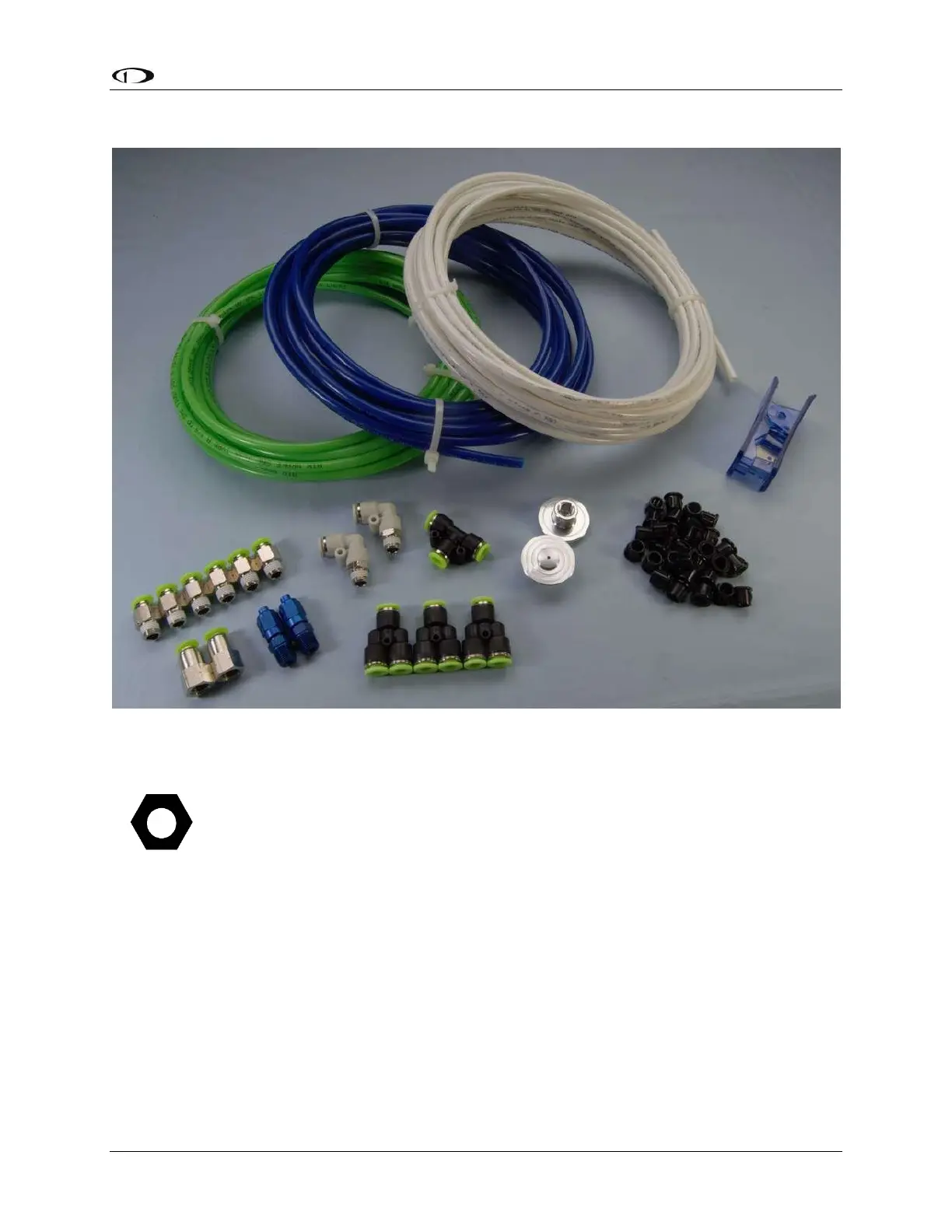

Figure 171 – Dynon Avionics Pitot/Static/AOA Pneumatic Installation Kit, P/N 102628-000
The instructions in this section is adapted from “AOA, Pitot, Static Installation
Guide – Plumbing Kit, Document 102708-000, Rev A that is included with this kit.
That documentation is more generic, intended for use with all Dynon Avionics
products that require AOA, Pitot, Static pneumatic connections. The instructions in
this section are streamlined specifically for SkyView systems.
These installation instructions are intended to make the task of plumbing this kit into your
aircraft as easy and understandable as possible. If there are questions which you find are not
answered within these instructions, please feel free to email or call Dynon Avionics Technical
Support (contact information at the front of this manual) for assistance. Photos sent via email
are very helpful and can improve our understanding of your situation or issue.
This kit does not include a Dynon Avionics AOA/Pitot Probe. For guidance on installing a Dynon
Avionics AOA/Pitot Probe, please reference the Dynon Avionics Heated and Unheated
AOA/Pitot Probe Installation Guide, Rev C (Document 100740-001).
