Appendix C: Wiring and Electrical Connections
23-14 SkyView System Installation Guide - Revision AA
SV-EMS-220/221 D25F
Thermocouple Connector Pin
EMS 25-pin
Thermocouple
Harness Wire Color*
Description
20
White
CHT3 WHITE
21
Yellow
EGT3 YELLOW
22
White
CHT2 WHITE
23
Yellow
EGT2 YELLOW
24
White
CHT1 WHITE
25
Yellow
EGT1 YELLOW
Table 118 – SV-EMS-220/221 D25F Thermocouple Connector
*Note – this is the 6-cylinder CHT/EGT harness, P/N 100399-002.
SV-ARINC-429 Pinout

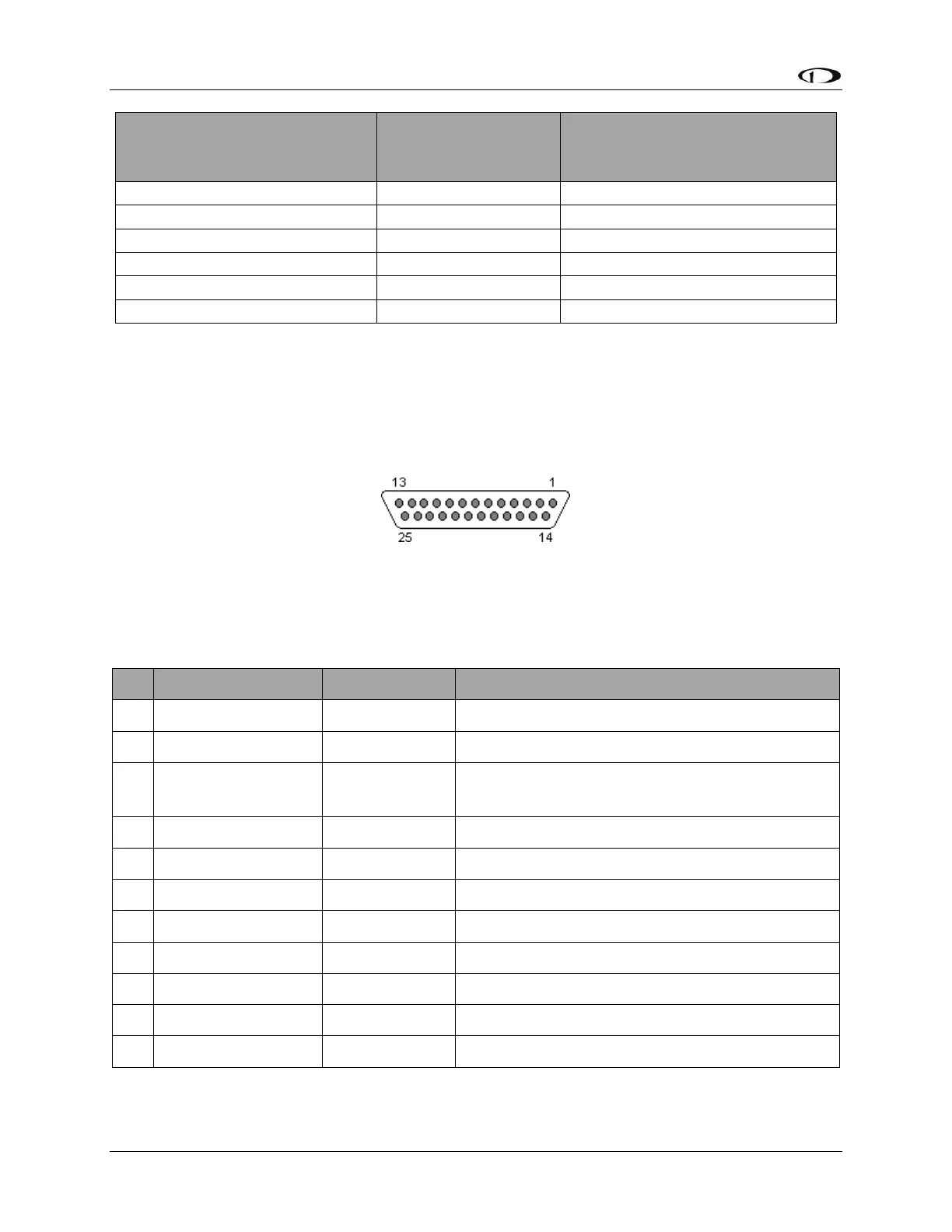

Figure 221 – SV-ARINC-429 D25M Connector Pin Numbering
The SV-ARINC-429 uses a D25F connector for connecting to ARINC-429 devices. Figure 221
above shows the pin numbering for the mating D25M connector, installed on the cable that
plugs into this connector, from the rear (pin insertion) view.
Pin
Wire Color
Function
Notes
1
N/A
No Connect
-
2
N/A
No Connect
-
3
(determined by
installer)
Serial RX
Aviation Format Only from
Connected ARINC-429 GPS
4
N/A
No Connect
-
5
N/A
No Connect
-
6
N/A
No Connect
-
7
N/A
No Connect
-
8
N/A
No Connect
-
9
N/A
No Connect
-
10
(determined by installer)
ARINC 2 RX B
-
11
(determined by installer)
ARINC 1 RX B
-
