Appendix C: Wiring and Electrical Connections
23-16 SkyView System Installation Guide - Revision AA
Note – this connector is NOT a SkyView Network Connector.
Pin
SV-ADS-B 470
Wire Color
Function
Notes
1
Red
10-30V DC
Connect to Aircraft Power
2
Orange
SV-ADSB-470 Serial RX
Data Input from SkyView
3
Violet
SV-ADSB-470 Serial TX
Data Output to SkyView
4
Black
Ground
Connect to Aircraft Ground
5
N/A
No Connect
-
6
N/A
No Connect
-
7
N/A
No Connect
-
8
N/A
No Connect
-
9
N/A
No Connect
-
Table 120 – SV-ADSB-470 D9F Pinout
SV-XPNDR-261/262 Pinout (SV-HARNESS-XPNDR)

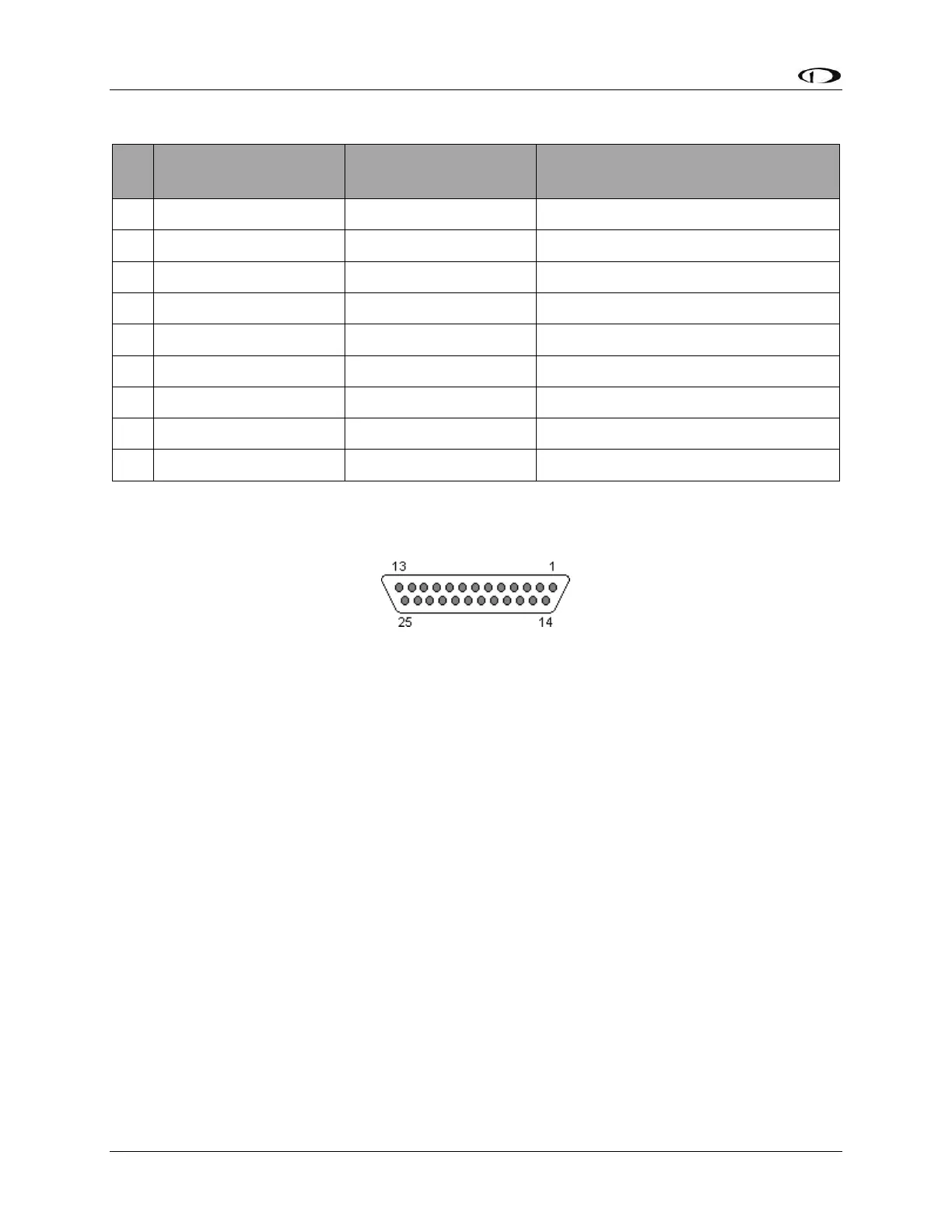

Figure 223 – SV-XPNDR-261/262 D25M Connector Pin Numbering
The SV-XPNDR-261/262 uses a D25F connector (included with the SV-HARNESS-XPNDR
harness). Figure 223 above shows pin numbering for the mating D25M connector, installed on
the SV-HARNESS-XPNDR, from the rear (pin insertion) view.
