Appendix C: Wiring and Electrical Connections
SkyView System Installation Guide - Revision AA 23-19
12
(determined by installer)
COPILOT TRIM RIGHT
Motor 2: Pin 14 polarity is +
Pin 15 polarity is -
13
(determined by installer)
COPILOT TRIM LEFT
Motor 2: Pin 14 polarity is -
Pin 15 polarity is +
14
(determined by installer)
MOTOR 2 WIRE #1
Pin 10 or Pin 12 grounded Pin 14 polarity
is +, Pin 15 polarity is - (Motor rotates in
one direction)
Pin 11 or Pin 13 grounded Pin 14 polarity
is -, Pin 15 polarity is + (Motor rotates in
the other direction)
15
(determined by installer)
MOTOR 2 WIRE #2
Table 121 – SV-AP-PANEL D15M Connector
SV-COM-PANEL Pinout (D15M)

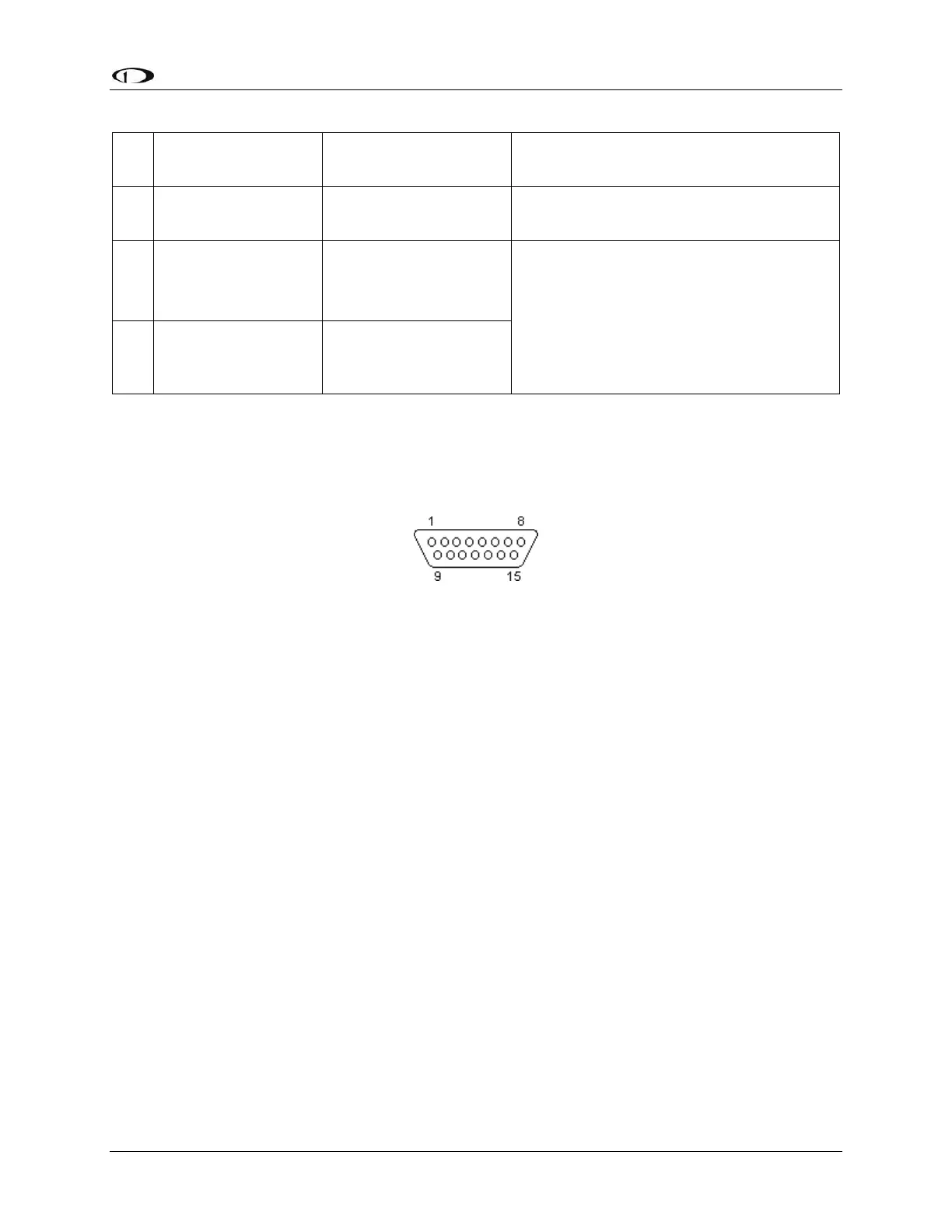

Figure 225 – SV-COM-PANEL D15F Connector Pin Numbering
The SV-COM-PANEL-uses a D15M connector for connecting to the SV-COM-425 or SV-COM-T8
COM radio module. Figure 225 above shows the pin numbering for the mating D15F connector,
installed on the cable that plugs into this connector, from the rear (pin insertion) view.
