SV-ADSB-470 Installation and Configuration
14-2 SkyView System Installation Guide - Revision AA

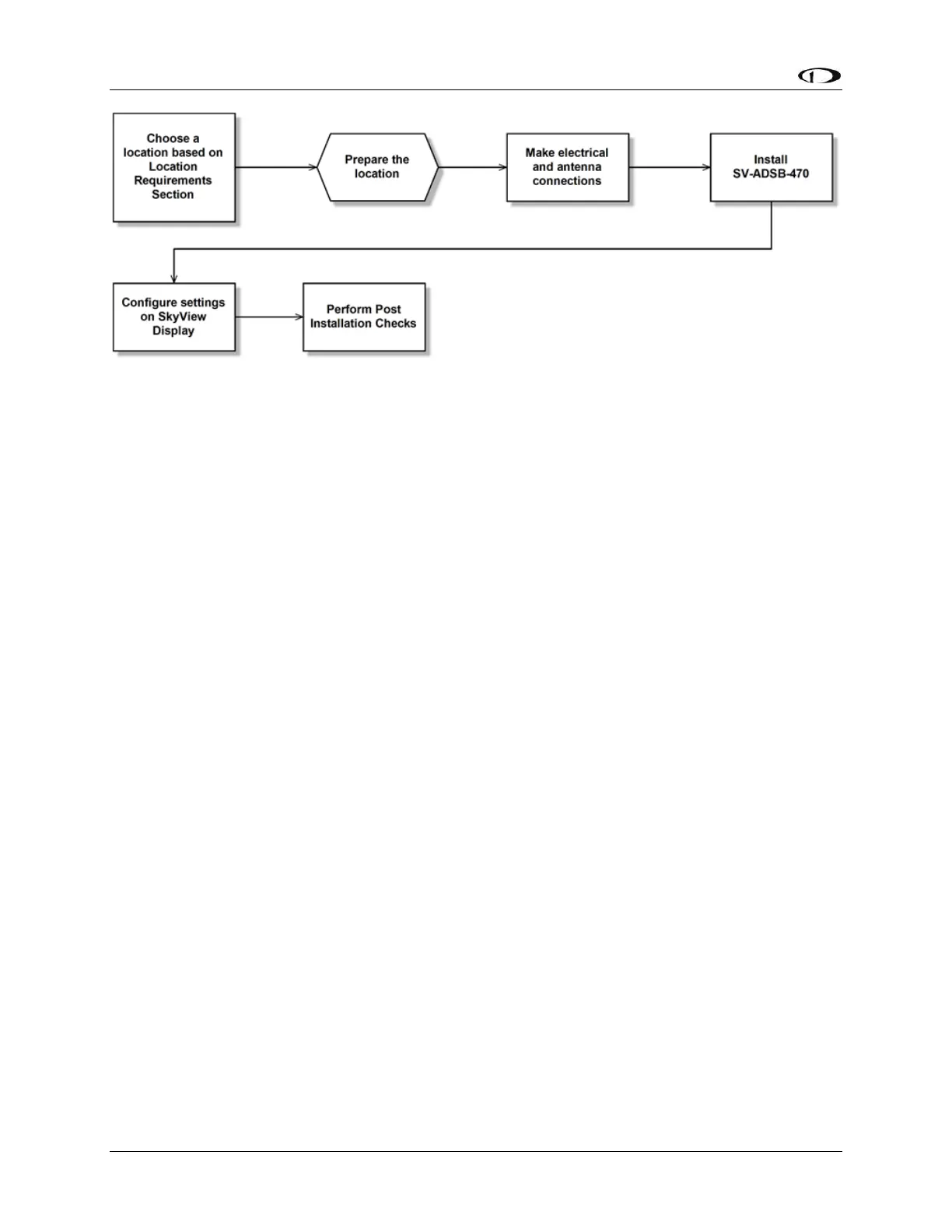

Figure 156 – Suggested SV-ADSB-470 Installation and Configuration Procedure
Physical Installation
The SV-ADSB-470 is designed to be mounted in any convenient location in the cockpit, the
cabin, or an avionics bay.
The following guidelines should be followed, remembering to allow adequate space for
installation of cables and connectors.
Select a position in the aircraft that is not too close to any high external heat source. (The
SV-ADSB-470 is not a significant heat source itself and does not need to be kept away from
other devices for this reason).
Avoid sharp bends and placing the cables too near to the aircraft control cables.
Avoid locations that are subject to severe vibration.
Avoid locations that are subject to extreme humidity.
Leave ample working room for electrical connections.
