Accessory Installation and Configuration
SkyView System Installation Guide - Revision AA 15-9
SkyView Video Input Adapter
The SkyView Video Input Adapter (P/N 102211-000) allows display of a video source (nominally,
a camera), displayed either 100% (SkyView Classic only), or 50% of the SkyView Classic or
SkyView HDX display to which it is connected. The video image on one SkyView display cannot
be “shared” to other SkyView displays. Only one Video Input Adapter can be used per SkyView
display.
The SkyView Video Input Adapter works with:
SV-D700 displays S/N 4000 and higher
SV-D1000 displays S/N 6000 and higher
All SV-D1000T (SkyView Touch) displays (including units upgraded from SV-D1000)
All SV-HDX800 displays
All SV-HDX1100 displays
If you have a display with an earlier S/N, please contact Dynon Avionics Technical
Support (contact information at the beginning of this manual). The Video Input
Adapter is supported only in SkyView Software v11.0 (and later). It is not
functional in any earlier version of SkyView Software.
SkyView Classic and SkyView HDX only support the
Video Input Adapter available from Dynon Avionics.
Although other similar adapters are available, they
will likely not function with SkyView and are not
supported by Dynon Avionics.

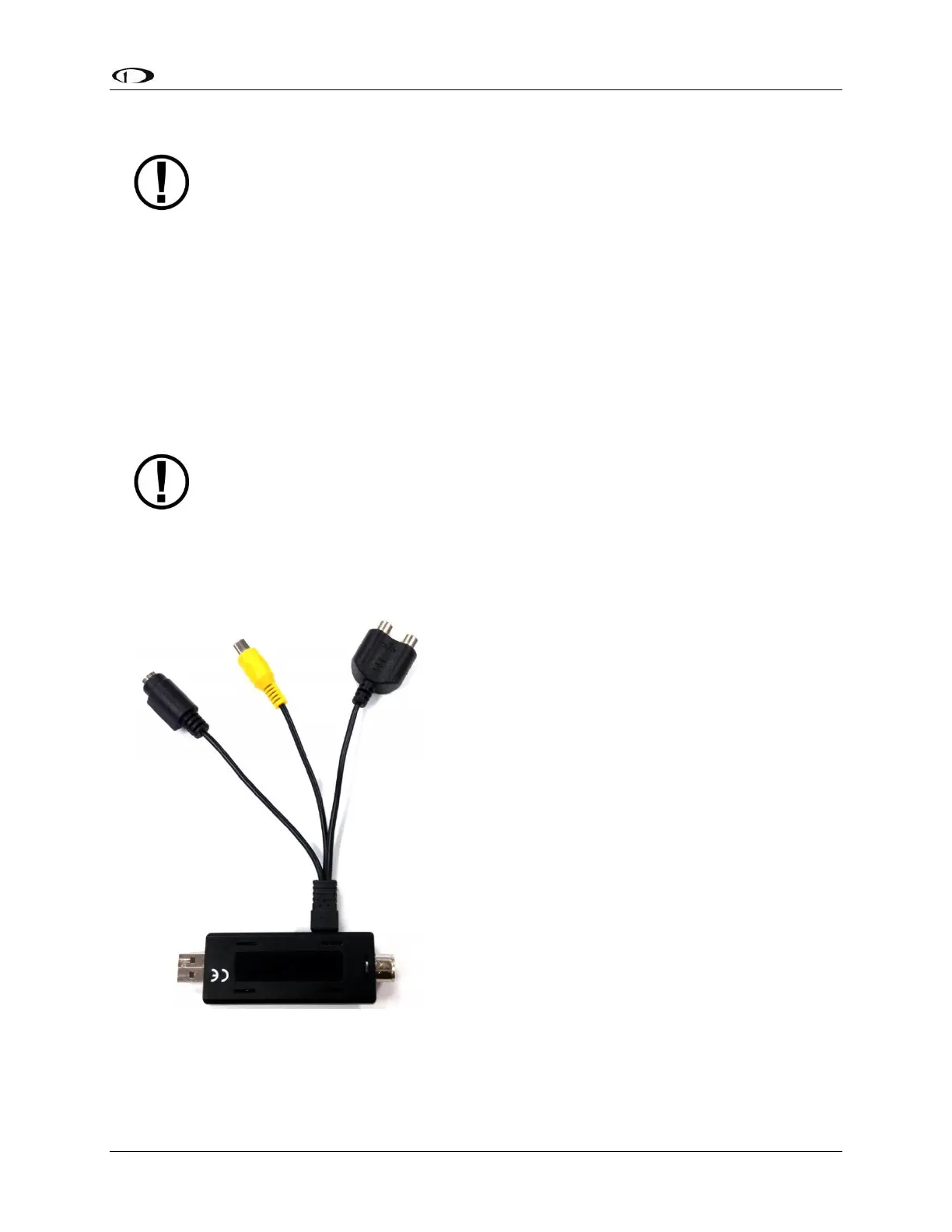

The Video Input Adapter includes various connectors
for multiple input sources, but in SkyView, only the
Composite Video (the middle cable in the illustration
at left – Yellow, single RCA connector) and the S-
Video (the left cable in the illustration at right, 4-pin
mini-DIN) inputs are functional. The Composite
Video and S-Video inputs are compatible with both
NTSC (US analog video standard) and PAL (non-US
analog video standard) video sources.
There is only one video input – you can use either
the Composite input or the S-Video input, but not
both.
Dynon Avionics does not supply cameras or other
video sources, or cabling associated with video
devices. The video device will require power that is not supplied or controlled by SkyView.
