SV-ADAHRS-200/201 Installation and Configuration
SkyView System Installation Guide - Revision AA 5-5

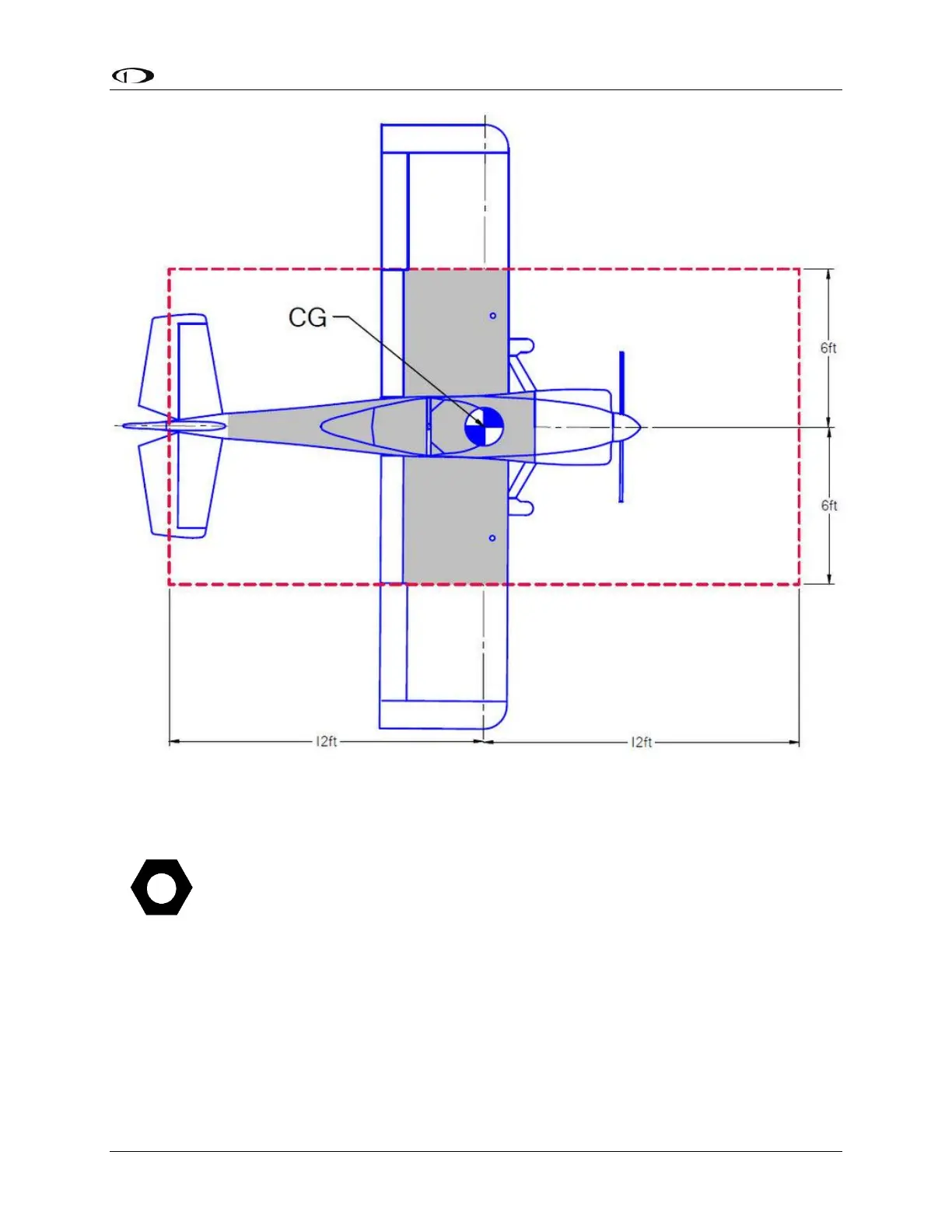

Figure 46 – SV-ADAHRS-200/201 with Respect to Center-of-Gravity
The instructions below regarding “magnetic suitability” are in reference to the
internal magnetometer of the SV-ADAHRS-200/201. If the SV-MAG-236 Remote
Magnetometer is installed in your SkyView system, the instructions regarding
“magnetic suitability” for the SV-ADAHRS-200/201 can be disregarded – the
internal magnetometer of the SV-ADAHRS-200/201 is disabled in lieu of the SV-
MAG-236 Remote Magnetometer. Installation instructions for the SV-MAG-236
are in Section 20: SV-MAG-236 Installation and Configuration.
The location of the SV-ADAHRS-200/201 should also be magnetically benign. Given that it may
be difficult or impossible to avoid all sources of magnetic interference, it is possible to
characterize and compensate for small, static magnetic fields with calibration. Calibration
cannot, however, compensate for dynamic magnetic fields (e.g., AC currents, non-constant DC
currents, and non-stationary ferrous material such as electric turn coordinators and control
