SV-EMS-220/221 Installation and Configuration
7-52 SkyView System Installation Guide - Revision AA
Rotax Sensor
Connector Pin
Rotax Connector
Wire Color
SV-EMS-220/221
Wire Color
SV-EMS-220/221
Pin Number
N/A
White
White / Yellow
6
N/A
Red
Red
It is acceptable to
share this pin / wire
with other sensors;
see Table 32 above.
15
It is acceptable to
share this pin / wire
with other sensors;
see Table 32 above.
N/A
Black (if present)
Do Not Connect
N/A
Table 54 – (pre-2008) Rotax Oil Pressure Sensor
In late 2012, Rotax further switched to a new oil pressure sensor (Rotax P/N 456180). It is
functionally identical to the previous Honeywell (Rotax P/N 956413) sensor, and connects in the
same fashion as it. However, the connector and wiring for the sensor that Rotax includes with
the engine may require some assembly. See the diagram below for the pinout of the connector.
Connect the wire connected to sensor pin B of the sensor to SV-EMS-220/221 D37 pin 15 (+12
Volts Auxiliary), the wire connected to sensor pin C to SV-EMS-220/221 D37 pin 6. Sensor pin A
need not be connected at all. Select the correct sensor type as described in the EMS Sensor
Definitions, Mapping, and Settings Section.

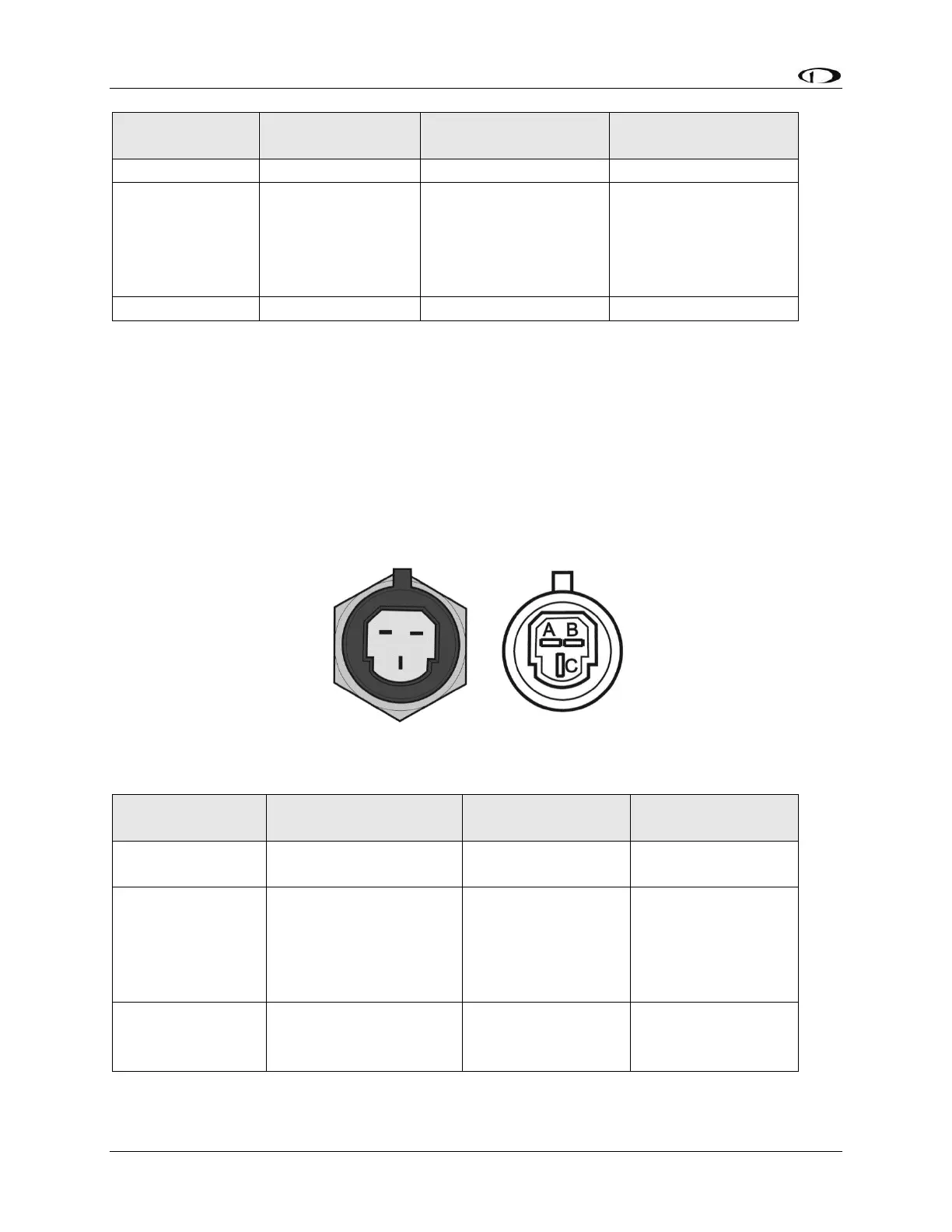

Figure 69 – Rotax Oil Pressure P/N 456180 pinout
Both views are the sensor connector (not the cable connector).
Rotax Sensor
Connector Pin
Rotax Connector
Wire Color
SV-EMS-220/221
Wire Color
SV-EMS-220/221
Pin Number
A
N/A
Do Not Connect
N/A
Do Not Connect
N/A
Do Not Connect
B
(Customer provided,
suggested color
is Red)
Red
It is acceptable to
share this pin / wire
with other sensors;
see Table 32 above.
15
It is acceptable to
share this pin / wire
with other sensors;
see Table 32 above.
C
(Customer provided,
suggested color is
White)
White / Yellow
6
Table 55 – (2012 and later) Rotax Oil Pressure Sensor
