SV-XPNDR-261/262 Installation and Configuration
11-18 SkyView System Installation Guide - Revision AA

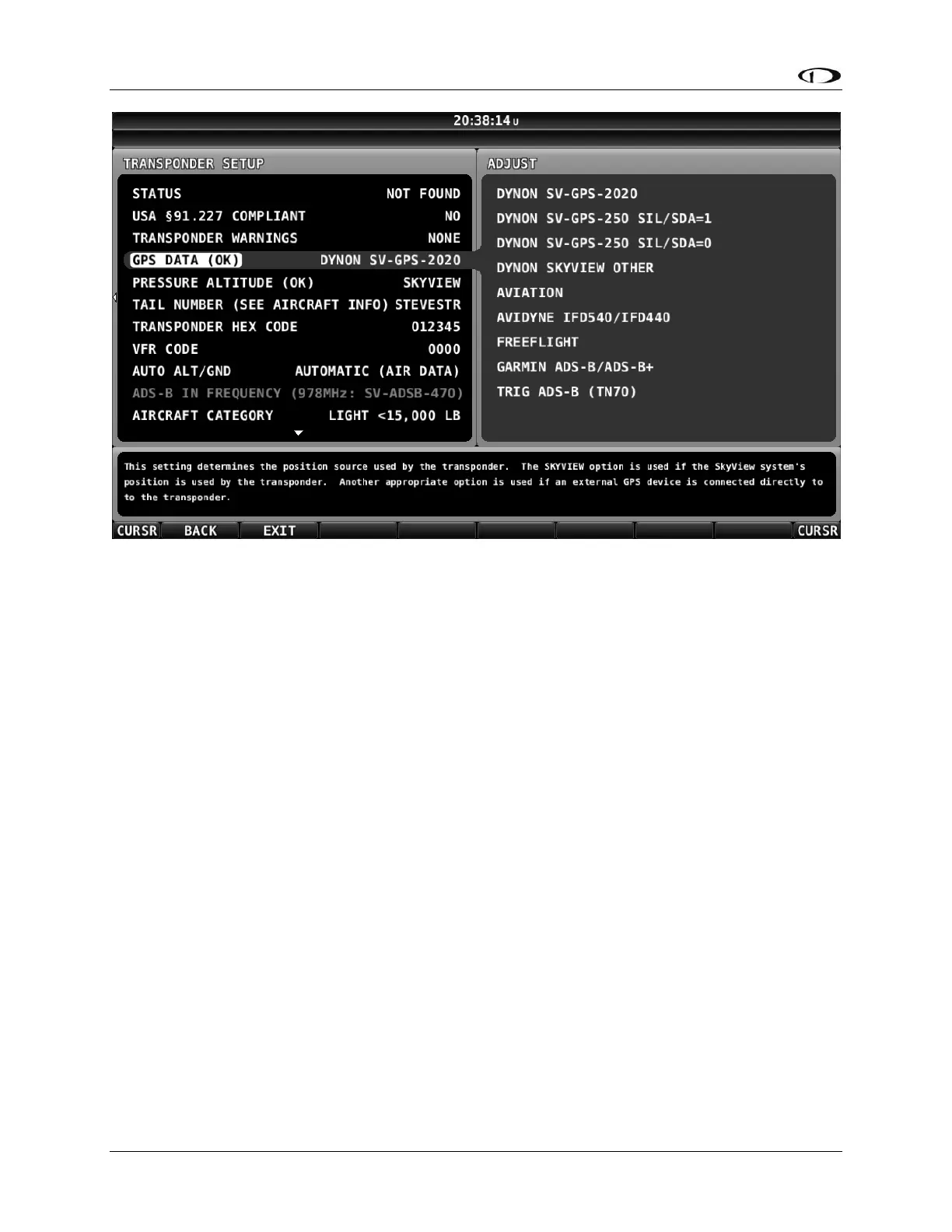

Figure 136 - SV-XPNDR-261/262 GPS DATA Setup
o DYNON SV-GPS-2020:
 Select this option if you have an SV-GPS-2020 installed.
 The following ADS-B performance parameters will be transmitted:
 SDA: 2
 SIL: 3
 NACp: Dynamic, as reported by GPS.
 NIC: Dynamic, as reported by GPS.
 NACv: 1 (10m/s accuracy)
o DYNON SV-GPS-250 SIL/SDA=1: Select this option if:
 You do not have an SV-GPS-2020 installed, and
 You have an SV-GPS-250 installed as your primary GPS.
 As of early 2016, this setting is required to receive ADS-B Traffic (TIS-B)
from the ADS-B system.
 This setting is the default if you have an SV-GPS-250 as your primary GPS
and you update to SkyView Software v14.0 or later.
 The following ADS-B performance parameters will be transmitted:
 SDA: 1
 SIL: 1
 NACp: 8, 9 or 10. Dynamic, as reported by GPS.
 NIC: 8 (Containment radius <0.1 NM)
 NACv: 1 (10m/s accuracy)
o DYNON SV-GPS-250 SIL/SDA=0: Select this option if:
