SkyView Network Hub (SV-NET-HUB)
The SV-NET-HUB SkyView Network hub contains
5 SkyView Network ports. All 5 ports are
identical, thus any of the 5 ports can be used to
connect to your displays, modules, and/or
autopilot servos. Servo power should be broken
out, as is normally done. See the Autopilot Servo
Installation section of this manual for more
information about Servo wiring. The SkyView
Network Hub is designed to ease the distribution
of SkyView Network connections to multiple
SkyView Network components by allowing easy expansion of a SkyView network without
relying on a more expensive network of individual splitters. It also allows for fewer overall
connections over the splitter-only method that was primarily used prior to March 2012 as the
hub-based method requires no gender changer connectors.

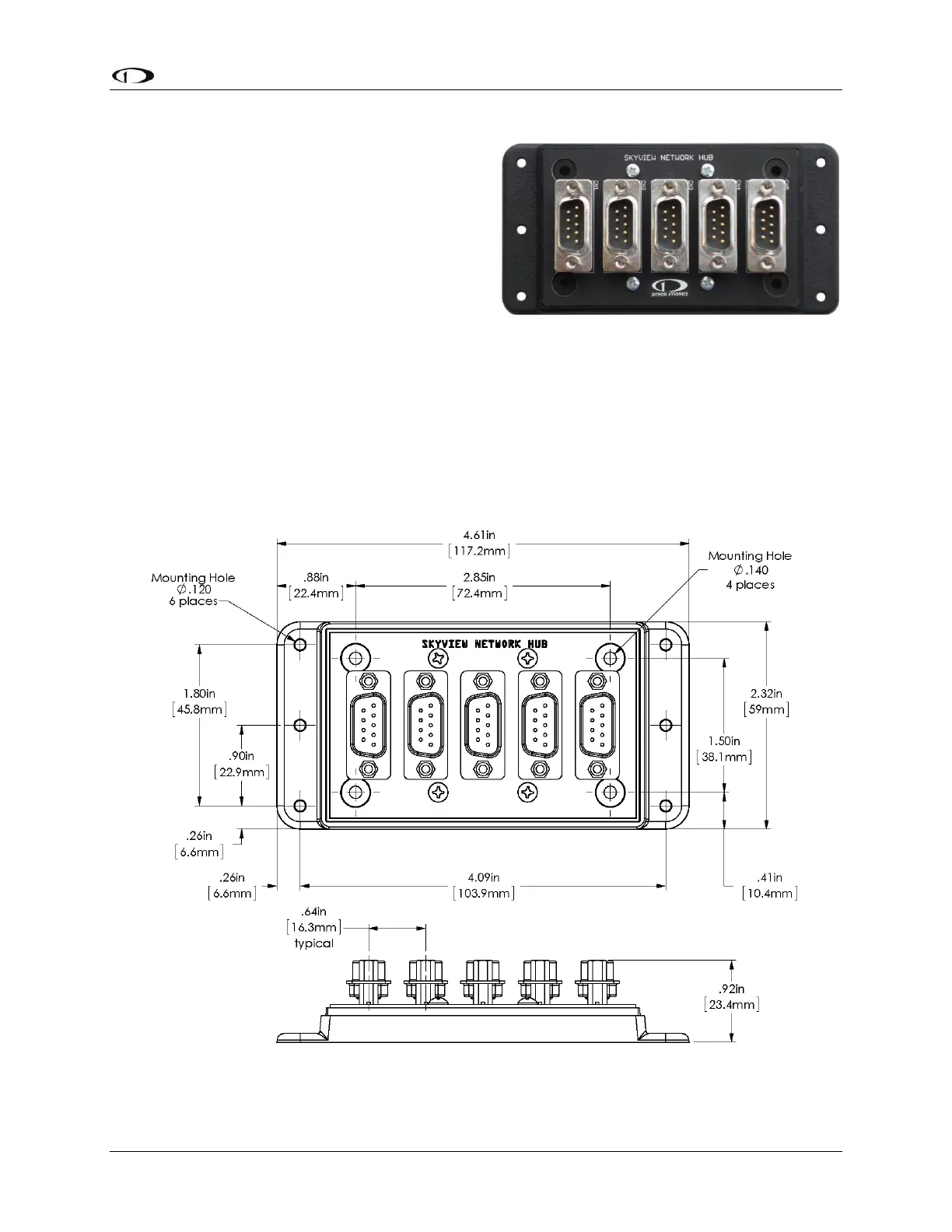

Figure 4 – SV-NET-HUB Dimensions
