Accessory Installation and Configuration
SkyView System Installation Guide - Revision AA 15-23

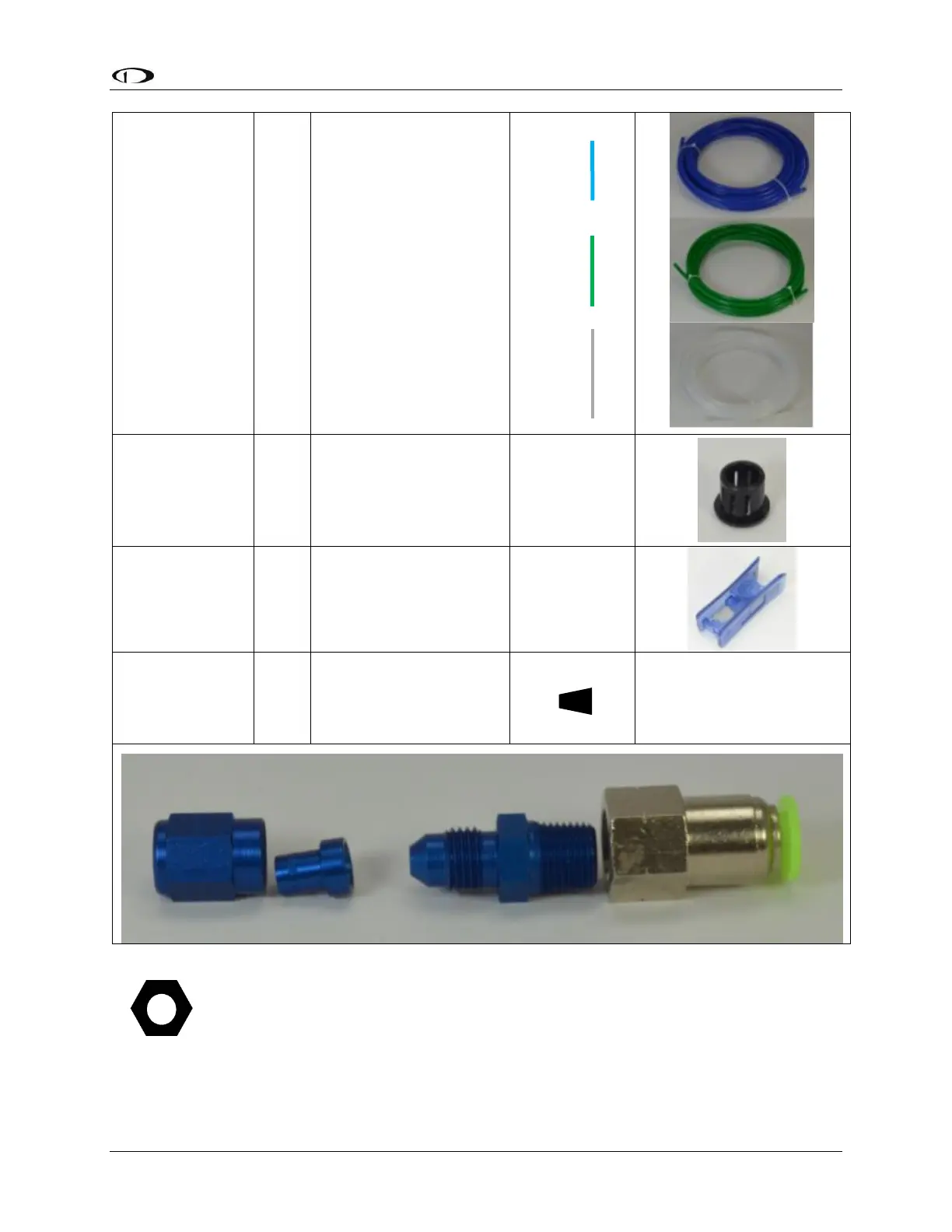

102632-000
102632-001
102632-002
25 ft.
25 ft.
35 ft.
Polyethylene Tube
Blue (-000)
Green (-001)
White (-002)
102642-000
30
Snap Bushing
N/A
102641-000
1
Tubing Cutter
N/A
102630-000
102642-000
102643-000
102644-000
2
Flared Coupling
Assembly
See Below
Note: Parts may look slightly different than pictured.
Please read this installation information in its entirety before beginning your
installation of your AOA/Pitot/Static pneumatic system. Modifications or
adjustments may be necessary for your individual aircraft.
The Dynon Avionics Pitot/Static/AOA Pneumatic Installation Kit uses Quick-Disconnect fittings
for the plumbing of this kit. Tubing is mounted into these fittings using stainless steel retainers
that allow tubing to enter the fitting but prevent the tubing from sliding back out unless the
AOA
GREEN
BLUE
WHITE
Pitot
Static
