SV-COM-C25 Installation and Configuration

16-4 SkyView System Installation Guide - Revision AA

 COM Antenna, coaxial cable, terminated to BNC Male connector (or cable and connector is

included with your COM antenna). The SV-COM-C25 is compatible with aircraft COM

antennas commonly available.

Mounting Dimensions

The following diagrams are NOT to scale. However, paper templates are included

with your SV-COM-C25 and may also be downloaded from

http://docs.dynonavionics.com.

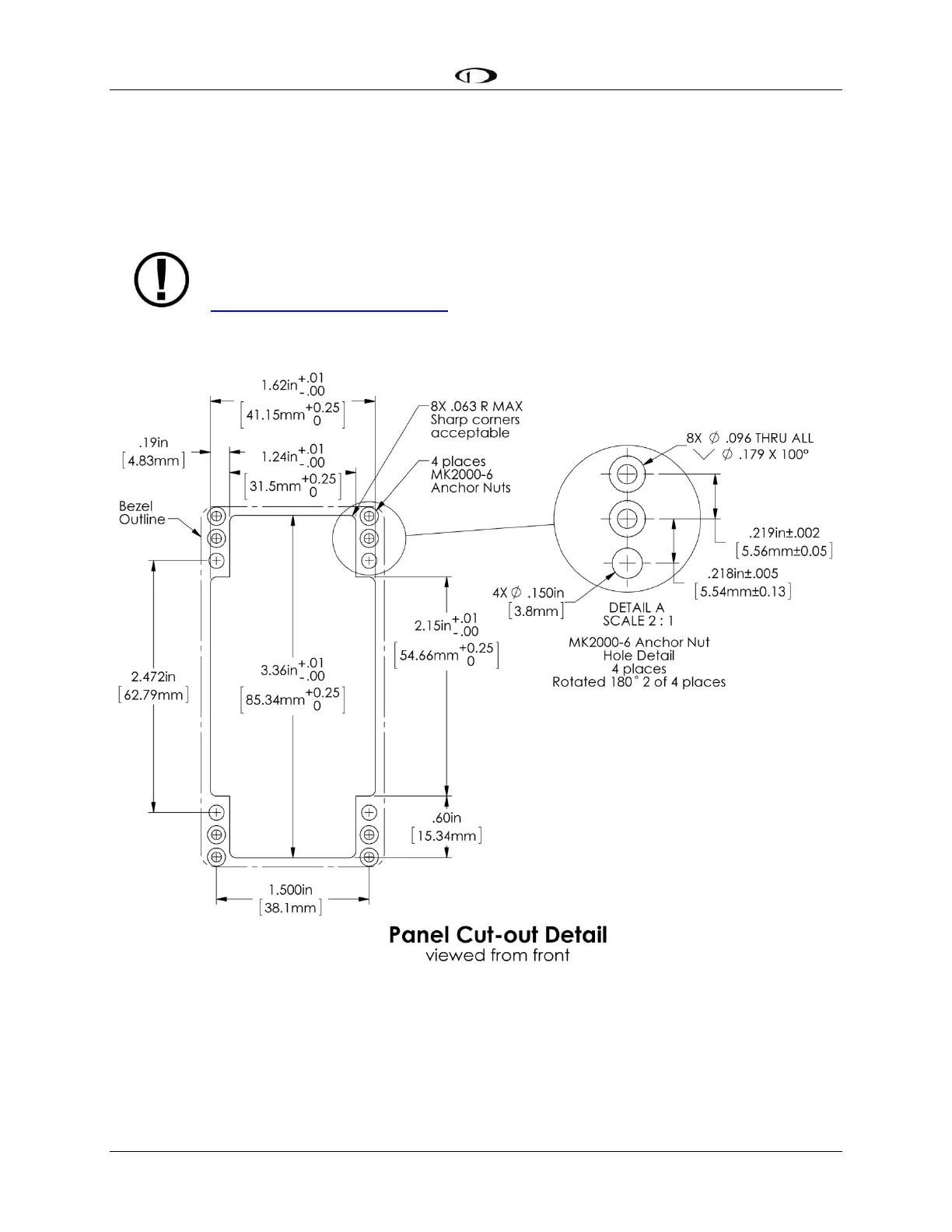

Figure 177 – SV-COM-PANEL - VERTICAL Panel Cutout and Mounting Hole Dimensions - NOT ACTUAL SIZE
