Basic SkyView Display Operation
3-4 SkyView System Installation Guide - Revision AA
Because it incorporates an advanced touch screen interface, SkyView HDX knobs (unlike
SkyView Classic and SkyView SE) do not move (click) up, down, left, or right – they only rotate
clockwise and counter-clockwise. Like SkyView Classic and SkyView SE’s knobs, SkyView HDX
knobs incorporate a pushbutton function.

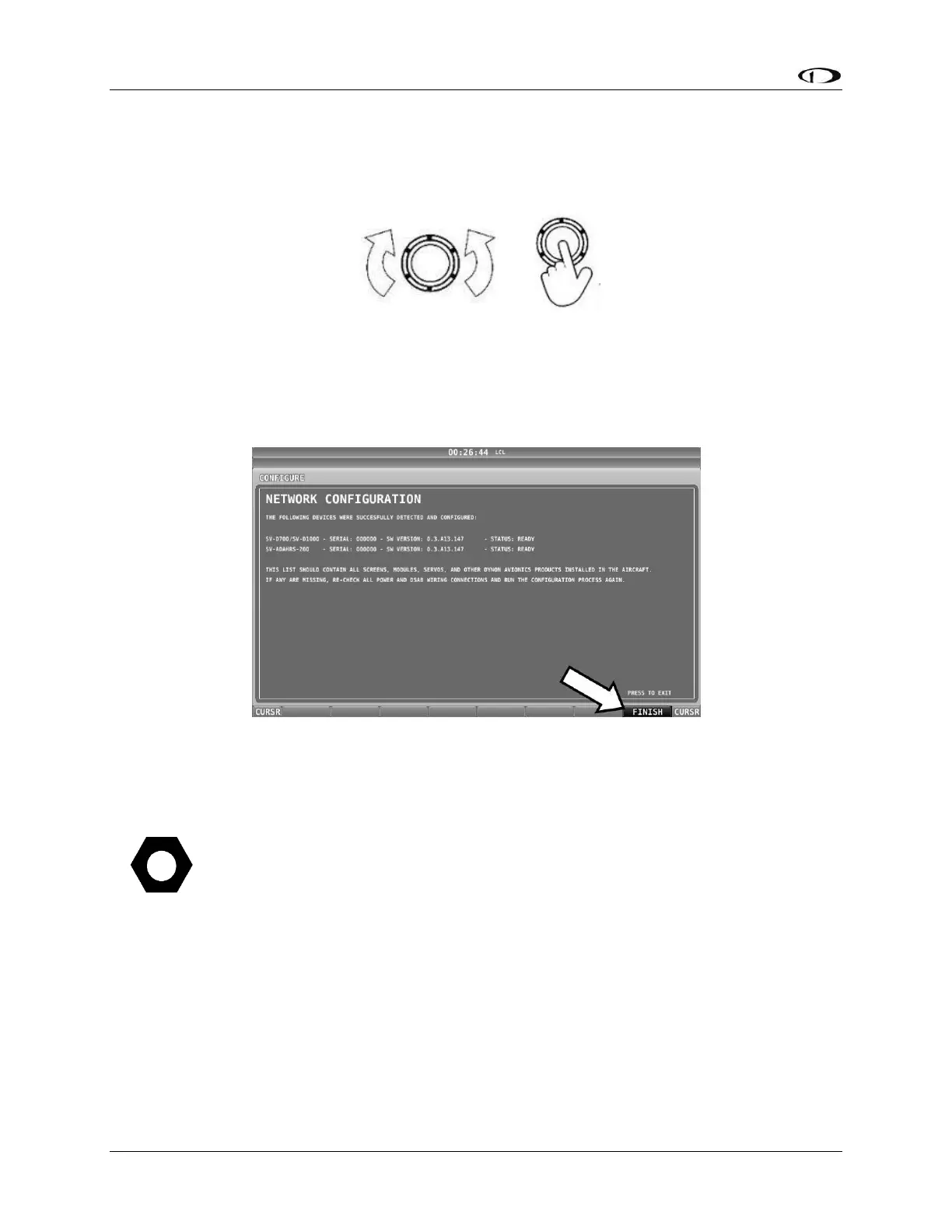

Figure 12 – SkyView HDX Knob Rotation and Pushbutton Action
A keypad button has a function if there is a label above it. If there is no label, there is no
function. The figure below shows an example button label.
Figure 13 – Example Button Label
When you press a button, its label is highlighted. When you let go, that button’s action is
invoked.
Button labels are called out in all capital letters such as BACK, EXIT, FINISH, and
CLEAR. This guide directs users to press a button by using its label. For example,
when this guide asks you to press FINISH, it is asking you to press the button with
the FINISH label above it.
SkyView Classic and SkyView SE Joystick and Button Operation Example
When a parameter needs to be adjusted, the SkyView Classic and SkyView SE’s joystick controls
are used to change the parameter. When setting values with the joystick, each character
(symbol, letter or digit) must be selected and adjusted successively.
