If you use a magnet to test whether possible interfering materials are non-
magnetic, do not actually touch the magnet to the material you are testing, as this
contact can cause the material you are testing to become magnetized.
Move a handheld compass throughout the space surrounding your intended
location to get a rough idea of the suitability of the area. Note that this test should
be done with major aircraft systems operating (e.g., strobe lights and radios on)
because some systems can cause magnetic interference. If the compass needle
deviates significantly from magnetic North or cycles back and forth, the location is
not ideal for ADAHRS installation.

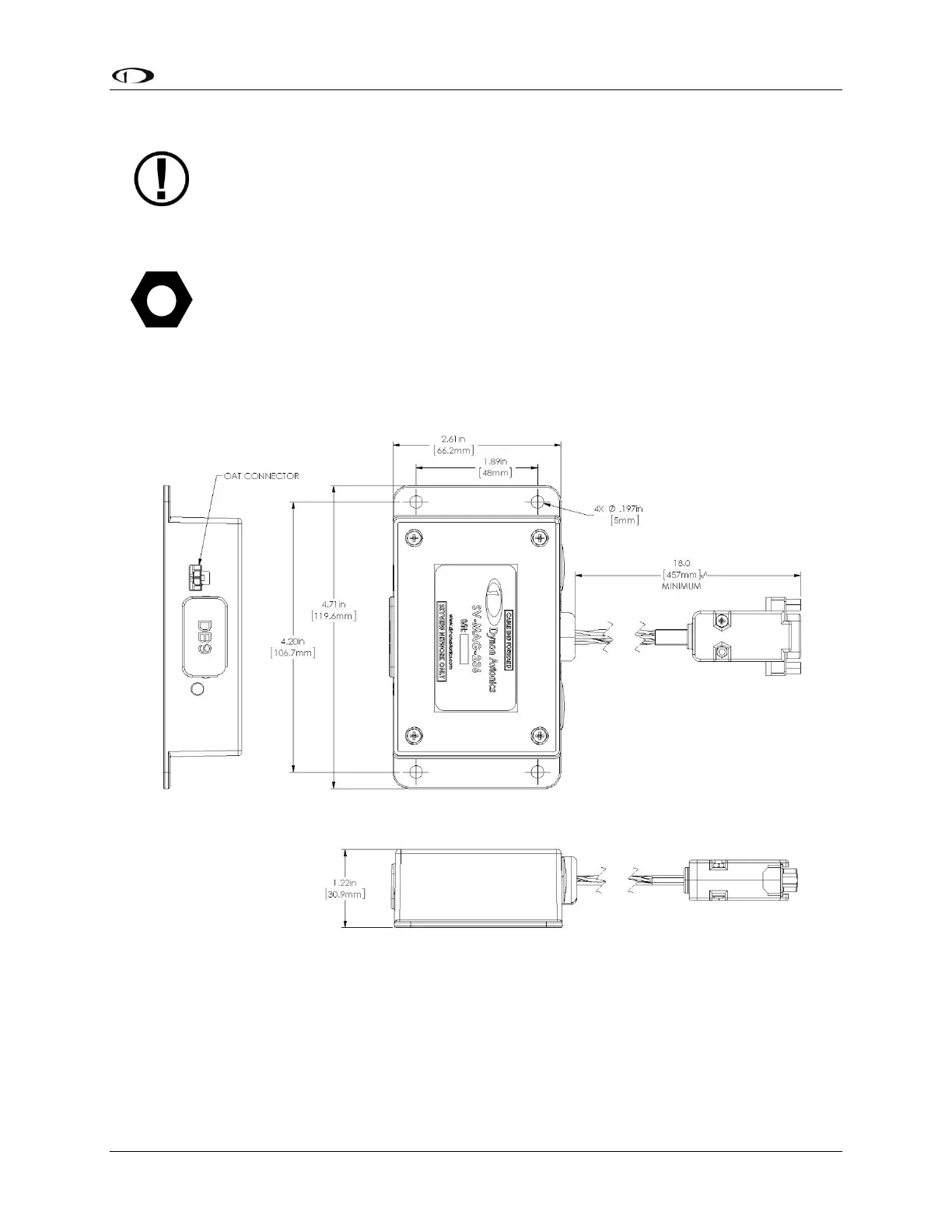

The diagram below shows the important mounting dimensions of the SV-MAG-236.
Figure 203 – SV-MAG-236 Mounting Dimensions
As with the SV-ADAHRS-200/201, an SV-MAG-236 should be mounted within one degree of
parallel to all three aircraft axes. The SV-MAG-236 should be oriented such that:
The SV-MAG-236’s mounting tabs must be oriented towards the bottom of the aircraft.
