SkyView Display Installation and Configuration
SkyView System Installation Guide - Revision AA 4-7

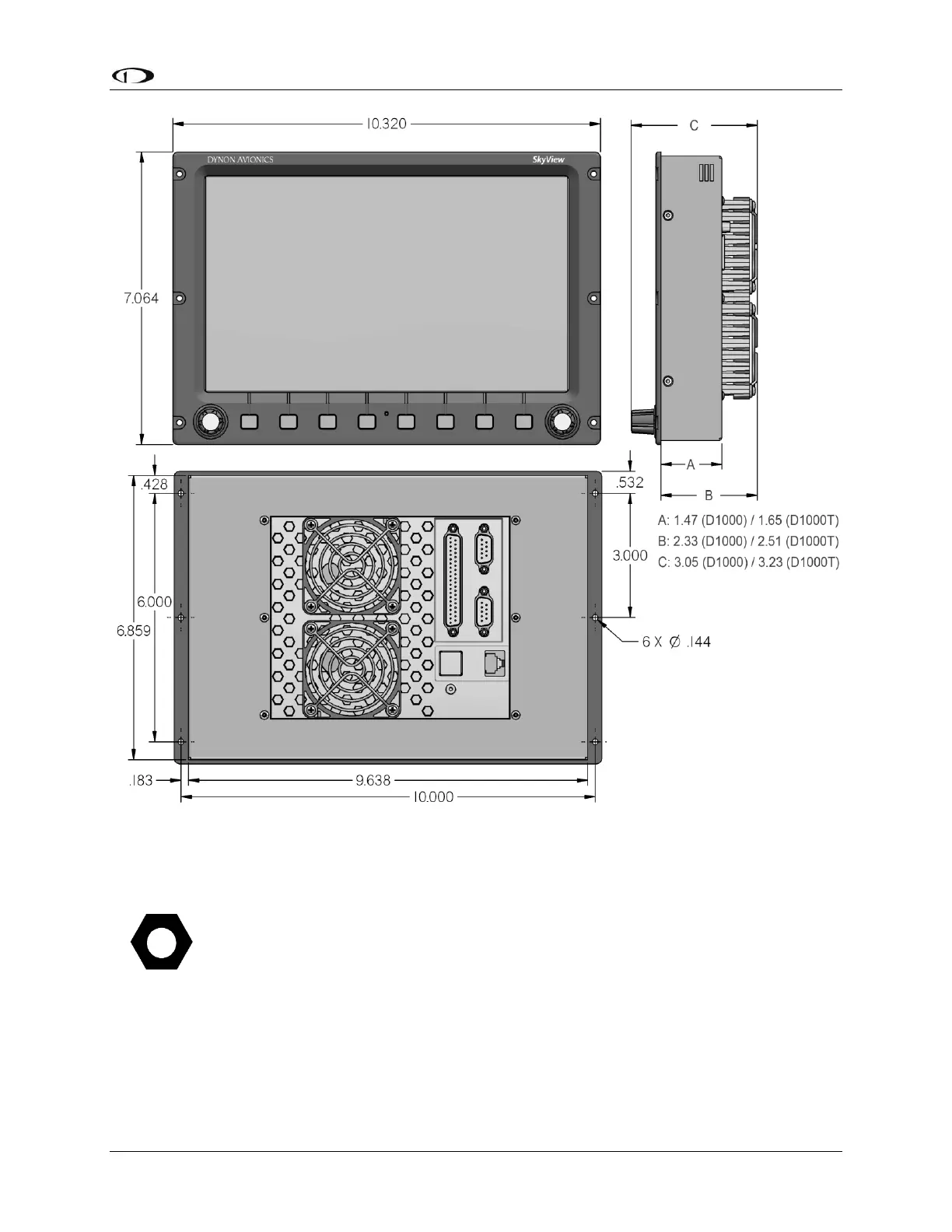

Figure 23 – SV-D900, SV-D1000 and SV-D1000T Dimensions
For SV-D1000 units S/N 8082 and earlier, the depth dimension of the enclosure
(Dimension A: above) is 1.47 inches as stated above.
For SV-D900 units (all S/Ns) and SV-D1000 units S/N 8083 and later, and the depth
dimension of the enclosure (Dimension A: above) is 1.65 inches (same enclosure as
the SV-D1000T).
All other dimensions for all SV-D1000s, all S/Ns, are unaffected.
