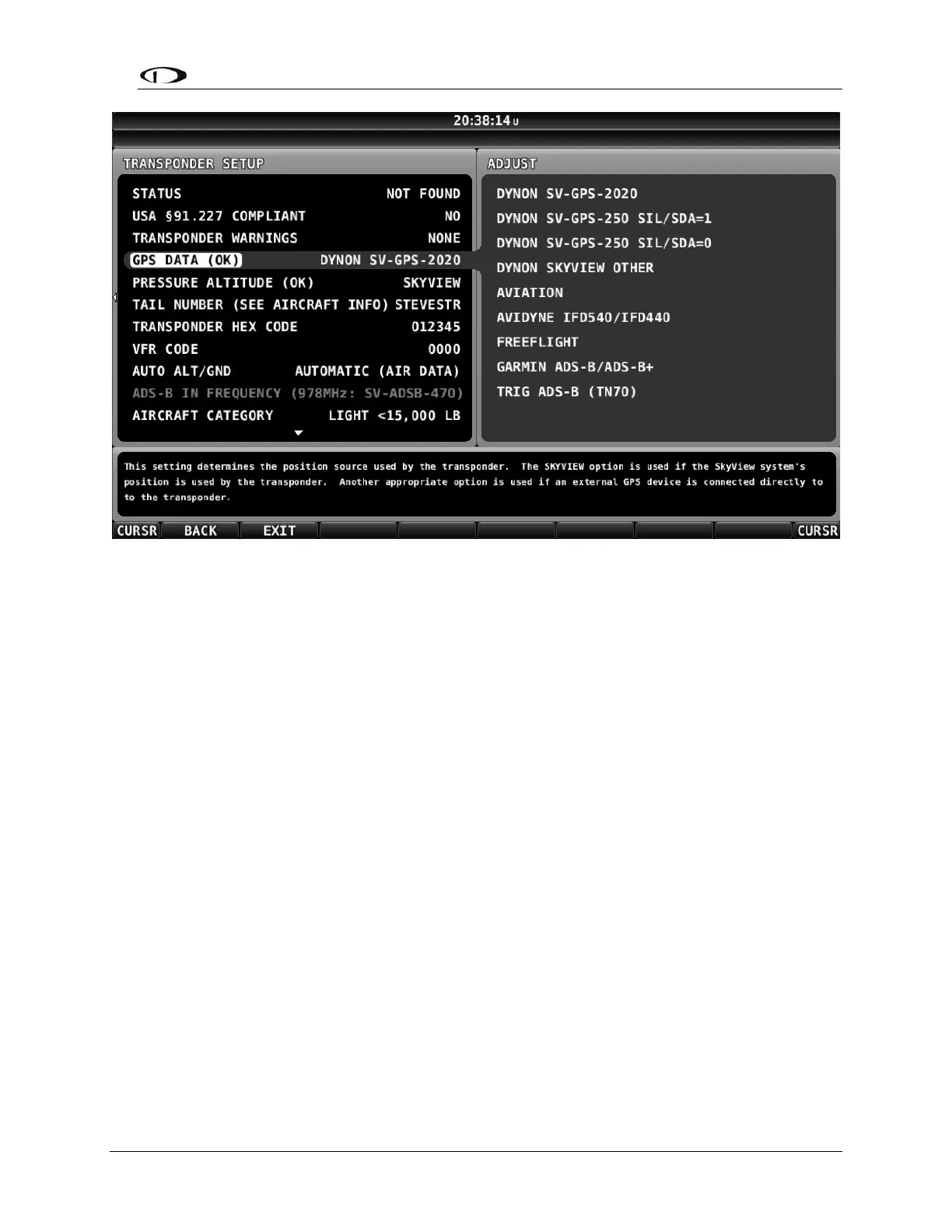

Figure 80: SV-XPNDR-261 GPS DATA Setup
o DYNON SV-GPS-2020:
▪ Select this option if you have an SV-GPS-2020 installed.
▪ The following ADS-B performance parameters will be transmitted:
• SDA: 2.
• SIL: 3.
• NACp: Dynamic, as reported by GPS.
• NIC: Dynamic, as reported by GPS.
• NACv: 1 (10m/s accuracy).
o DYNON SKYVIEW OTHER:
▪ Select this option if you have another type of GPS connected to your
SkyView system and you wish that GPS data to be transmitted as part
of ADS-B out transmissions.
▪ The following ADS-B performance parameters will be transmitted:
• SDA: 0 (Unknown integrity).
• SIL: 0.
• NACp: 8, 9 or 10. Dynamic, as reported by GPS.
• NIC: 8 (Containment radius <0.1 NM).
• NACv: 1 (10m/s accuracy).
