SV-ARINC-429 Module Installation and Configuration

SkyView HDX System Installation Manual - Revision E 13-9

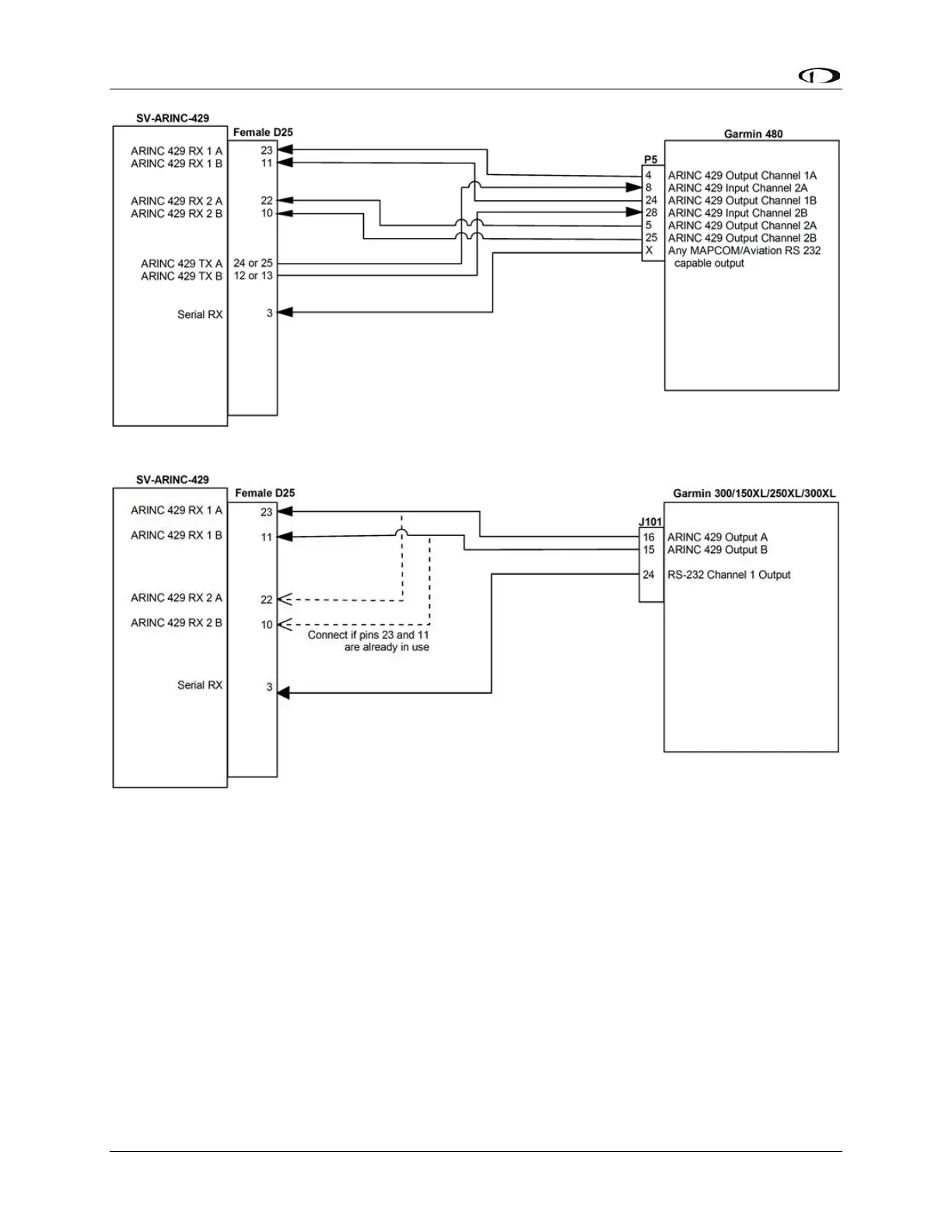

Figure 92: Garmin 480 SV-ARINC-429 Connections

Figure 93: Garmin 300/150XL/250XL/300XL SV-ARINC-429 Connections
