SkyView HDX Display Installation and Configuration

4-12 SkyView HDX System Installation Manual - Revision E

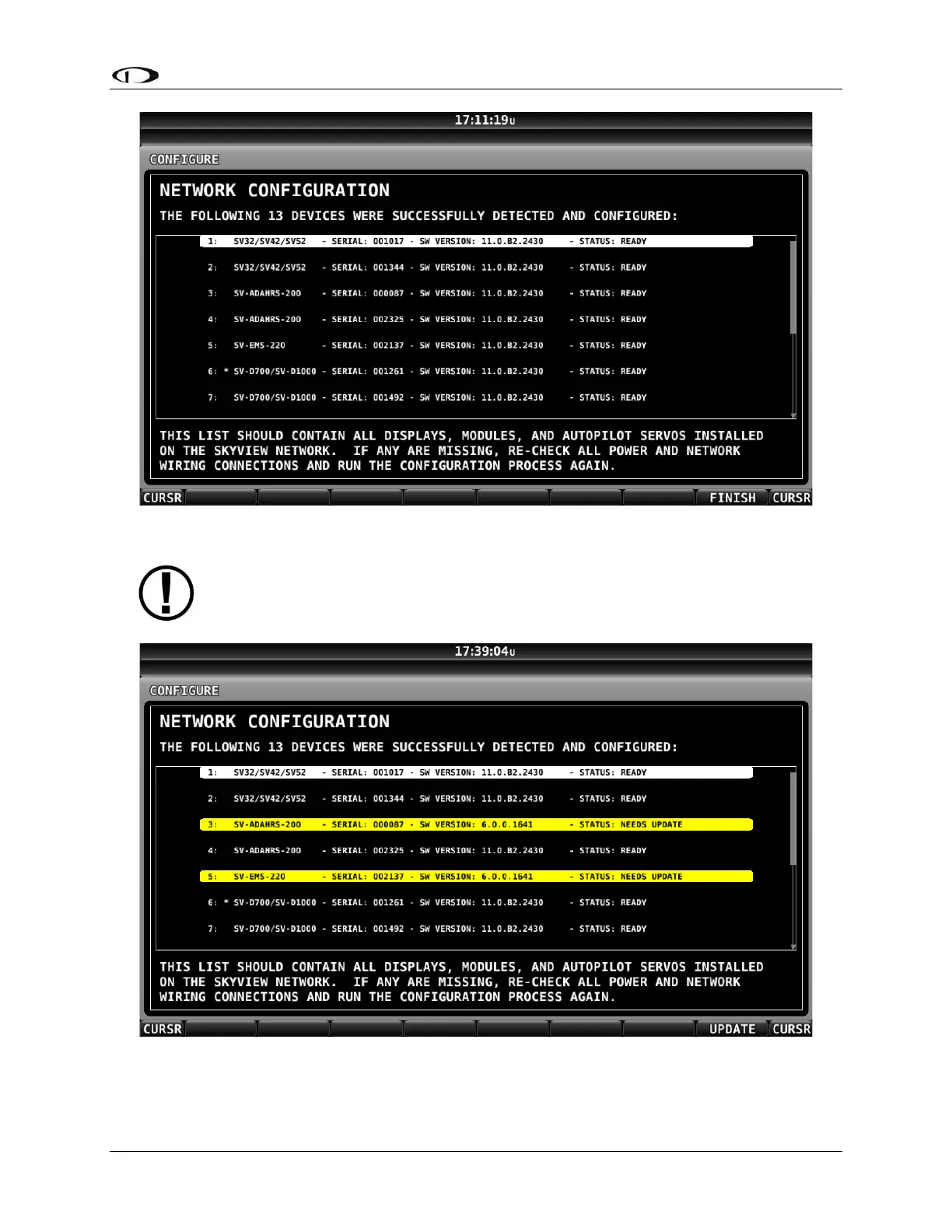

Figure 30: Successful SkyView Network Configuration Screen

If the SkyView network is successfully configured, but software versions on

equipment are not synchronized, you will see a screen that is similar to the

figure below.

Figure 31: SkyView Network Configuration with Software Update
