236 Solution Ultima 844/862/880 Installation Manual
The
Solution Ultima 880 control panel includes a feature called partitioning which can
effectively transform your single control panel and split the system into two separate areas. Normally
arming and disarming the system would turn the entire system on or off. However, when the
Solution Ultima 880 control panel has been partitioned, you may arm or disarm an individual
area without affecting the other area.
Partitioning is extremely useful when you wish to secure sheds, dual occupancy dwellings, granny
flats, shops and offices.
When partitioning, only the CP5 Area Addressable (CP500A) codepad and the CP5 Master
Partitioned (CP500P) codepad can be used.
CP5 Master Partitioned LED Codepad
This codepad is only used on the
Solution Ultima 880 control panel
when partitioned. The Master Partitioned LED codepad will allow the user
to operate both areas individually from the same codepad, without the need
to operate individual areas from separate codepads.
The codepad is the communications interface between you and your alarm
system. The codepad allows you to issue commands and offers both visual
and audible indications that guide you through the general operation.
The codepad incorporates numerous indicators. There are
ZONE indicators
that are used to show the condition of each zone and four others for general
status. The following is a list of situations and the relevant indications that
will be seen.

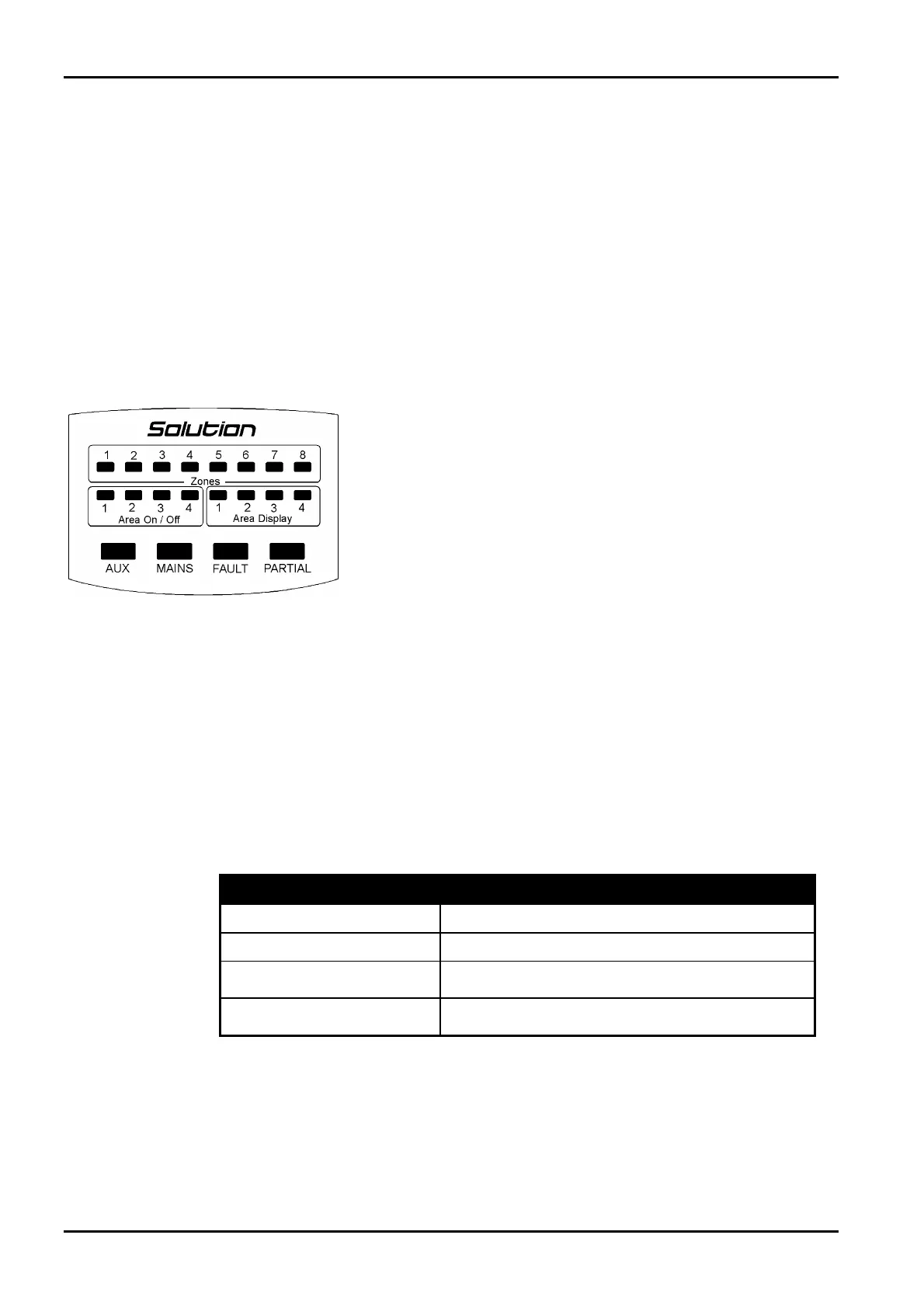

Figure 13: CP5 Master Partitioned LED
Codepad (CP500P)
The indicators on a CP5 Master Partitioned LED codepad are configured in to four groups. Following
is a description of what the indicators mean.
Zone Indicators
1
The ZONE indicators are used to display the status of the zones. The following table lists the various
circumstances that the indicators will display (i.e.. Zone Sealed, Zone Unsealed).
Indicator Definition
On
Zone Is Unsealed
Off
Zone Is Sealed
Flashing Fast
(0.25 Sec On – 0.25 Sec Off)
Zone Is In Alarm Condition
Flashing Slow
(1 Sec On – 1 Sec Off)
Zone Is Manually Isolated
Table 147: Zone Indicators
ISSUE162.DOC Electronics Design and Manufacturing Pty Limited
