Codepad Duress Alarm
A codepad duress alarm is used as a silent hold up alarm. This will only occur when the number 9is
added to the end of any valid user code that is being used to disarm the system. However, if a user
code has a priority level of arming only, entering their user code followed by 9 will still send a duress
alarm when the system is armed.
A duress alarm (Contact ID Event Code 121) is only useful if your system is reporting back to a
monitoring station or pocket pager as domestic reporting format can’t decipher which type of alarm
had occurred. If you wish to disable the codepad duress alarm report, refer to “LOCATION 348” on
page 190 for more information. If you require to activate a duress alarm by adding a number
3 to
the end of any valid user code being used to disarm the system, enable Option 2 in “LOCATION 442”
on page 233.
+
9
+
Codepad Panic Alarm
and 3 buttons
or bot
An audible codepad panic alarm will be activated when both the 1
h the and buttons are pressed simultaneously.
Refer to Option 1 in "LOCATION 437" on page 228 if you wish to program codepad
panic to be silent. If you wish to disable the codepad panic alarm report, refer to
“LOCATION 349 - 350” on page 190 for more information. A codepad panic alarm
will send a Contact ID Event Code 120 when reporting back to a base station
receiver.
1
+
3 or
+
Codepad Fire Alarm
An audible codepad fire alarm will be activated when both the 4and 6buttons on
the remote codepad are pressed simultaneously. A distinct fire sound is emitted
through the horn speaker to indicate this type of alarm condition. The fire sound is
different to the burglary sound.
Refer to Option 2 in "LOCATION 437" on page 228 if you wish to program codepad
fire to be silent. If you wish to disable the codepad fire alarm report, refer to
“LOCATION 351 - 352” on page 191 for more information. A codepad fire alarm
will send a Contact ID Event Code 110 to a base station receiver.

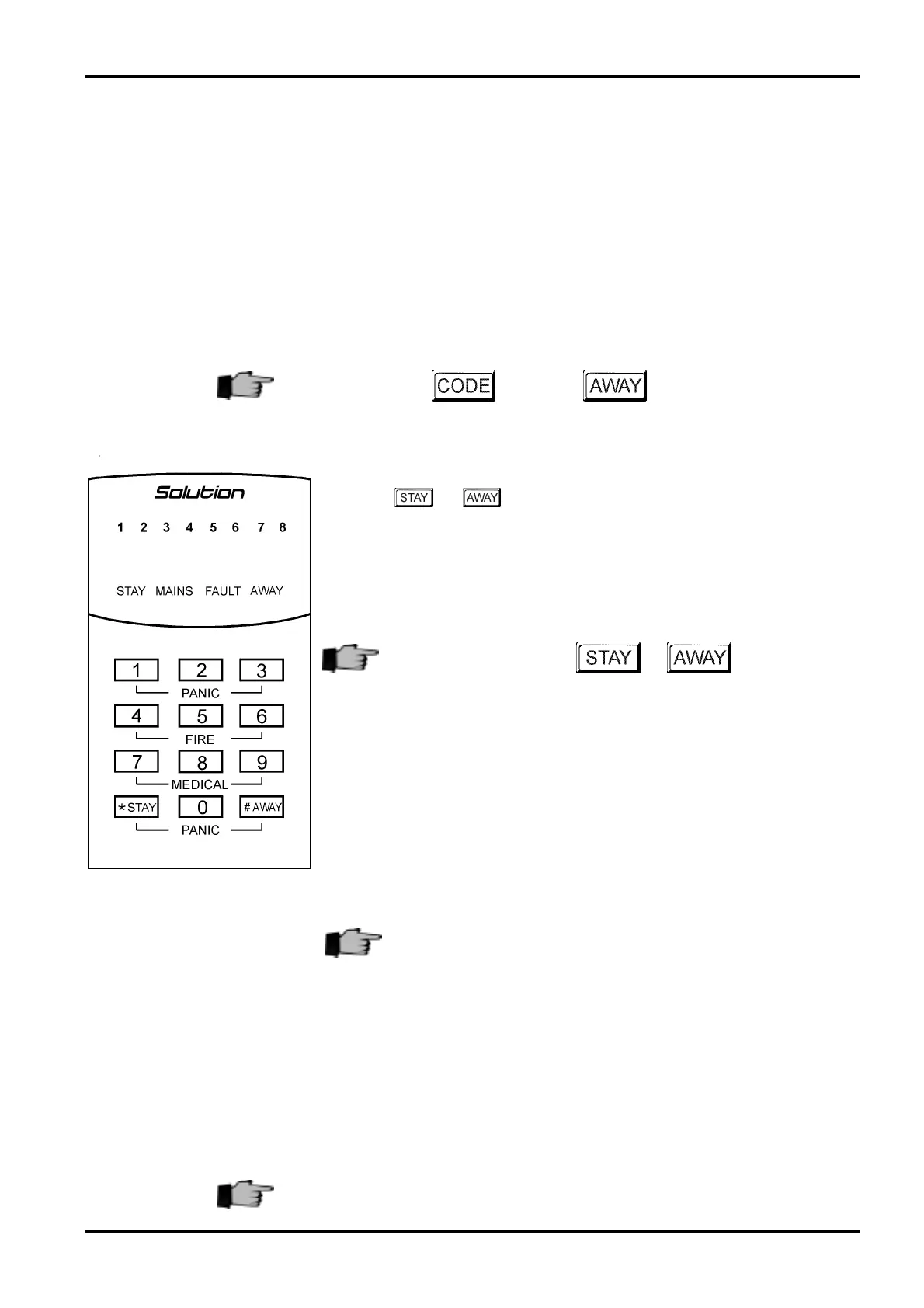

Figure 4: CP5 LED Codepad
Showing Audible Alarm Buttons
4
+
6
Codepad Medical Alarm
An audible codepad medical alarm will be triggered when both the 7 and 9 buttons on the remote
codepad are pressed simultaneously.
Refer to Option 4 in "LOCATION 437" on page 228 if you wish to program codepad medical to be
silent. If you wish to disable the reporting of the codepad medical alarm report, refer to “LOCATION
353 - 354” on page 191 for more information. A codepad medical alarm will send a Contact ID Event
Code 100 to a base station receiver.
7
+
9
